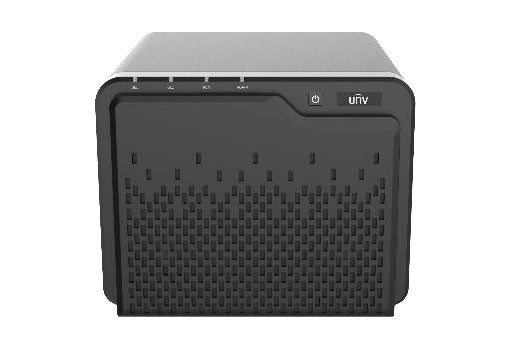

DX204

Name: DX204
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specification

Model	DX204
OS	Embedded Linux
CPU	Intel quad-core X86_64 processor
RAM	4GB DDR4, dual SO-DIMM slots, expandable to 32GB
HDD	4 * SATA3.0 slots, compatible with 3.5-inch or 2.5-inch SATA HDD/SSD
Network interface	2GE, 1PCIe 3.0 for expansion to 10Gigabit network
HDMI	1, resolution up to 4096 x 2160@60Hz
USB	2*USB3.0
M.2 HDD slot	2 (NVMe), with one slot supporting SATA3.0
EMMC	8GB (standard)
Video storage performance	64*2Mbps
Access protocol	Supports Onvif cameras.
Dimensions	226mm (L) × 246mm (W) × 186mm (H)
Weight	3.6 kg (without HDD)
Power consumption	33W (with HDD fully configured)
Noise	Room temperature 25°C≤31dB(A) Within the environment’s highest specified limit ≤39.4dB(A) (low power operation mode)
Operating temperature	0°C to +45°C
Storage temperature	-20°C to +70°C
Operating humidity	5% to 95% (non-condensing)
Storage humidity	5% to 95% (non-condensing)
