Uniview
IPC6312LFW-AX4C-VG

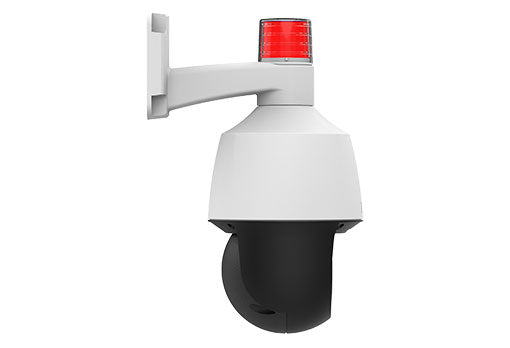

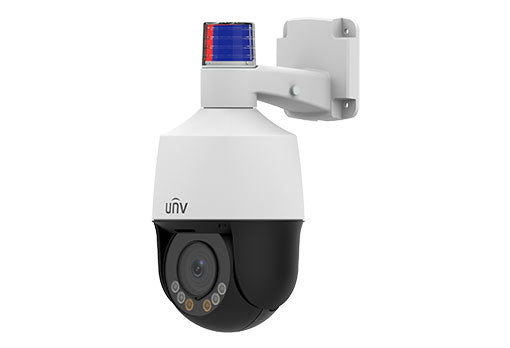

2MP LightHunter Active Deterrence PTZ Camera
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
Description
2MP LightHunter Active Deterrence PTZ Camera
• High quality image with 2MP, 1/2.7"CMOS sensor
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Built-in Mic & Speaker
• Smart IR, Up to 50 m (164 ft) IR distance and 10m (33 ft) warm light distance
• Micro SD, up to 256GB
• IP66 protection
• DC12V or PoE (IEEE 802.3af) power supply
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Built-in Mic & Speaker
• Smart IR, Up to 50 m (164 ft) IR distance and 10m (33 ft) warm light distance
• Micro SD, up to 256GB
• IP66 protection
• DC12V or PoE (IEEE 802.3af) power supply
Specification
| IPC6312LFW-AX4C-VG | |||||
| Camera | |||||
| Sensor | 1/2.7" progressive scan, 2.0 megapixel, CMOS | ||||
| Min. Illumination | Colour: 0.002Lux (F1.6, AGC ON) 0Lux with IR on |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
| WDR | 120dB | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens type | 2.8~12mm，AF automatic focusing and motorized zoom lens | ||||
| Optical Zoom | 4 | ||||
| Iris | Fixed; F1.6 | ||||
| Field of View (H) | 105.2° ~ 29.32° | ||||
| Field of View (V) | 52.6° ~ 16.38° | ||||
| Field of View (D) | 108.7° ~ 33.3° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8mm | 43.4 (142.4ft) | 17.4 (57.1ft) | 8.7 (28.5ft) | 4.3 (14.1ft) | |
| 12mm | 186.2 (610.9ft) | 74.5 (244.4ft) | 37.2 (122.1ft) | 18.6 (61.0ft) | |
| Illuminator | |||||
| IR Range | Up to 50m (164ft) | ||||
| Warm Light Range | Up to 10m (33ft) | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps ~ 16 Mbps | ||||
| ROI | Support | ||||
| Video Stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Intelligent | |||||
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
| People Counting | Support people flow counting and crowd density monitoring | ||||
| Events | |||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | ||||
| Auto Tracking | Support | ||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8 kHz | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | EZStation EZLive EZView |
||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Pan & Tilt | |||||
| Pan Range | 0° ~ 345° | ||||
| Pan Speed | 0.1°/s ~ 50°/s | ||||
| Preset speed: 50°/s | |||||
| Tilt Range | -10° ~ 110° | ||||
| Tilt Speed | 0.1°/s ~ 40°/s | ||||
| Preset speed: 40°/s | |||||
| Number of Presets | 256 | ||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||
| Patrol Stay Time | 120s~1800s | ||||
| Home Position | Support | ||||
| Interface | |||||
| Built-in Mic | Support | ||||
| Built-in Speaker | Support | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Alarm Light | Support | ||||
| Certification | |||||
| EMC | CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | ||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||
| General | |||||
| Power | DC12V(±25%), PoE (IEEE 802.3af) | ||||
| Power consumption: MAX 15W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø x H) | Φ133mm*269mm (Φ5.2”x 10.6”) | ||||
| Weight | 0.87 kg (1.92lb) | ||||
| Working Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) | ||||
| Storage Environment | -40°C ~ 70°C (-40°F to 158°F), Humidity:≤95% RH(non-condensing) | ||||
| Surge Protection | 2KV | ||||
| Reset Button | Support | ||||
