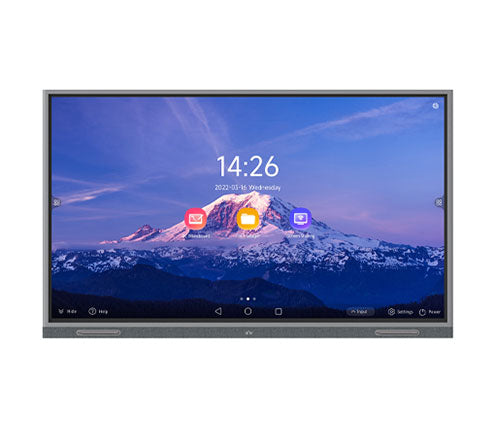

MW3575-U-E
MW3575-U-E
Ultratech

MW3575-U-E

Available:
Only 20 items in stock
20 items in stock
In stock
Out of stock
Back in stock
  • Description

Specification

Panel Description
Backlight DLED backlight
Panel size 75 inches
Resolution 3840*2160
Brightness (cd/m²) 350
Contrast Ratio 1200:1
Response Time (ms) 8
Color Support 1.07B
Viewing Angle (H/V) 178°/178°
System Description
CPU RK3588: 4-core A76 (2.4G) + 4-core A55 (1.8G)
CPU Frequency 2.4GHz
RAM/ROM DDR4: 8GB  eMMC: 64GB
System Compatibility Android 12.0
Touch Description
Touch Control Infrared touch screen, 20-point multi-touch at most
Touch Precision (mm) ±1
Recognizable Object 5 points 2mm
Glass 4mm tempered glass, level 7 on Mohs hardness scale, anti-glare
Touch Response Time (ms) ≤10
Touchscreen Input Opaque objects (e.g. finger, pen, etc.)
Interface Description
Video Input 3*HDMI IN (4K@60)
Video Output 1*HDMI OUT (4K@60)
Audio Input 1*AUDIO IN
Audio Output 1*AUDIO OUT
Other Interfaces 1*RS232、3* USB 3.0、1* USB Type C、1* USB Type B
Network 2*RJ 45,10M/100M/1000M adaptive Ethernet Interfaces
Audio Description
Frequency domain 80Hz～20kHz
Speaker Left channel 17W: 1*treble (8Ω 5W) + 2*bass (4Ω 6W)
Right channel 17W: 1*treble (8Ω 5W) + 2*bass (4Ω 6W)
Wi-Fi Description
WiFi Configuration Wi-Fi6 + Wi-Fi5 dual-module, supports 5G/2.4G
WiFi Performance 30 m² coverage, 20m transmission distance in open space
Bluetooth Description
Bluetooth Version 5.2
Bluetooth Performance 10m transmission distance in open space
OSD Description
Multi-Language 24 (Simplified Chinese、Traditional Chinese、English、Japanese、Arabic、French、Spanish、Portuguese、German、Italian、Dutch、Polish、Korean、Catalan、Galician、Vietnamese、Bulgarian、Kazakh、Russian、Ukrainian、Thai、Uzbek、Hungarian、Croatian)
VESA Description
Wall mount hole (mm) 600*400
Wall mount screw 4-M8 screw hole
General Description
Power Supply AC 100 to 240V, 50/60Hz
Overall Power Consumption （W） ≤320 (on without OPS)
Standby Power Consumption （W） ＜0.5
Product Dimensions （W*H*D）（mm） 1720*1035*89
Package Dimensions （W*H*D）（mm） 2115*1336*222
Weight（Kg） Net weight: 50.0
Gross weight:58.8
Operating Temperature 0 to 50°C
Operating Humidity 10% to 90% (non-condensing)
Storage temperature -20 to 60°C
Storage humidity 0% to 95% (non-condensing)
Accessories Included 1*power cord、2*touch pen、1*quick guide
