Uniview

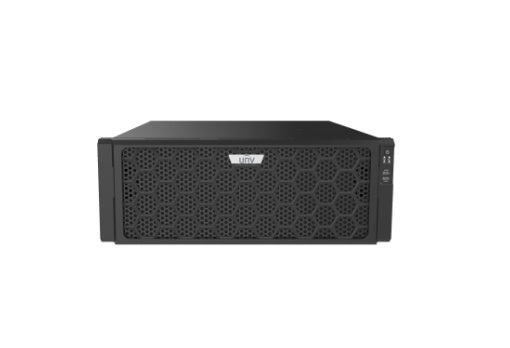

NVR524-E Series

Name: NVR524-E Series
Brand: Uniview
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Network Video Recorder

Contact Now

DataSheet PDF

Description
Reviews

Specification

Support Ultra 265/H.265/H.264 video formats
128/256‑channel input
Third‑party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Support 2‑ch HDMI, 2‑ch VGA, HDMI1 at up to 8K(7680x4320) resolution
HDMI1/ VGA1 and HDMI2/VGA2 independent outputs provided
Up to 32 Megapixels resolution recording
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
Support 12V power output
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Support N+1 Hot spare
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Decoding	Description
DecodingFormat	Ultra 265, H.265, H.264
DecodingCapability	2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30, 128 x D1
AudioCompression	G.711A, G.711U
Network	Description
IncomingBandwidth	640Mbps
OutgoingBandwidth	640Mbps
Protocols	TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6
Browser(Plugin)	Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInput	Description
IPVideoInput	NVR524‑128E:128‑ch NVR524‑256E:256‑ch
RCAAudioInput	1‑ch
Video/AudioOutput	Description
VideoOutput	Support 2‑ch HDMI, 2‑ch VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output, VGA1/HDMI1 and VGA2/HDMI2 independent output
HDMIOutput	HDMI1: 8K(7680x4320)/30Hz, 4K(3840x2160)/60Hz, 1920x1080/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI2: 4K(3840x2160)/60Hz, 1920x1080/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGAOutput	VGA1,VGA2: 1920x1080/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCAAudioOutput	2‑ch
LiveviewDisplay	1/4/6/8/9/16/25/36/64
CorridorModeScreen	3/4/5/7/9/10/12/16/32
Two-wayAudio	Description
Two-wayAudio	1‑ch, RCA(Using the audio input and output)
Snapshot	Description
FTP/Schedule/EventSnapshot	16‑ch snapshot, up to 4K resolution
Recording	Description
RecordingResolution	32MP/16MP/12MP/8MP/6MP/5MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocal	16‑ch
Smart	Description
VCADetectionbyIPC	Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring
VCASearch	Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map
SmartbyIPC	All channels (up to 32 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Alarm	Description
GeneralAlarm	Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection;People Present Alarm
AlertAlarm	IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;Array Damaged;Array Degraded
GUILanguage	Description
GUILanguage	/
HardDisk	Description
SATA	24 SATA Interfaces
Capacity	Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
DiskArrayType	RAID 0, 1, 5, 6, 10, 50, 60
HotSwap	Support
ExternalInterface	Description
NetworkInterface	2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USB	Front panel: 2 x USB2.0;Rear panel: 2 x USB3.0
RS485	1
RS232	1
AlarmIn	16‑ch
AlarmOut	10‑ch
eSATA	1
PowerOutput	12V
PowerSupply	AC 100 ～ 240 V
PowerSwitch	Support
WorkingEnvironment	Description
WorkingTemperature	‑10 °C ~ 55 °C (14 °F ~ 131 °F)
WorkingHumidity	≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD)	≤ 50W
Dimensions	Description
Weight(withoutHDD)	≤ 10Kg (22.05lb)
Dimensions	485mm × 539mm × 175mm (19.1"×21.2"×6.9")
Certification	Description
Certification	CE, FCC, RoHS, WEEE
CE	EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC	Part15 Subpart B
