OEA-ML22-280

Name: OEA-ML22-280
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Description

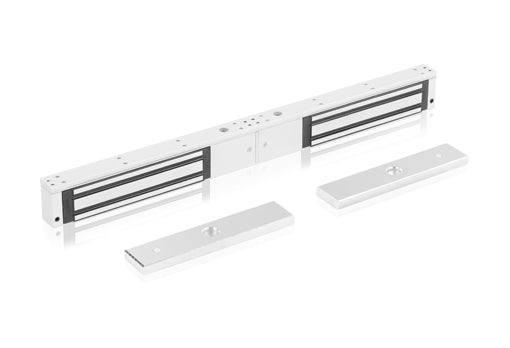

Double Door Magnetic Lock (280KG)

280kg holding force.

MOV surge protection.

No residual magnetism, abrasion resistant.

Solid aluminum alloy housing.

Double-insulated lock body.

Tamper-proof screws, stable and safe.

Parameter	Description
Operating voltage	DC12V/DC24V
Operating current	460mA2/230mA2
Holding force	280kg
Signal output	Lock status signal output
Door support	Wooden door, glass door, metal door, etc.
Operating environment	Operating temperature: -30°C to +60°C; operating humidity: ≤95%
Dimensions (L×W×D)(mm)	Lock housing:500×47.7×27.5; armature plate: 180×38×11.7
Operation mode	Failsafe
Weight	4kg
Attestation	CE/FCC/ROHS
