OEU-201B-HMK-W

Name: OEU-201B-HMK-W
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Description

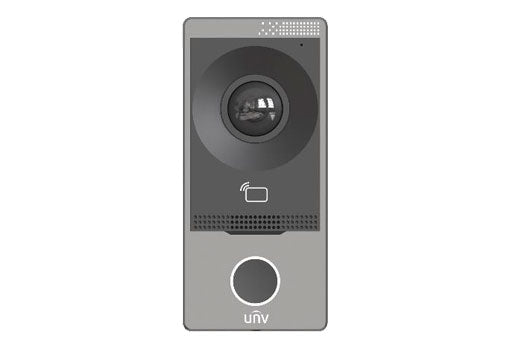

Villa Outdoor Station

Front panel: Plastic cement

Supports batch configuration

Supports intercom calls to associated indoor units or APPs

Support monitoring function, security alarm, tamper alarm

Support Wi-Fi

Built-in IC card reader

Parameter	Description
Power	DC 12V±25% input
Card capacity	2000
Operation system	Linux
Supplement light	IR light(Adaptive infrared compensation)
WDR	Support
FOV	Horizontal:124.3° Vertical:67.5° Diagonal:147.2°
Power consumption	＜10W
Volume adjustment	Adjustable
Audio quality	Noise suppression,echo cancellation and AGC
Audio input	1 built-in omnidirectional microphone
Audio output	1 built-in speaker
Audio compression standard	PCM,G711,MP3
Audio compression bitrate	128Kbps
Protocol	UNV private protocol
Button	1 physical button
Protection level	IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.) IK08
Weight	0.261Kg
Linked indoor station capacity	20
Mount method	Wall mounted, flush installation
Interface	Power 1, network port 1, WIFI, RS485, door lock interface 2, IO input 4
Network	100Mbps network port, supports IEEE802.3af PoE power supply
Dimensions (L×H×W)	78mm×170mm×34mm
Operating environment	﹣30℃~﹢60℃,10%～90%, non-condensing, outdoor
