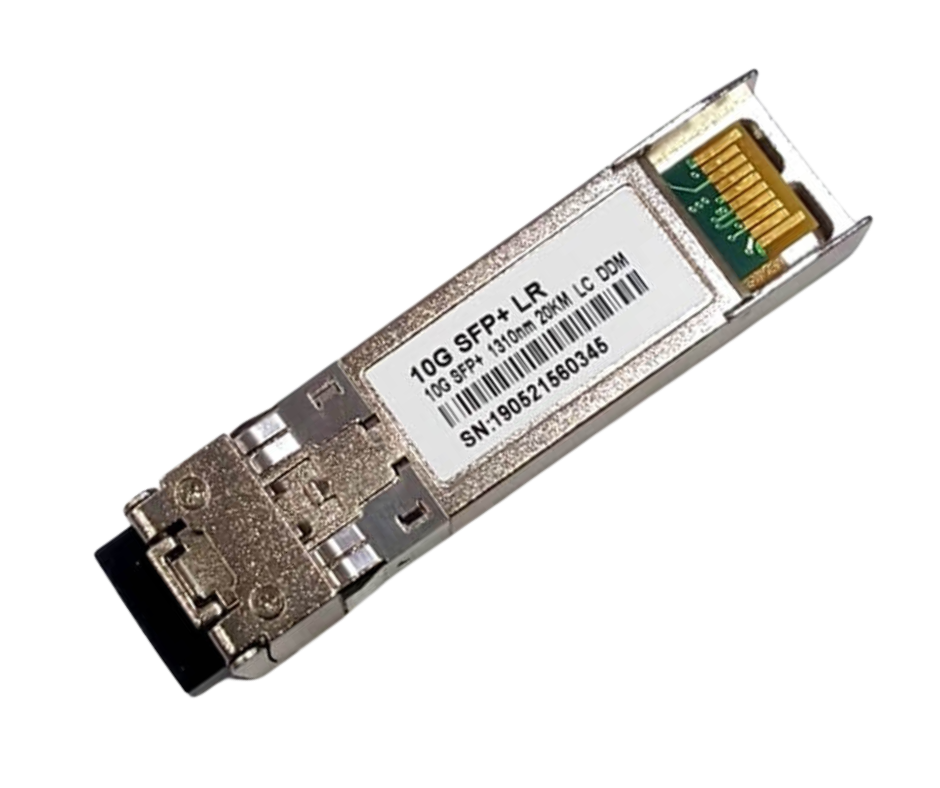

Cisco SFP-10G-LR-S Compatible 10GBASE-LR SMF 1310nm 10km SFP+ Optical Transceiver Module
Additionally, this SFP+ transceiver module also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472, which providing real-time monitoring of the transceiver optics temperature, laser bias current, optical power, received optical power and transceiver optics supply voltage. The transceiver is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Features
• Hot-pluggable SFP+ footprint
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
• 1310nm DFB transmitter, PIN photo-detector
• Distance up to 10km on single mode fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Metal enclosure, for lower EMI
• ROHS compliant and lead-free
Specification
OEM Part Number SFP-10G-LR-S Optcore Part Number OSP10G-3110DCR-CSC
Form Factor SFP+ Data Rate 10Gb/s
Wavelength 1310 nm Fiber Type SMF
Max Distance 10 km Optical Components DFB/PIN
Transmitter Power -6 ~ 0 dBm Extinction ratio > 3.5 dB
Receiver Sensitivity < -14.4 dBm Receiver Overload > 0.5 dBm
Connector Duplex LC Digital Diagnostic Monitoring Yes
Environment Operating: 0°C to 70°C
Storage: -40°C to 85°C Weight 0.03 kg
Application 10GBASE-LR/10GBASE-LW Ethernet 10G Fiber Channel
10GbE Data Center Switches and Routers
Compliance IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11 RoHS
