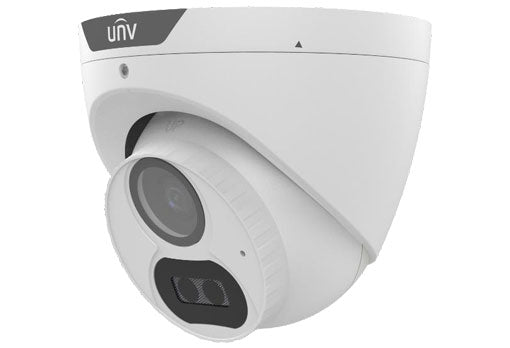

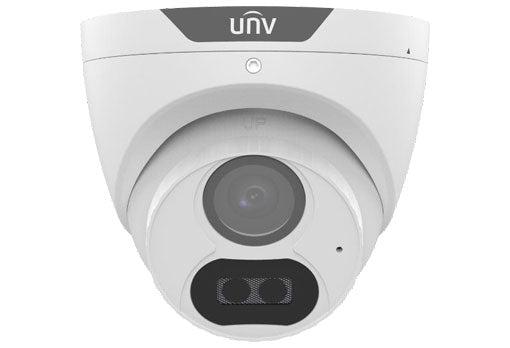

UAC-T124-AF28(40)LM

Name: UAC-T124-AF28(40)LM
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specification

Model	UAC-T124-AF28LM	UAC-T124-AF40LM
Sensor
Pixel	4MP
Size	1/3"
Minimum illumination	0.005 lux (F1.6, AGC ON) 0 lux (IR on)
Lens
Lens	2.8mm	4.0mm
Lens mount	M12
Angle of view	H: 97.7° V: 54.9° D: 111.9°	H: 81.1° V: 41.0° D: 94.4°
Illuminator
Illuminator	Two IR illuminators
Illumination distance	40m
Lifetime	≥60,000 hours
Video
Resolution	4MP: 2560(H) × 1440(V) 1080P: 1920(H)×1080(V)
Frame rate	TVI/AHD/CVI: 4MP@25fps (default), 4MP@30fps,1080P@25fps, 1080P@30fps CVBS: PAL, NTSC
Shutter time	PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s
Exposure mode	Four modes: Global (default), BLC, HLC, DWDR
Day/Night	Three modes: Auto (default), Day, Night
Digital noise reduction	2D
White balance	Two modes: Auto (default), Manual
WDR	DWDR
Smart IR	Support
Flip	Supports 180° horizontal flip, 180° vertical flip
Audio
Microphone	Built-in Mic
Camera audio	TVI: 4MP@25fps, 4MP@30fps,1080P@25fps, 1080P@30fps CVI: 4MP@25fps, 4MP@30fps
Interface
Power	5.5mm power interface
Video output	BNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature	-30°C to 60°C (-22°F to 140°F)
Humidity	≤95% (RH, non-condensing)
Surge protection	4kV
Ingress protection	IP67
General
Power	DC 12V (±25%), with reverse polarity protection, Max 3.5W
Mount	Surface mount (default), optional backbox, wall mount bracket
Dimensions	Φ111mm98mm (diameterheight)
Material	Metal+Plastic
Weight	334g (0.74lb)
Certification	CE, FCC, UL
