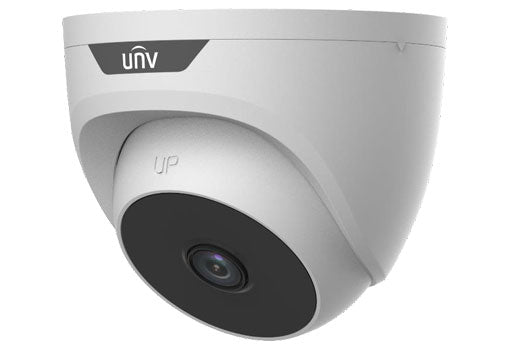

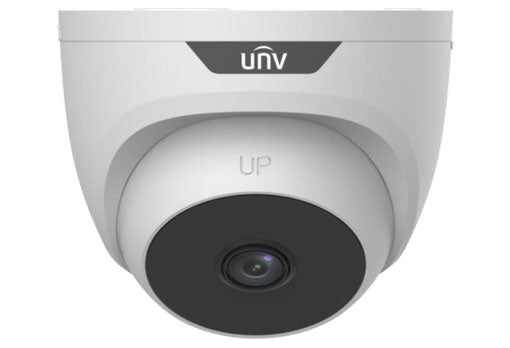

UAC-T132-F28(40)

Name: UAC-T132-F28(40)
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specification

Model	UAC-T132-F28	UAC-T132-F40
Sensor
Pixel	2MP
Size	1/3.2"
Minimum illumination	0.02 lux (F2.0, AGC ON) 0 lux (IR ON)
Lens
Lens	2.8mm	4.0mm
Lens mount	M12
Angle of view	H: 99.7° V: 55.1° D: 117.1°	H: 87.7° V: 47.6° D: 106.9°
Illuminator
Illuminator	One IR illuminator
Illumination distance	20m
Lifetime	≥60,000 hours
Video
Resolution	1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
Frame rate	TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Shutter time	PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s
Exposure mode	Four modes: Global (default), BLC, HLC, DWDR
Day/Night	Three modes: Auto (default), Day, Night
Digital noise reduction	2D/3D
White balance	Two modes: Auto (default), Manual
WDR	DWDR
Smart IR	Support
Flip	Supports 180° horizontal flip, 180° vertical flip
Defog	N/A
Audio
Microphone	N/A
Camera audio	N/A
Interface
Power	5.5mm power interface
Video output	BNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	≤95% (RH, non-condensing)
Surge protection	4kV
Ingress protection	N/A
General
Power	DC 12V (±25%), with reverse polarity protection, Max 1.9W
Dimensions	Φ85mm72mm (diameterheight)
Material	Plastic
Weight	89.3g (0.20lb)
Certification
EMC	CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
