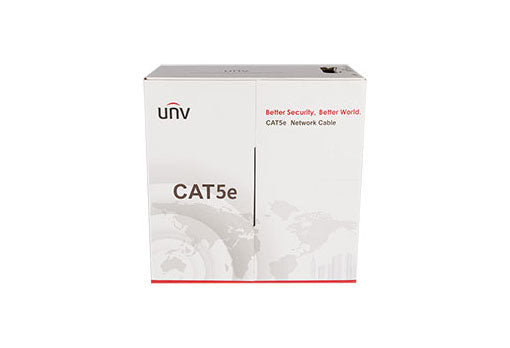

UTP Category 5E Cables
UTP Category 5E Cables
Ultratech

UTP Category 5E Cables

Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
  • Description

Specifications

Product model CAB-LC2100A-IN/CAB-LC2100B-IN
Product specification HSYV-5e 4×2×0.50
Test Standard YD/T1019-2013
Conductor Material OFC(Oxygen free copper)
AWG 24
Nom.O.D.(mm) 0.5±0.005 mm
DC resistance ≤95 Ω/km
Insulation Material HDPE
Thickness 0.2±0.02 mm
Diameter 0.9±0.05 mm
Color Blue/White- Blue Green/White-Green
Orange
/White-Orange		 Brown/White-Brown
Pitch Offset pitch ≤25 mm
Electrical Characteristics:
Frequency Characteristic impedance RL ATT NEXT
MHz ohm ≥dB/100m ≤dB/100m ≥dB/100m
1 100±15 20.0 2.0 65.3
4 100±15 23.0 4.1 56.3
10 100±15 25.0 6.5 50.3
16 100±15 25.0 8.2 47.3
20 100±15 25.0 9.3 45.8
31.25 100±15 23.6 11.6 42.9
62.5 100±15 21.5 17.0 38.4
100 100±15 20.1 22.0 35.3

Frequency FEXT PS NEXT PS FEXT Phase delay
MHz ≥dB/100m ≥dB/100m ≥dB/100m ≤ns/100m
1 63.8 62.3 60.8 570.0
4 51.7 53.3 48.7 552.0
10 43.8 47.3 40.8 545.4
16 39.7 44.2 36.7 543.0
20 37.7 42.8 34.7 542.0
31.25 33.9 39.9 30.9 540.4
62.5 27.8 35.4 24.8 538.6
100 23.8 32.3 20.8 537.4
Cable pitch ≤140 mm
Sheath Material PVC(complies RoHS/REACH)
External O.D. 5.1±0.3 mm
Color Gray(RAL7046)
Tensile strength >13.5 Mpa
Thickness 0.55±0.05 mm
Surface Printing Letter height 3.0±0.3 mm
Color Black
Print error & Space 1±0.005 m
Case number Yes
Packing Packing Carton
Once packing dimension 350mm*216mm*350mm
Twice packing dimension 370mm*460mm*370mm
Twice packing quantity 2 cases
Packing length 305±1 m
Rip-cord Yes
Ambient temperature -20℃～60℃
