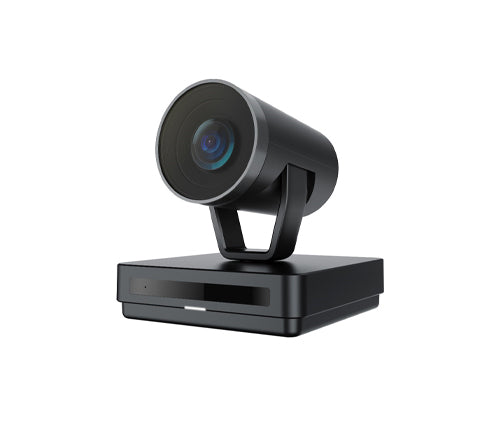

V5000X

Name: V5000X
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specification

Camera Specs
Aperture	F 1.8~2.8
Sensor	1/2.8 in, CMOS, the maximum pixel is 8MP
Focusing mode	5x optical zoom + 3x digital zoom
FOV(V)	Wide 53° tele12.8°
FOV(H)	Wide 85°tele22°
FOV(D)	Wide 95°tele27.4°
Non-Distortion Lens	Supported
Video Specs
Anti-flickering	Supported
Auto exposure	Supported
Auto White balance	Supported
HDR	Supported
3D noise-suppression	Supported
Max. resolution	UHD[4K]
Aspect ratio	16:09
Coded format	YUV: max to 480P@30fps MJPEG: max to1080P@30fps H264: max to2160P@30fps
PTZ Specs
Horizontal rotation range	±175°
Vertical rotation range	±30°
Horizontal rotation speed range	1.7° ~ 100°/s
Vertical rotation speed range	0.7° ~ 28°/s
Flip horizontally and vertically	Supported
Preset Function	4 presets
Preset position accuracy	0.5°
Interface
POWER	DC round mouth 5.5/2.1mm
USB	USB2.0 Type-C
HDMI	HDMI
Network port	RJ45(pay for NDIprotocol）
Configuration Requirements
PC Windows or Linux, Mac OS	Supported
Input / Output
Power supply	DC 12V/1.5A
Data Transmission over USB Type-C	Supported
USB 2.0	Supported
Installation Method
TV stand (optional) / wall mount (optional)/tripod(optional)	Supported
