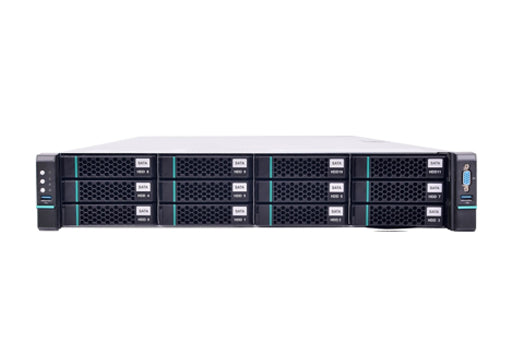

VS-R5220-B2T

Name: VS-R5220-B2T
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specification

Parameters	Description
Processor	Intel® 4210 Xeon*2
RAM	Standard 32G*2, total 16 slots
Management	1 independent 1000Mbps network interface for IPMI remote management
Network interface	GE*2, supports OCP or PCIe network interface expansion
USB	5*USB 3.0 (3 back, 2 front)
Video interface	2*VGA interfaces (1 back, 1 front)
HDD bays	12 (standard), expandable to 12 2.5/3.5-inch SAS/SATA/SSD HDD (directly connected to backplane)
Standard HDD	4T SATA HDD*1
Front HDD expansion	12*2.5/3.5-inch SAS/SATA/SSD HDD (directly connected to backplane)
PCIE card slots	6*PCI-E 3.0 slots
Built-in RAID controller	1 (sold separately)
Power supply	1＋1 redundancy
Dimensions	87mm(H)x438mm(W)x735mm(D)
Power input	220V AC 240V DC
Weight	27KG (fully loaded)
Environment temperature	Operating: 10°C to 35°C Non-operating: -40°C to 55°C
Relative humidity	Non-operating: 95% (noncondensing at 25°C to 30°C)
