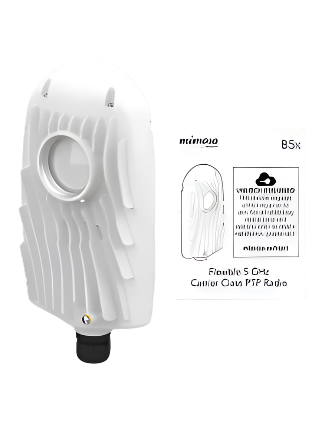

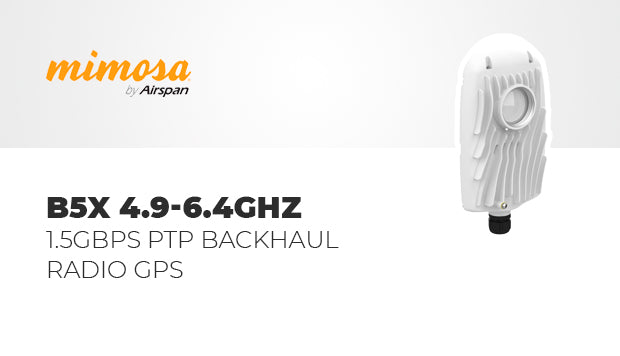

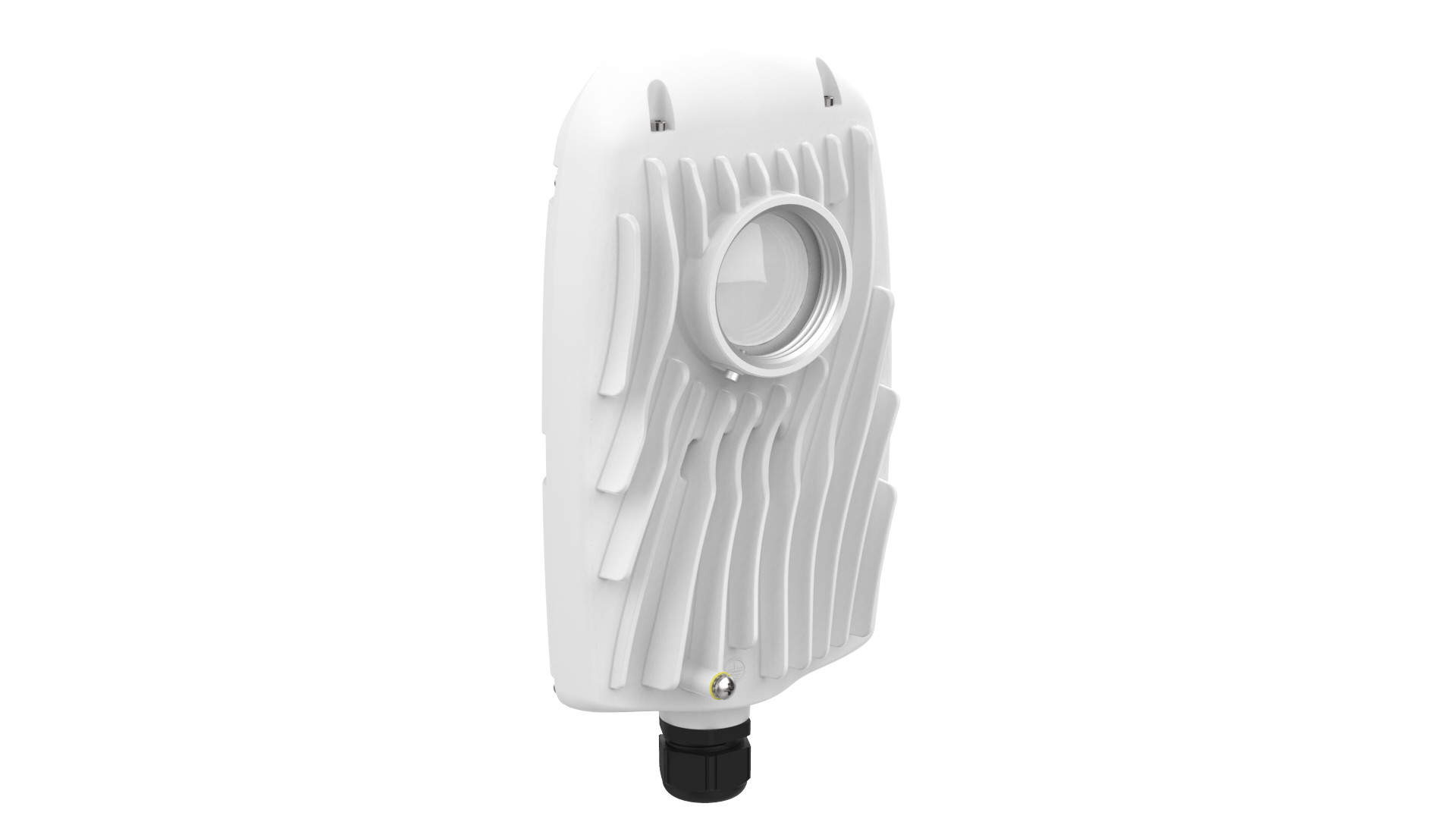

Mimosa
B5x
The Mimosa B5x is one of the industry’s fastest unlicensed, point-to-point (PTP), backhaul solutions. It’s ideal for short to medium range relay and tower links, custom-engineered collocation, and licensed 4.9 GHz spectrum. It’s modular, with the ability to connect X-series compatible twist-on antennas (12 dBi horn, 16 dBi horn, 20 dBi dish, 25 dBi dish, or 30 dBi dish).
Available:
Only 20 items in stock
20 items in stock
In stock
Out of stock
Back in stock
- Description
- Reviews
B5x Specifications
| Performance | |
| Max Throughput | Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY) |
| Low Latency | <1 ms in auto mode |
| Wireless Protocols | Fixed TDMA and TDMA-FD (Frequency Diversity) with 75:25, 67:33, or 50:50 traffic ratios with 2, 4, or 8 ms timeslots; Auto-TDMA |
| Radio | |
| MIMO & Modulation | 4x4:4 MIMO OFDM up to 256QAM |
| Bandwidth | Single or dual 20/40/80 MHz channels; Regulations vary by region |
| Frequency Range | 4.90–6.40 GHz; Restricted by country of operation |
| Max Output Power | 30 dBm (1x mode, i.e. single freq) 27 dBm (2x mode, i.e. dual freq) |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Power | |
| Max Power Consumption | 20 W |
| System Power Method | 48 VDC passive isolated PoE injector |
| System Lightning & ESD Protection | 6 kV |
| PoE Power Supply | (not included): 50 VDC passive Gigabit PoE injector |
| Physical | |
| Dimensions | Height: 241 mm (9.5”) Width: 139 mm (5.5”) Depth: 76 mm (3.0”) |
| Weight | 1.4 kg (3.1 lbs) without mount |
| Enclosure Characteristics | Die-cast aluminum |
| Wind Survivability | 200 km/h (125 mph) |
| Mounting | 2 standard pole straps required (not included); Compatible with FlexiMount XL |
| Environmental | |
| Outdoor Ingress Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14500') maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000-BASE-T |
| Dual Link Operation: | 2 independent dual-stream radios operating on non-contiguous frequencies; Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM |
| Management Services | Mimosa management; SNMPv2 & Syslog legacy monitoring; HTTPS; HTML 5 based Web UI |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact); Dynamic auto-optimization of channel and bandwidth use |
| Security | 128-bit AES PSK with hardware acceleration |
| QoS | 4 classes of QoS, with user configurable priority queuing, weighted fair queuing, MIR, CIR, and rate limiting |
| GPS Location | GNSS-1 (GPS + GLONASS) |
| Colocation Synchronization | 1PPS GPS TX/RX synchronization for colocated co-channel radios Adjustable up/downstream bandwidth ratio |
| Regulatory + Compliance | |
| Approvals | FCC Part 15.407, IC RSS210, CE, ETSI 301 893/302 502 |
| RoHS Compliance | Yes |
| Safety | EN 62638-1, CAN/CSA C22.2 No. 62368-1 |
