Mimosa

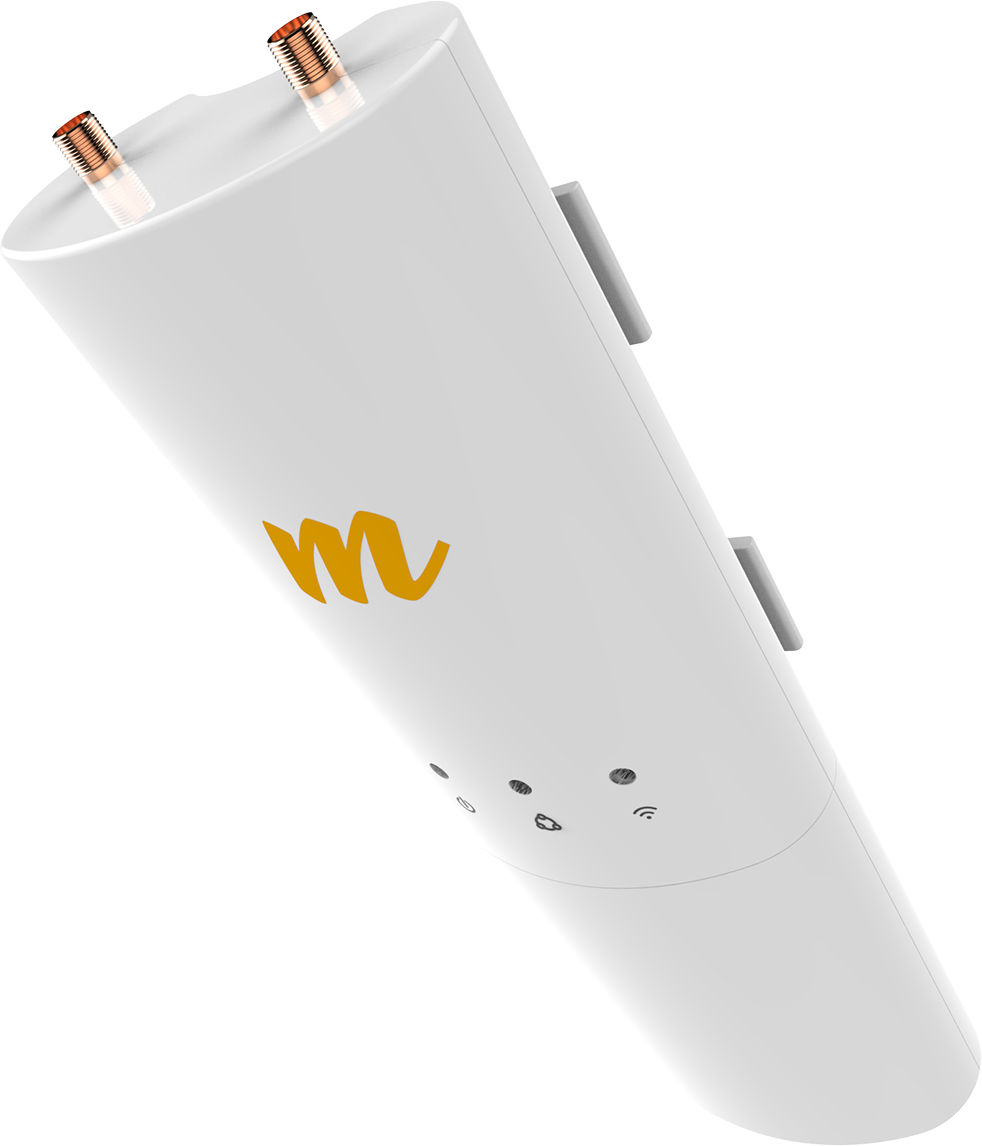

Model : C5c

Name: Model : C5c
Brand: Mimosa
Availability: InStock
Rating: 5.0 (10 reviews)

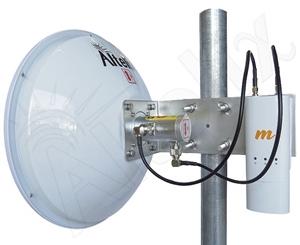

C5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c mates with many popular antennas, delivering 700 Mbps of TCP throughput.

Contact Now

DataSheet PDF

Description
Reviews

Performance
Max Throughput	PTP/PTMP: 700 Mbps IP (866 Mbps PHY)
Wireless Protocols	WiFi Interop Mimosa SRS
Modes	PTMP Client PTP Backhaul
Radio
MIMO & Modulation	2x2:2 MIMO OFDM up to 256 QAM
Bandwidth*	20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS; Tunable to standard WiFi channels for WiFi Interop
Frequency Range	PTMP: 4900-6400 MHz*** PTP: 4900-6400 MHz Restricted by country of operation new US/FCC 5600-5650 MHz support FCC DFS (U-NII-2a, U-NII-2c) availability pending certification
Max Output Power	27 dBm
Sensitivity ( MCS 0 )	-87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz
Power
Max Power Consumption	9.2 W
System Power Method	Passive PoE (24-56 VDC)
PoE Power Supply	Passive POE compliant, 48-56 V Power over Ethernet supply (Not Included)
Physical
Dimensions	Depth 44 mm (1.73") Width 65 mm (2.56") Height 188.4 mm (7.42")
Weight	295 grams (10.4 oz)

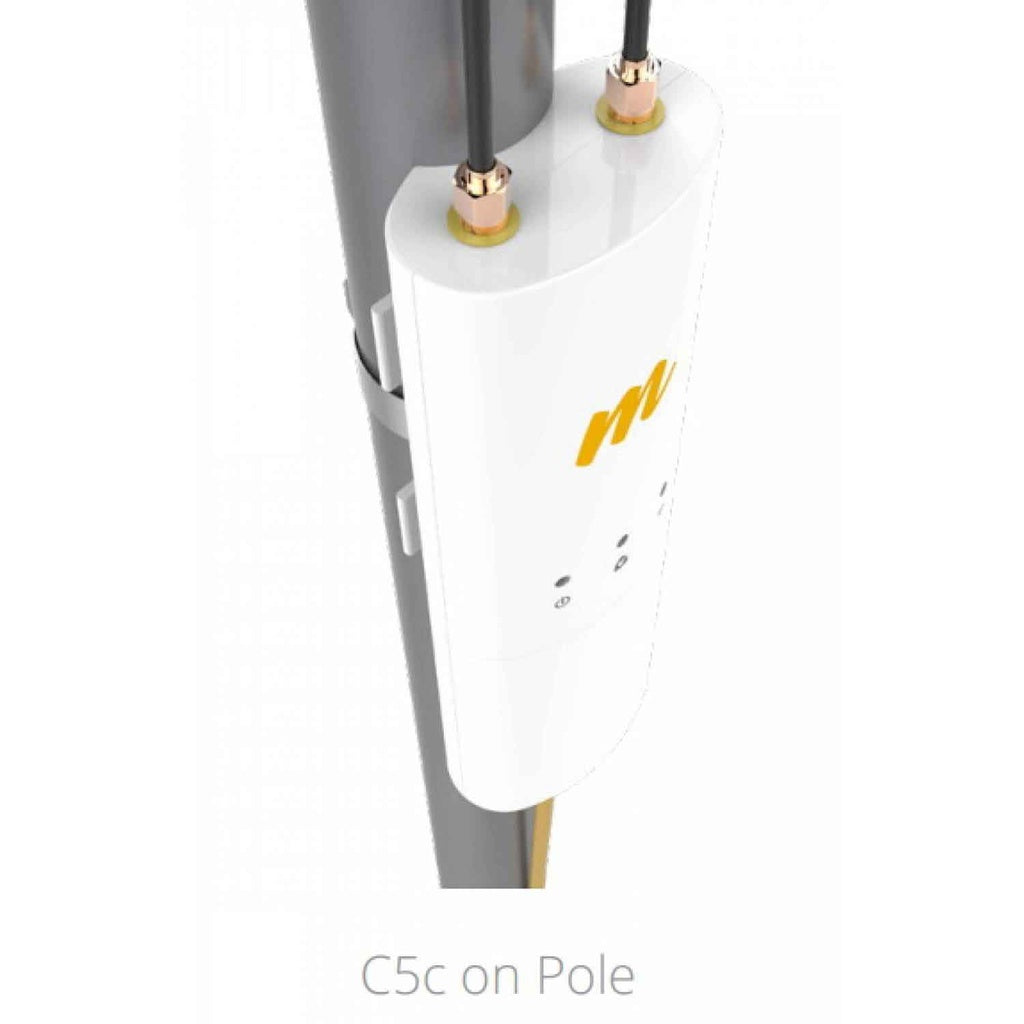

Mounting	Single pole strap
Connector Type	RP-SMA (x2)

Environmental
Outdoor Ingress Protection Rating	IP55
Operating Temperature	-40°C to +55°C (-40°F to 131°F)
Operating Humidity	5 to 100% condensing
Operating Altitude	4420 m (14501') maximum
Shock & Vibration	ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet	10/100/1000-BASE-T
Management Services	Mimosa cloud monitoring and management, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI
Smart Spectrum Management	Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use
Security	WPA2 + Mimosa 802.1x Client**
QoS	Supports 4 pre-configured QoS levels
Regulatory + Compliance
Approvals	FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502
Other National Regulations
RoHS Compliance	Yes
Safety	UL/EC/EN/ 60950-1 + CSA-22.2
