Ultratech
IPC6652EL-X33-VF
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
Description

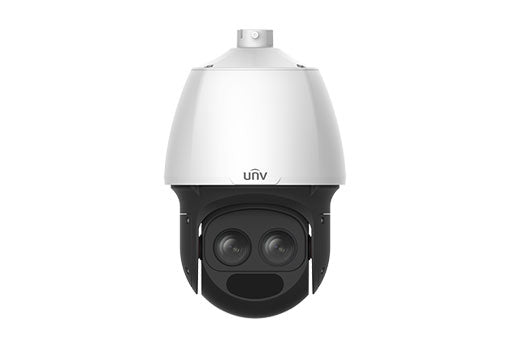

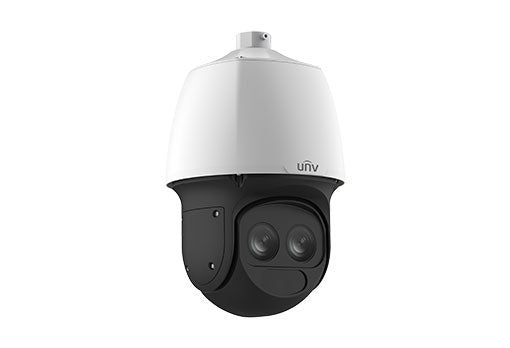

2MP 33X lighthunter Laser IR Network PTZ Camera
• High quality image with 2MP,1/2.8’’ CMOS sensor
• 1920*1080@60fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• 33X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Vari-focal laser: 500m (1640ft) distance, proportional to optical zoom of camera module
• AC 24V ±25%, DC 24V±25%, POE(PSE Required)
• Alarm 2 in and 1 out, Audio 1 in and 1 out
• IP66 ingress protection
• 1920*1080@60fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• 33X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Vari-focal laser: 500m (1640ft) distance, proportional to optical zoom of camera module
• AC 24V ±25%, DC 24V±25%, POE(PSE Required)
• Alarm 2 in and 1 out, Audio 1 in and 1 out
• IP66 ingress protection
Specification
| IPC6652EL-X33-VF | ||||||
| Camera | ||||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||||
| Minimum Illumination | Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR |
|||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| WDR | 120dB | |||||
| S/N | >52dB | |||||
| Lens | ||||||
| Lens type | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens | |||||
| Digital Zoom | 16 | |||||
| Optical Zoom | 33 | |||||
| Iris | Auto; F1.5 ~ F4.0 | |||||
| Field of View (H) | 56.2° ~ 2.6° | |||||
| Field of View (V) | 33.5° ~ 1.4° | |||||
| Field of View (D) | 69.2° ~ 3.0° | |||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 4.5 | 72.9(239.3ft) | 29.2(95.7ft) | 14.6(47.9ft) | 7.3(23.9ft) | ||
| 148.5 | 2187.9(7178.3ft) | 875.2(2871.3ft) | 437.6(1435.7ft) | 218.8(717.8ft) | ||
| Illuminator | ||||||
| Vari-focal Laser | Up to 500m(1640ft) | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps |
|||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| U-code | Support | |||||
| ROI | Up to 8 areas | |||||
| Video stream | Triple streams | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | 24 areas, up to 4 areas per scene | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| EIS | N/A | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Digital Defog | |||||
| Intelligent | ||||||
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | |||||
| People Counting | Support people flow counting and crowd density monitoring | |||||
| Events | ||||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | |||||
| Auto Tracking | Support | |||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U,G.711A | |||||
| Audio Bitrate | 64 Kbps | |||||
| Two-way audio | Support | |||||
| Suppression | Support | |||||
| Sampling Rate | 8 kHz | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR,NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | |||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | EZStation EZView EZLive |
|||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
| Pan & Tilt | ||||||
| Pan Range | 360° (endless) | |||||
| Pan Speed | 0.1°/s ~ 200°/s | |||||
| Preset speed: 300°/s | ||||||
| Tilt Range | -15° ~ 90° (auto reverse) | |||||
| Tilt Speed | 0.1°/s ~ 200°/s | |||||
| Preset speed: 240°/s | ||||||
| Number of Presets | 1024 | |||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||
| Patrol Stay Time | 15s~1800s | |||||
| Preset Image Freeze | Support | |||||
| Home Position | Support | |||||
| Interface | ||||||
| Audio I/O | 1/1 | |||||
| Alarm I/O | 2/1 | |||||
| Serial Port | 1 RS485 | |||||
| Built-in Mic | N/A | |||||
| Built-in Speaker | N/A | |||||
| WIFI | N/A | |||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||
| Video output | 1 BNC | |||||
| Certification | ||||||
| EMC | CE-EMC (EN 55032:2015; EN 55024:2010+A1:2015; EN 61000-3-2:2014; EN 61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||
| General | ||||||
| Power | AC 24V ±25%, DC 24V±25%, PoE (PSE Required) | |||||
| Power consumption: Max 53W | ||||||
| Power Interface | Wires with cold-pressed terminal | |||||
| Dimensions (Ø x H) | Ø227 x 385mm (Ø8.9" x 15.2") | |||||
| Weight | 5.6kg(12.35lb) | |||||
| Working Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 6KV | |||||
| Reset Button | Support | |||||
