IPC6852ER-X45-VF
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
Description

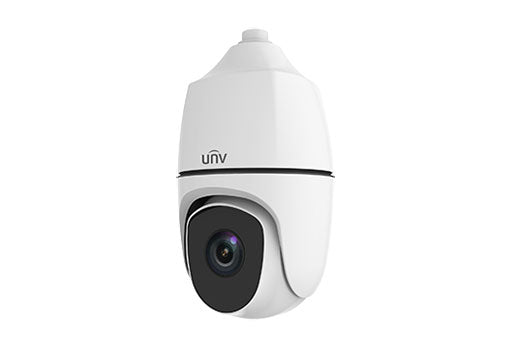

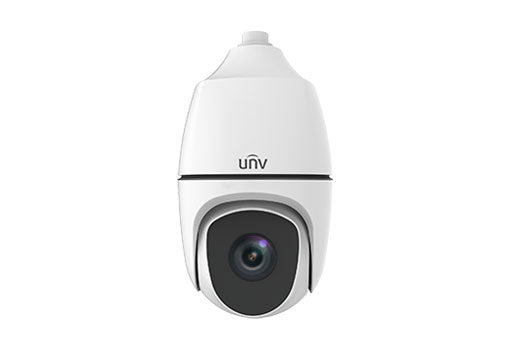

2MP 45X Lighthunter IR Network PTZ Dome Camera
• High quality image with 2MP,1/1.8” CMOS sensor
• 1920*1080@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• 45X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra high image quality in low illumination environment
• Smart IR, up to 250m (820ft) IR distance
• AC 24V ±25%, DC 24V±25%, PoE++ (IEEE 802.3bt) power supply
• Alarm 7 in and 2 out, Audio 1 in and 1 out
• IP66 ingress protection
• 1920*1080@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• 45X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra high image quality in low illumination environment
• Smart IR, up to 250m (820ft) IR distance
• AC 24V ±25%, DC 24V±25%, PoE++ (IEEE 802.3bt) power supply
• Alarm 7 in and 2 out, Audio 1 in and 1 out
• IP66 ingress protection
Specification
| Camera | Description |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Colour: 0.0005Lux (F1.2, AGC ON) 0Lux with IR |
| Day/Night | IR‑cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Lens | Description |
| Lens Type | 5.7 ~ 256.5mm |
| Digital Zoom | 16X |
| Optical Zoom | 45X |
| Iris | F1.2 ~ F4.6 |
| Field of View (H) | 59.5° ~ 2.2° |
| Field of View (V) | 35.6° ~ 1.2° |
| Field of View (D) | 73.19° ~ 2.60° |
| DORI | Description |
| DORI Distance(Lens) | 5.7~256.5(mm) |
| DORI Distance(Detect) | 88.4m~3980.2m(290.2ft~13058.3ft) |
| DORI Distance(Observe) | 35.4m~1592.1m(116.1ft~5223.3ft) |
| DORI Distance(Recognize) | 17.7m~796.0m(58.0ft~2611.7ft) |
| DORI Distance(Identify) | 8.8m~398.0m(29.0ft~1305.8ft) |
| Illuminator | Description |
| Illumination Distance(IR) | 250m |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850nm |
| Image | Description |
| EIS | Support |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog; Optical Defog |
| Intelligent | Description |
| Exception Detection | Object Removed; Object Left Behind |
| Smart Intrusion Prevention | Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection |
| People Counting | Support People Flow Counting and Crowd Density Monitoring |
| Video | Description |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps Sub Stream: 2MP (1920*1080), Max 30fps Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Stream | Triple Streams |
| OSD | Up to 10 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Events | Description |
| Basic Detection | Motion Detection; Audio Detection; Tampering Alarm |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; Alarm input; Alarm output |
| Audio | Description |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHz |
| Storage | Description |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR; NAS (NFS) |
| Network | Description |
| Protocols | SSH; IGMP; RTP; RTCP; SMTP; IPv4; IPv6; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTSP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; 802.1x; SNMP; QoS; SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M); API; SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; TLS1.3; WSSE and digest authentication for ONVIF |
| Client | EZStation; EZLive; EZView |
| Web Browser | Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Pan/Tilt | Description |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 180°/s |
| Tilt Range | –15° ~ 90° (auto reverse) |
| Tilt Speed | 0.1°/s ~ 180°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s ~ 1800s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Interface | Description |
| Audio I/O | 1/1 |
| Alarm I/O | 7/2 |
| Serial Port | 1 * RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base‑TX Ethernet |
| Video Output | N/A |
| Certification | Description |
| EMC | CE‑EMC (EN 55032:2015+A11:2020; EN IEC 61000‑3‑2:2019; EN 61000‑3‑3:2013+A1:2019; EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4‑2014) |
| Safety | CE LVD (EN 62368‑1:2014+A11:2017) UL (UL 62368‑1, 2nd Ed., Issue Date: 2014‑12‑01) |
| Environment | CE‑ROHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | Description |
| Power | AC 24V ±25%, DC 24V±25%, PoE++ (IEEE 802.3bt) |
| Power Consumption | Max 61W |
| Power Interface | Wires with cold‑pressed terminal |
| Dimensions | Ø 270 x 497mm(Ø 10.6" x 19.6") |
| Weight | 10.3kg(22.66lb) |
| Working Environment | ‑40 °C ~ 70 °C (‑40 °F ~ 158 °F), Humidity: ≤95% RH (non‑condensing) |
| Storage Environment | ‑40 °C ~ 70 °C (‑40 °F ~ 158 °F), Humidity: ≤95% RH (non‑condensing) |
| Surge Protection | 6KV |
| Reset Button | Support |
