Ultratech

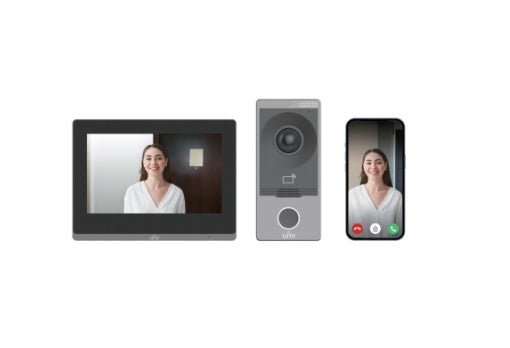

KIT201S372S

Name: KIT201S372S
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Description
Reviews

Specification

Model	KIT/201S/372S
Kit dimensions (L×W×H)	268mm213mm180mm
Kit weight	1.855kg
Model	OEU-201S-HMK-W
Power supply	DC12V ±25%, PoE power supply
Card capacity	10000
Operating system	Linux
Illuminator	IR light (adaptive)
WDR	Support
FOV	Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2°
Power consumption	< 10W
Volume adjustment	Support
Audio quality	Noise reduction, echo cancellation, auto gain control
Audio input	Built-in mic
Audio output	Built-in speaker
Protocol	Uniview private protocol
Audio compression format	PCM, G711, MP3
Audio compression bit rate	128kbps
Button	Call button
Ingress protection	IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details.) IK08
Weight	0.267kg
Mount method	Wall mount, flush mount
Interface	Power supply1, network interface1, RS4851, door lock interface2, IO input*4
Communication mode	100Mbps network interface, supports IEEE802.3af; Wi-Fi
Dimensions (L×H×W)	79mm171mm34mm
Operating environment	- 30°C to 60°C, 10% to 90% RH noncondensing, outdoor
Model	OEI-372S-H-W
Power supply	DC12V ±25%, PoE power supply
Screen resolution	1024 x 600
Display screen	7-inch ultra-thin TFT LCD touch screen
Operating system	Linux
Audio quality	Noise reduction, echo cancellation, auto gain control
Audio input	Built-in mic
Audio output	Built-in speaker
Audio compression format	MP3, G711
Audio compression bit rate	128kbps
Protocol	Uniview private protocol
TF card	1 x 32G TF card, capable of storing 100 live video snapshots, 200 call records and call snapshots.
Power consumption	< 10W
Weight	0.377kg
Interface	Power supply1, network interface1, RS4851, IO output2, IO input8, TF card slot1
Communication mode	100Mbps network interface, supports IEEE802.3af; Wi-Fi
Dimensions (L×H×W)	193.2mm143.4mm25mm
Operating environment	- 10°C to 55°C, 10% to 90% RH noncondensing, indoor
