Ultratech

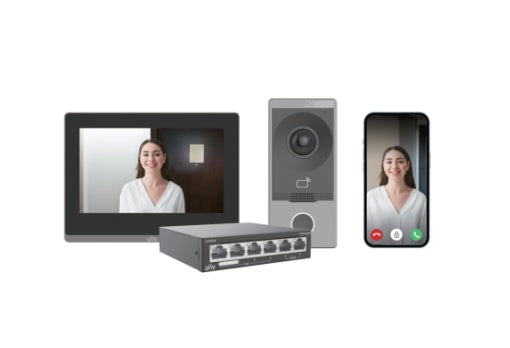

KIT201S372SNSW2020
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
- Description
- Reviews
Specification
Model | KIT/201S/372S/NSW2020 |
Kit dimensions (L×W×H) | 268mm*213mm*180mm |
Kit weight | 2.005kg |
Model | OEU-201S-HMK-W |
Power supply | DC12V ±25%, PoE power supply |
Card capacity | 10000 |
Operating system | Linux |
Illuminator | IR light (adaptive) |
WDR | Support |
FOV | Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2° |
Power consumption | < 10W |
Volume adjustment | Support |
Audio quality | Noise reduction, echo cancellation, auto gain control |
Audio input | Built-in mic |
Audio output | Built-in speaker |
Protocol | Uniview private protocol |
Audio compression format | PCM, G711, MP3 |
Audio compression bit rate | 128kbps |
Button | Call button |
Ingress protection | IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details.) IK08 |
Weight | 0.267kg |
Mount method | Wall mount, flush mount |
Interface | Power supply*1, network interface*1, RS485*1, door lock interface*2, IO input*4 |
Communication mode | 100Mbps network interface, supports IEEE802.3af; Wi-Fi |
Dimensions (L×H×W) | 79mm*171mm*34mm |
Operating environment | - 30°C to 60°C, 10% to 90% RH noncondensing, outdoor |
Model | OEI-372S-H-W |
Power supply | DC12V ±25%, PoE power supply |
Screen resolution | 1024 x 600 |
Display screen | 7-inch ultra-thin TFT LCD touch screen |
Operating system | Linux |
Audio quality | Noise reduction, echo cancellation, auto gain control |
Audio input | Built-in mic |
Audio output | Built-in speaker |
Audio compression format | MP3, G711 |
Audio compression bit rate | 128kbps |
Protocol | Uniview private protocol |
TF card | 1 x 32G TF card, capable of storing 100 live video snapshots, 200 call records and call snapshots. |
Power consumption | < 10W |
Weight | 0.377kg |
Interface | Power supply*1, network interface*1, RS485*1, IO output*2, IO input*8, TF card slot*1 |
Communication mode | 100Mbps network interface, supports IEEE802.3af; Wi-Fi |
Dimensions (L×H×W) | 193.2mm*143.4mm*25mm |
Operating environment | - 10°C to 55°C, 10% to 90% RH noncondensing, indoor |
Model | NSW2020-6T-POE-IN |
Service port | 6 x 100M copper port (RJ45), including 4 x 100M copper port (supports PoE power supply) |
Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
Switching capacity | 1.2Gbps |
Packet forwarding rate | 0.90Mpps |
Packet buffer | 448kbit |
MAC | 1K |
Dimensions (W×D×H) | 107*99*25mm |
Weight | 0.19kg |
Power | DC 48V/51V |
PoE | Supports IEEE802.3af and IEEE802.3at |
PoE power supply mode | Mode B, 4/5+, 7/8- |
PoE power | Maximum total power: 60W Maximum PoE power for single port: 30W |
Priority port | 1 to 2 |
Mount method | Desktop mount, wall mount |
Fan | Fanless |
Operating temperature | 0°C to 40°C |
Operating humidity | 10% to 90% RH, noncondensing |
Storage temperature | -40°C to 70°C |
Storage humidity | 5% to 90% RH, noncondensing |
Indicator | POWER: Steady on: Normal power input Off: Abnormal power input |
No PoE port indicator | |
PoE-MAX: Off: The total PoE power is less than 80% of the total power of the device. Steady on: The total PoE power is higher than 85% of the total power of the device. |
|
Link/Act: Off: The port is disconnected. Steady on: The port is connected. Blinking: The port is transmitting data. |
|
DIP switch | Default: All ports can communicate with each other. Extend: All PoE ports can only communicate with uplink ports, and the network transmission distance can reach up to 250 meters. |
