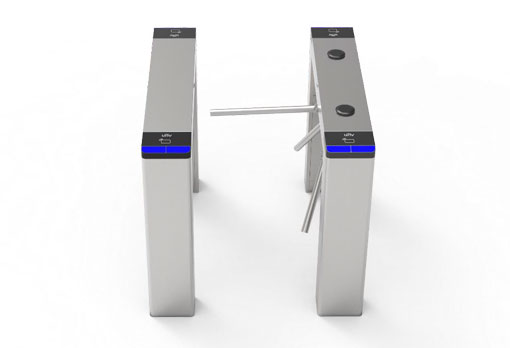

OFG5311

Name: OFG5311
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specification

Parameter	Description
Throughput	20 to 30 persons per minute
Fire alarm linkage	Auto door opening in case of power failure
LED color	Blue
Pedestal material	1.0mm thick on the side, 1.2mm thick on the top
MCBF	3 million times
Power	AC100-240V, 50Hz to 60Hz
Power consumption	40W
Weight	45KG (empty pedestal: 30KG)
Dimensions (L×W×H)	1200mm220mm980mm
Lane width	550mm
Operating temperature	-20°C to +60°C (temperature control module required)
Relative humidity	5% to 80%
Interface	IO*1
Ingress protection	IP54
Barrier material	Stainless steel round rod
Barrier fall mode	Auto fall after power failure, manual lift after power on, auto reset after impacts
