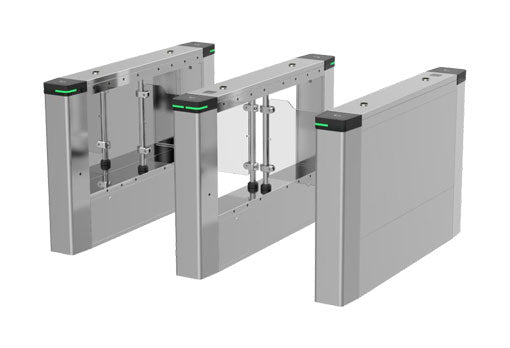

OFG8501

Name: OFG8501
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specification

Function	Description
IR detector	16 pairs
Throughput	30 to 60 people per minute, depending on the foot traffic and passing mode
Anti-pinch detection	Anti-pinch by IR detection, impact detection, and current detection
Retrograde motion detection	Reverse break-in detection
Alarm mode	Audible and visual alarm
MCBF	6 million times
Indicator color	Red/green
Interface	RS485×1,RS232×1,network interface,CAN
IO	Face recognition terminal2+remote control2+fire2+linkage2 +door opening button*2
Performance	Description
Motor	Brushless DC motor
Pedestal material	Wall thickness 1.2mm, top cover 1.5mm, 304brushed stainless steel
Barrier material	10mm PMMA/stainless steel pipe
Power supply	220V input; 24VDC/3A, 12VDC/7A output
Power consumption	Standby: 30W, operating: 50W
Dimensions (L×W×H)	1500mm × 190mm × 960mm
Voice	Built-in amplifier and speaker
Lane width	650mm to 1050mm
Closing accuracy	≤1°
Operating environment	Operating humidity: < 95%, non-condensing; operating temperature: -20°C to 60°C; outdoor shade
