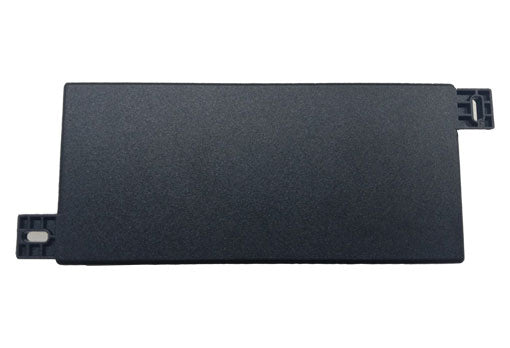

PWR-DC5612-P@NB

Name: PWR-DC5612-P@NB
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Specification

PSE	PWR-DC5612-P@NB
INPUT	AC 100-240V~ 50/60Hz 2AMax
OUTPUT	DC 56V/1.16A
Protection/Environmental
Protection	Output over current protection: 2A Short circuit protection (Yes)
Protection	Surge protection power input port meets EN 61000-4-5 L-N ±6KV L,N-PE ±6KV Pluses Per polarity: 5 each, Angel: random, Generator impedance：2ohm, Criterion B
Enviromental
Storage Temperature	-25℃~65℃(-13℉~149℉)
Operating Temperature	-20℃~60℃(-4℉~140℉)
Working humidity	5% to 90%, non-condensing.
Physical Properties
Weight	275g(0.61lb)
Dimension(LxWxH)	140mmx65mmx38mm(5.46”x2.54”x1.48”)
Installation mode	Plane installation
Color	Black
Input plug	3-pin plug
Power Out Pin	Endspan 1.2(+),3.6(-)Midspan 4.5(+),7.8(-)
Output plug	RJ45
Safety Standards
Certification	UL, CE, CCC, IEC/UL/EN 60950 and 62368.
