Uniview

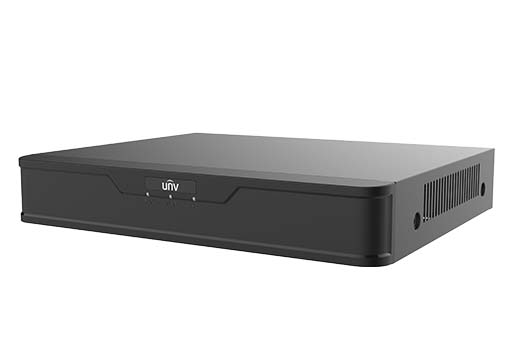

XVR301-G3 Series

Name: XVR301-G3 Series
Brand: Uniview
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Digital Video Recorder, 4/8/16 channel BNC input

Contact Now

DataSheet PDF

Description
Reviews

Specification

Video/Audio Input	Description
IP Video Input	XVR301‑04G3:2‑ch XVR301‑08G3:4‑ch XVR301‑16G3:8‑ch
Analog Video Input	XVR301‑04G3:4‑ch, BNC XVR301‑08G3:8‑ch, BNC XVR301‑16G3:16‑ch, BNC
Max IP Video Input	XVR301‑04G3:6‑ch XVR301‑08G3:8‑ch XVR301‑16G3:16‑ch
Supported Analog Camera Types	XVR301‑04G3:Support AHD input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input XVR301‑08G3:Support AHD input: 5MP@12.5fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12.5fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input XVR301‑16G3:Support AHD input: 5MP@12.5fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12.5fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input
RCA Audio Input	1‑ch
Video/Audio Output	Description
HDMI Output	HDMI:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output	VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output	1‑ch
Live View Display	XVR301‑04G3:HDMI/VGA: 1/4/6/8/9 XVR301‑08G3:HDMI/VGA: 1/4/6/8/9/16 XVR301‑16G3:HDMI/VGA: 1/4/6/8/9/25
Encoding/Decoding	Description
Recording Resolution	XVR301‑04G3:5MP Lite/4MP Lite/1080P/720P/D1 XVR301‑08G3:5MP Lite/4MP Lite/1080P Lite/720P/D1 XVR301‑16G3:5MP Lite/4MP Lite /1080P Lite/720P/D1
Recording Frame Rate	XVR301‑04G3:Main stream: 5MP Lite@12fps Sub stream: D1@12fps Main stream: 4MP Lite@15fps Sub stream: D1@15fps Main stream: 1080P@15fps Sub stream: D1@15fps Main stream: 720P@25fps Sub stream: D1@25fps XVR301‑08G3/XVR301‑16G3:Main stream: 5MP Lite@6fps Sub stream: D1@6fps Main stream: 4MP Lite@8fps Sub stream: D1@8fps Main stream: 1080P Lite@12fps Sub stream: D1@12fps Main stream: 720P@12fps Sub stream: D1@12fps
Audio Sample Rate	8KHz,16 bit per channel
Audio Bit Rate	64Kbps per channel
Decoding Capability	XVR301‑04G3:Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 XVR301‑08G3:Analog: 4 x 5MP Lite@6,4x 4MP Lite@8, 4x 1080P Lite @12fps IP: 1 x 4MP@30, 2 x 1080P@30 XVR301‑16G3:Analog: 8 x 5MP Lite@6, 8 x 4MP Lite@8, 8 x 1080P Lite@12 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30
Two-way Audio	Description
Two-way Audio	1‑ch, RCA(Using the audio input and output)
Analog Snapshot	Description
FTP/Schedule/Event Snapshot	XVR301‑04G3:FTP/Event snapshot:4‑ch snapshot, up to 704576 resolution, Schedule snapshot:not supported XVR301‑08G3:FTP/Event snapshot:8‑ch snapshot, up to 704576 resolution, Schedule snapshot:not supported XVR301‑16G3:FTP/Event snapshot:16‑ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported
Network	Description
Incoming Bandwidth	XVR301‑04G3:16Mbps (Up to 24Mbps after all analog channel conversion) XVR301‑08G3:32Mbps (Up to 40Mbps after all analog channel conversion) XVR301‑16G3:40Mbps (up to 56Mbps after all analog camera conversion)
Outgoing Bandwidth	XVR301‑04G3:48Mbps XVR301‑08G3/XVR301‑16G3:64Mbps
Remote Users	128
Protocols	TCP/IP;P2P;UPnP;DHCP;HTTP;HTTPS;DNS;DDNS;SMTP;NTP
Browser(Plugin)	IE(IE10/11) Firefox (version 52.0 and above) Chrome(version 45 and above) Edge(version 79 and above)
Smart	Description
Analog Smart by XVR	Ultra Motion Detection(UMD)
Smart Functions by XVR	XVR301‑04G3/XVR301‑08G3:4‑ch(UMD) XVR301‑16G3:8‑ch(UMD)
Alarm	Description
General Alarm	Motion
Alert Alarm	IP Conflict;Network Disconnected;Disk offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
Hard Disk	Description
SATA	1 SATA interface
Capacity	Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface	Description
Network Interface	1 RJ45 10M/100M self‑adaptive Ethernet Interface
USB	Rear panel: 2 x USB2.0
Power Supply	DC 12V/2A
Working Environment	Description
Working Temperature	‑10°C ~ + 55°C ( +14°F ~ +131°F )
Working Humidity	≤ 90% RH(non‑condensing)
Power Consumption (without HDD)	XVR301‑04G3/XVR301‑08G3:≤ 8W XVR301‑16G3:≤ 10W
Dimensions	Description
Weight (without HDD)	≤1.1 Kg ( 2.42lb )
Dimensions	260mm ×226mm× 47mm (10.2" × 8.9"×1.8")
Certification	Description
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC	Part15 Subpart B
