1XPON+4GE+1USB3.0+CATV+WiFi6 HGU ONT Model: V2804AX15T Spec: 1*XPON+4*GE+WiFi6(AX1500)+1*USB3.0+CATV Weight: 450g

V.SOL

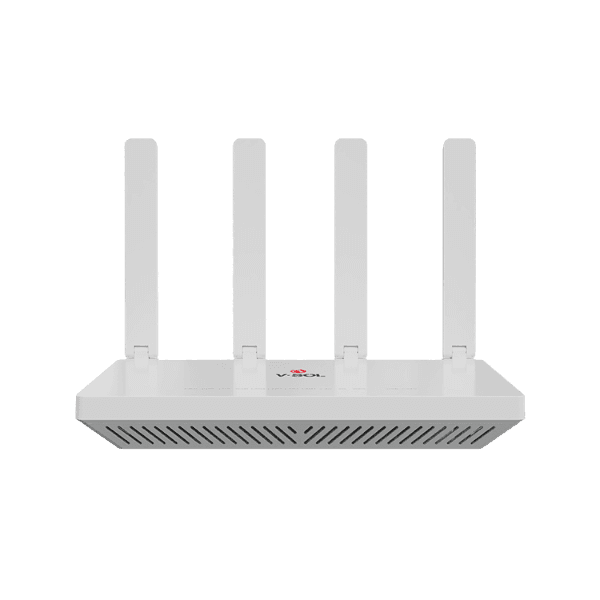

1XPON+4GE+1USB3.0+CATV+WiFi6 HGU ONT

Name: 1XPON+4GE+1USB3.0+CATV+WiFi6 HGU ONT
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V2804AX15T , Spec: 1*XPON+4*GE+WiFi6(AX1500)+1*USB3.0+CATV

Contact Now

DataSheet PDF

Description
Reviews

Description

Product Description: V2804AX15T HGU ONT

The V2804AX15T HGU (Home Gateway Unit) ONT (Optical Network Terminal) is a cutting-edge device that combines high-speed internet connectivity, advanced wireless capabilities, and versatile connectivity options in a single unit. This HGU ONT is perfect for homes and small businesses seeking a reliable and feature-rich networking solution.

Key Features:

1 XPON Port: High-speed internet connectivity over fiber-optic networks
4 Gigabit Ethernet Ports: High-speed connectivity options for devices
1 USB 3.0 Port: High-speed data transfer and connectivity
CATV: Supports cable television services
WiFi 6 (AX1500): Advanced wireless connectivity with increased speed and capacity

Product Specifications:

Model: V2804AX15T
Type: 1XPON+4GE+1USB3.0+CATV+WiFi6 HGU ONT
Specification: 1XPON+4GE+WiFi6(AX1500)+1*USB3.0+CATV

This HGU ONT is designed to provide a robust and reliable internet connection, advanced wireless capabilities, and versatile connectivity options, making it an ideal choice for those seeking a high-performance and feature-rich device.

○ Hardware Parameter
Dimension	260.4mm×157.4mm×45.8mm(L×W×H)
Net weight	0.45Kg
Operating condition	Operating temp: -10 ~ +55°C Operating humidity:5 ~ 95% (non-condensed)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	DC 12V, 1.5A, external AC-DC power adaptor
Power supply	≤18W

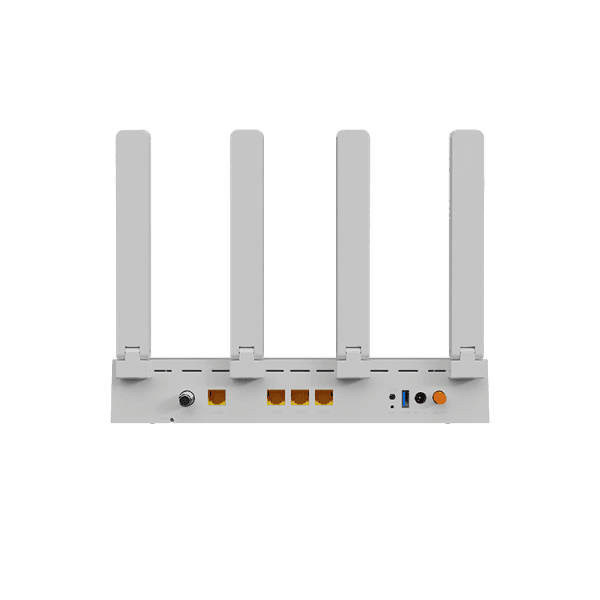

Interface	1XPON+4GE+1USB3.0+CATV+WiFi6
Indicators	PWR ,PON ,LOS ,WAN ,LAN1~4 ,2.4G ,5G , WPS ,USB ,CATV

○ Interface parameter
PON Interface	l 1XPON port(EPON PX20+ and GPON Class B+) l SC single mode, SC/APC connector l TX optical power: 0～+4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm(GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm
User interface	4×GE, Auto-negotiation,RJ45 ports
Antenna	4 ×5dBi external antennas
CATV interface	l Optical receiving wavelength: 1550±10nm l Optical input range: +2～-18dBm l Optical reflection loss: ≥40dB l RF frequency range: 47～1000MHz l RF output impedance: 75Ω l RF output level and AGC range: ≥81±2dBuv@+1～-10dBm ≥79±2dBuv@ 0～-11dBm ≥77±2dBuv@-1～-12dBm ≥75±2dBuv@-2～-13dBm ≥73±2dBuv@-3～-14dBm ≥71±2dBuv@-4～-15dBm l MER: ≥32dB(-14dBm optical input)

○ Function Data
O&M	l WEB/TELNET/OAM/OMCI/TR069 l Support private OAM/OMCI protocol
Internet connection	Support Routing Mode
Multicast	l IGMP v1/v2/v3, IGMP snooping l MLD v1/v2 snooping
WIFI	l WIFI6:802.11a/n/ac/ax 5GHz l WIFI4: 802.11g/b/n 2.4GHz l WiFi: 2.4GHz 2×2, 5.8GHz 2×2, 5dBi antenna, rate up to 1.5Gbps,Multiple SSID l WiFi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 l Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM l Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band l Support WIFI Easy-mesh function
L2	802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN
L3	IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS
Firewall	Anti-DDOS, Filtering Based on ACL/MAC /URL
