Grandstream GWN7302

Grandstream GWN7302 PtP/PtMP Fixed Wireless Bridge

The Grandstream GWN7302 is an enterprise-grade Point-to-Point (PtP) and Point-to-Multipoint (PtMP) Fixed Wireless Bridge designed to deliver reliable, high-performance long-distance wireless connectivity for medium-to-large businesses and demanding outdoor networking environments. With an impressive 2.4Gbps aggregate wireless throughput, advanced 2x2:2 MIMO technology, and intelligent TDMA spectrum management, the GWN7302 provides fast, stable, and efficient wireless data transmission across distances of up to 5 kilometers, depending on environmental conditions.

Designed for professional deployments, the GWN7302 combines high-speed wireless performance with robust outdoor durability. Its IP66-level weatherproof design helps protect the device against challenging outdoor conditions, making it suitable for factories, construction sites, parking areas, campuses, scenic locations, warehouses, and other environments where wired connectivity may be difficult or expensive to deploy.

The GWN7302 features single-band 2x2:2 MIMO technology operating on the 5GHz frequency band, delivering wireless data rates of up to 2402Mbps under IEEE 802.11ax. Its advanced TDMA technology improves spectrum utilization, reduces interference, and enhances overall network stability, making it ideal for long-range wireless bridge applications. The device supports both PtP and PtMP operating modes, allowing businesses to establish dedicated wireless links between two locations or connect multiple remote sites through a centralized network architecture.

For dependable real-time applications, the GWN7302 includes Advanced Quality of Service (QoS) capabilities that help prioritize network traffic and maintain performance for low-latency applications. Support for 802.11e/WMM, 802.1p, 802.1q, and TOS enables efficient traffic management and helps ensure a smooth networking experience for business-critical services.

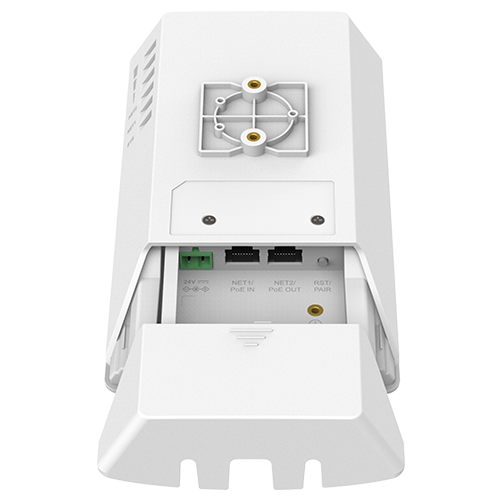

The bridge is equipped with two 10/100/1000Mbps Gigabit Ethernet ports, providing flexible network connectivity with PoE input and PoE output support. Its intelligent power design enables automatic power adaptation upon detection of PoE+, helping simplify deployment and power management. The device supports 802.3af/at PoE input as well as DC power, while its PoE output capability can be used to power compatible network equipment, depending on the available power source.

Installation and alignment are made simple with the GWN7302's one-key pairing functionality and built-in signal-strength LED indicators, which assist installers in quickly establishing and optimizing wireless links. The device also includes tools such as Antenna Alignment, Link Test, and Spectrum Analyzer, helping network professionals configure, test, and maintain wireless connections more efficiently.

Management is convenient and flexible through multiple platforms. The GWN7302 provides an intelligent controller-less distributed network management architecture, with configuration available through its built-in web interface. It can also be managed using the GWN App, allowing convenient setup and configuration through the device's management Wi-Fi when direct LAN access is not convenient. For remote administration, GDMS Networking via SSH tunneling provides centralized cloud-based management capabilities, while GWN Manager and additional management protocols such as TR-069 and SNMP offer further flexibility for professional network deployments.

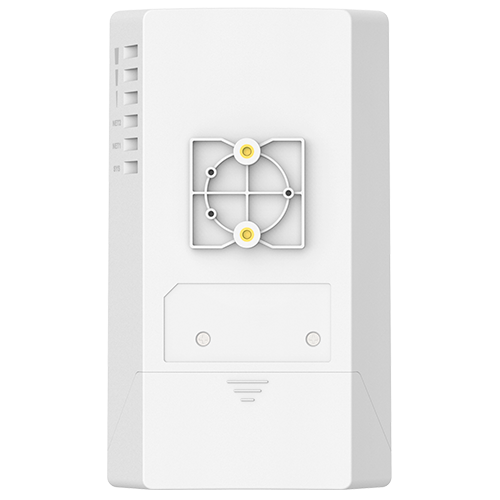

Built to operate reliably in demanding environments, the GWN7302 supports an operating temperature range of -30°C to 60°C and features IP66-level weatherproof protection. Its wall- and pole-mount installation options make it easy to deploy in a variety of outdoor locations.

Whether you need to connect separate buildings, extend a network across a factory or warehouse, provide connectivity to remote sites, or establish reliable wireless infrastructure across large outdoor areas, the Grandstream GWN7302 delivers a powerful combination of high-speed performance, long-range connectivity, advanced wireless technology, rugged outdoor protection, and intelligent network management.

Key Features:

• Up to 2.4Gbps aggregate wireless throughput

• 5GHz single-band 2x2:2 MIMO technology

• Advanced TDMA technology for improved spectrum efficiency and stability

• Wireless coverage range of up to 5 kilometers, depending on environmental conditions

• Supports Point-to-Point (PtP) and Point-to-Multipoint (PtMP) deployments

• Supports up to 1:4 PtMP connections

• 2 × Gigabit Ethernet ports with PoE Input and PoE Output

• Intelligent power adaptation with automatic PoE+ detection

• Advanced QoS for low-latency and real-time applications

• IP66-level weatherproof protection for outdoor deployments

• One-key pairing for fast and easy device synchronization

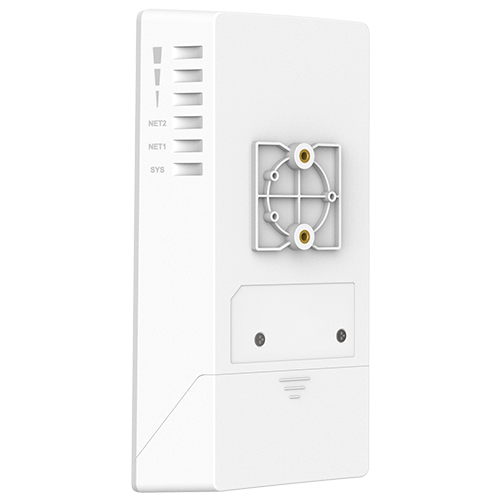

• Signal-strength LEDs for convenient antenna alignment

• Built-in Link Test, Antenna Alignment, and Spectrum Analyzer tools

• Convenient local web-based management

• GWN App support for easy configuration and management

• GDMS Networking via SSH tunneling for remote management

• Support for GWN Manager

• Suitable for factories, construction sites, parking lots, campuses, scenic locations, and other long-distance networking applications
