Uniview

DEU1016-B

Name: DEU1016-B
Brand: Uniview
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Disk Enclosure • High density. The innovative enclosure with 477mm depth and 3U height that holds up to 16 disks, is space-saving and applicable to the standard rack-mounted scenarios. • Power protection. Disk powered on sequentially during system startup, protection from impulse current.

Contact Now

DataSheet PDF

Description
Reviews

Description

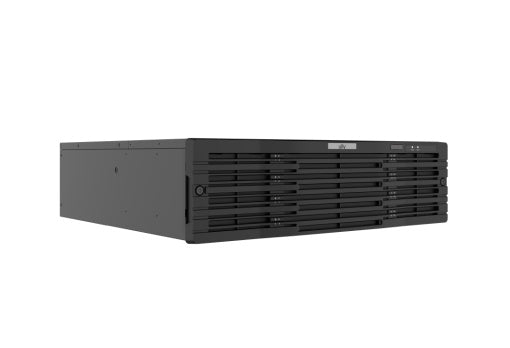

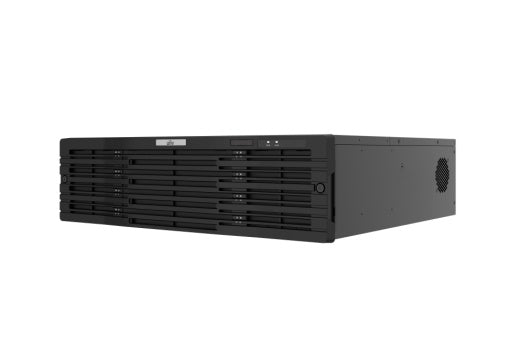

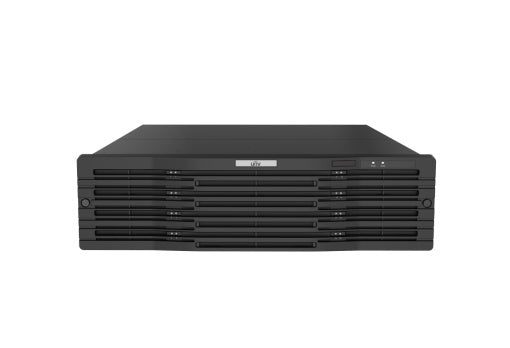

Disk Enclosure

• High density. The innovative enclosure with 477mm depth and 3U height that holds up to 16 disks, is space-saving and applicable to the standard rack-mounted scenarios.
• Power protection. Disk powered on sequentially during system startup, protection from impulse current.

Specification

Hard Disk	Description
SATA	16 SATA Interfaces
Capacity	Up to 16TB for each disk
External Interface	Description
miniSAS	1
RS232	1
Power Supply	AC 100～240V
Working Environment	Description
Working Temperature	-10°C ~ + 55°C (+14°F ~ +131°F)
Working Humidity	5%~95% RH (non-condensing)
Power Consumption(With HDD)	< 160W(With 16 HDDs)
Dimensions	Description
Weight(Without HDD)	< 10Kg (22lb)
Dimensions	482mm × 477mm× 131mm (19.0"×18.8"×5.1")
Height	3U
