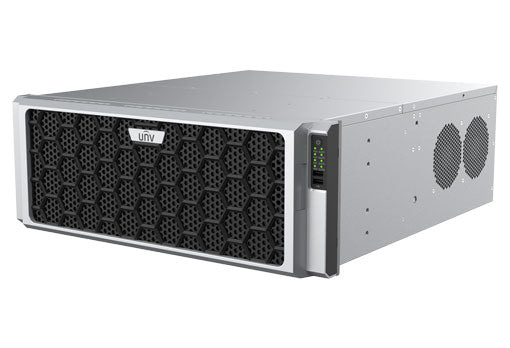

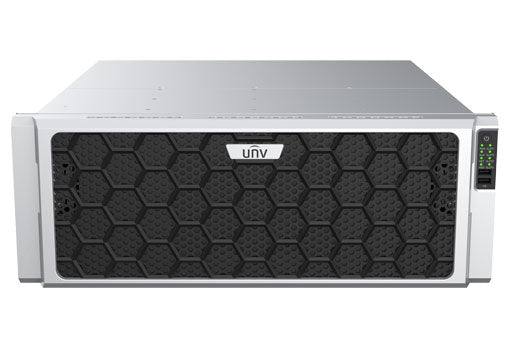

Uniview

NVR824-R-IM Series

Name: NVR824-R-IM Series
Brand: Uniview
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Network Video Recorder

Contact Now

DataSheet PDF

Description
Reviews

Specification

Decoding	Description
DecodingFormat	Ultra 265, H.265, H.264
DecodingCapability	3 x 12MP@30, 5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1
AudioCompression	G.711A, G.711U
Network	Description
IncomingBandwidth	768Mbps
OutgoingBandwidth	768Mbps
RemoteUsers	128
Protocols	TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6
Browser(Plugin)	Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInput	Description
IPVideoInput	NVR824‑128‑R‑IM‑8G:128‑ch NVR824‑256‑R‑IM‑16G:256‑ch
RCAAudioInput	1‑ch
Video/AudioOutput	Description
HDMIOutput	HDMI1/HDMI2:4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGAOutput	VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCAAudioOutput	1‑ch
LiveviewDisplay	VGA:1/4/6/8/9/16/25/36, HDMI1/HDMI2:1/4/6/8/9/16/25/36/64
CorridorModeScreen	3/4/5/7/9/10/12/16/32
Two-wayAudio	Description
Two-wayAudio	1‑ch, RCA(Using the audio input and output)
Snapshot	Description
FTP/Schedule/EventSnapshot	128‑ch snapshot, up to 4K resolution
Recording	Description
RecordingResolution	12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocal	16‑ch
Smart	Description
VCADetectionbyIPC	Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring
SmartbyNVR	Smart Intrusion Prevention (SIP);Video Metadata;(At same channel, only one smart function by NVR can be enabled simultaneously)
VCASearch	Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report
SmartbyIPC	All channels (up to 64 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
SearchbyImage	Support
VehiclePictureLibrary	Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIPbyNVR	NVR824‑128‑R‑IM‑8G:64‑ch NVR824‑256‑R‑IM‑16G:128‑ch
VideoMetadatabyNVR	NVR824‑128‑R‑IM‑8G:64‑ch NVR824‑256‑R‑IM‑16G:128‑ch
VideoMetadataTypebyNVR	Motor Vehicle: Vehicle Color, Vehicle Type, Vehicle Brand, Direction. Non‑Motor Vehicle: Non‑Motor Vehicle Type, Direction, Gender, Age, Upper Garment Length. Human Body: Gender, Age, Mask, Hairstyle, Bag Style, Direction, Upper Garment Length, Lower Garment Length.
Alarm	Description
GeneralAlarm	Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarm	IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;High CPU Temperature;High Motherboard Temperature;Array Damaged;Array Degraded
HardDisk	Description
SATA	24 SATA interfaces
Capacity	Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
DiskGroup	Support
RedundantStorage	Support
DiskArrayType	RAID 0, 1, 5, 6, 10, 50, 60
HotSwap	Support
ExternalInterface	Description
NetworkInterface	4 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USB	Front panel: 2 x USB2.0;Rear panel: 2 x USB3.0
RS485	1
RS232	1
AlarmIn	24‑ch
AlarmOut	8‑ch
eSATA	1
miniSAS	2
PowerOutput	12V
PowerSupply	AC 100 ～ 240 V
PowerSwitch	Support
RedundantPowerSupply	Support
WorkingEnvironment	Description
WorkingTemperature	‑10 °C ~ 50 °C (14 °F ~ 122 °F)
WorkingHumidity	≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD)	≤ 300W
Dimensions	Description
Weight(withoutHDD)	≤ 12.5Kg (27.56lb)
Height	4U
Dimensions	NVR824‑128‑R‑IM‑8G:533mm × 482mm × 131.0mm (21.0" × 19.0" × 5.1") NVR824‑256‑R‑IM‑16G:484.6mm × 533mm × 175.5mm (19.1"×21.0"×6.9")
Certification	Description
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC	Part15 Subpart B
