Uniview

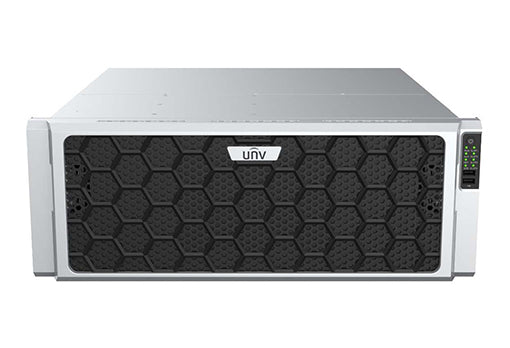

NVR824-R Series

Name: NVR824-R Series
Brand: Uniview
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Network Video Recorder

Contact Now

DataSheet PDF

Description
Reviews

Specification

Decoding	Description
DecodingFormat	Ultra 265, H.265, H.264
DecodingCapability	3 x 12MP@30, 5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1
AudioCompression	G.711A, G.711U
Network	Description
IncomingBandwidth	768Mbps
OutgoingBandwidth	768Mbps
RemoteUsers	128
Protocols	TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6
Browser(Plugin)	Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInput	Description
IPVideoInput	NVR824‑128R:128‑ch NVR824‑256R:256‑ch
RCAAudioInput	1‑ch
Video/AudioOutput	Description
HDMIOutput	HDMI1/HDMI2:4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGAOutput	VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCAAudioOutput	1‑ch
LiveviewDisplay	VGA:1/4/6/8/9/16/25/36, HDMI1/HDMI2:1/4/6/8/9/16/25/36/64
CorridorModeScreen	3/4/5/7/9/10/12/16/32
Two-wayAudio	Description
Two-wayAudio	1‑ch, RCA(Using the audio input and output)
Snapshot	Description
FTP/Schedule/EventSnapshot	128‑ch snapshot, up to 4K resolution
Recording	Description
RecordingResolution	12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocal	16‑ch
Smart	Description
VCADetectionbyIPC	Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring
SmartbyNVR	In the Smart Card datasheet
VCASearch	Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report
SmartbyIPC	All channels (up to 64 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
VehiclePictureLibrary	Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIPbyNVR	In the Smart Card datasheet
CapacityofSnapshotRecords	5 millions records for face snapshot; 5 millions records for vehicle snapshot;2 millions records for SIP
Alarm	Description
GeneralAlarm	Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarm	IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;High CPU Temperature;High Motherboard Temperature;Array Damaged;Array Degraded
HardDisk	Description
SATA	24 SATA interfaces
Capacity	Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
DiskArrayType	RAID 0, 1, 5, 6, 10, 50, 60
HotSwap	Support
ExternalInterface	Description
NetworkInterface	4 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USB	Front panel: 2 x USB2.0;Rear panel: 2 x USB3.0
RS485	1
RS232	1
AlarmIn	24‑ch
AlarmOut	8‑ch
eSATA	1
miniSAS	2
Extensionboard	4
PowerOutput	12V
PowerSupply	AC 100 ～ 240 V
PowerSwitch	Support
RedundantPowerSupply	Support
WorkingEnvironment	Description
WorkingTemperature	‑10 °C ~ 50 °C (14 °F ~ 122 °F)
WorkingHumidity	≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD)	≤ 70W
Dimensions	Description
Weight(withoutHDD)	≤ 12.5Kg (27.56lb)
Dimensions	484.6mm × 533mm × 175.5mm (19.1"×21.0"×6.9")
Certification	Description
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC	Part15 Subpart B
