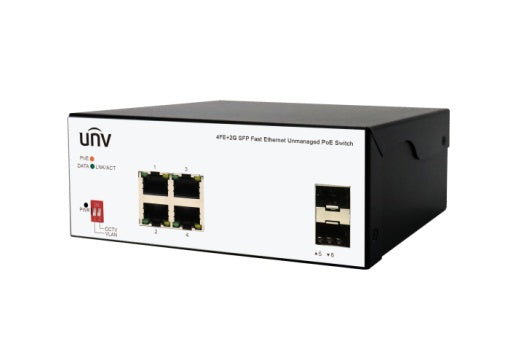

ISW2000-4T2GP-POE-IN

PoE supports IEEE 802.3af/at standards and provides a maximum output of 30W for each port;
Multiple working modes to address your business needs: VLAN、CCTV
VLAN mode: Downlink ports can communicate only with uplink ports.
CCTV mode: The port is forced to speed down to 10Mbps transmission rate. Data transmission and power supply distance up to 250 meters.Downlink ports can communicate only with uplink ports.
Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control；
Panel indicators monitor working status and assist in fault analysis;
Operating temperature: -20℃~60℃;

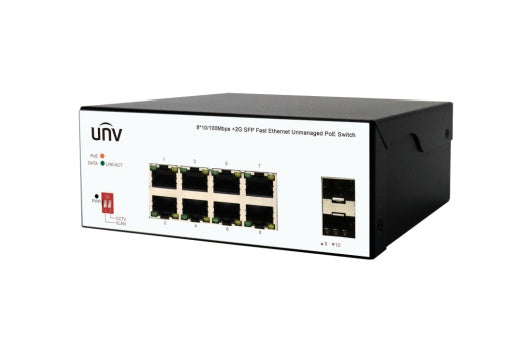

ISW2000-8T2GP-POE-IN

PoE supports IEEE 802.3af/at standards and provides a maximum output of 30W for each port;
Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control；
Multiple working modes to address your business needs: VLAN、CCTV
VLAN mode: Downlink ports can communicate only with uplink ports.
CCTV mode: The port is forced to speed down to 10Mbps transmission rate. Data transmission and power supply distance up to 250 meters.Downlink ports can communicate only with uplink ports.
Panel indicators monitor working status and assist in fault analysis;
Operating temperature: -20℃~60℃;

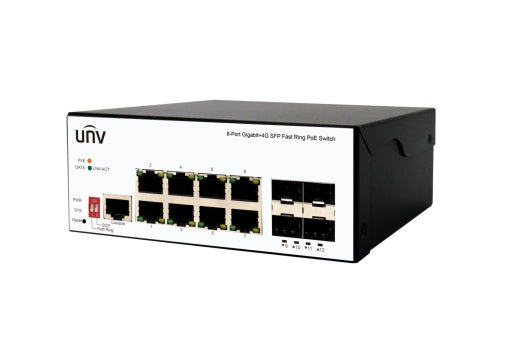

ISW5000-8GT4GP-POE-IN

PoE supports IEEE 802.3af/at standards and provides a maximum output of 30W for each port;
Data transmission and power supply distance up to 100 meters;
Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control；
Panel indicators monitor working status and assist in fault analysis;
Supports one-click ring network and one-click storm suppression, featuring redundancy and high reliability;
Highly reliable design, supporting traditional STP/MSTP/RSTP Layer 2 link protection technology;
Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup;
Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH;
Supports WEB management, which is simple and efficient, and facilitates installation and debugging by engineering and maintenance personnel;
Supports file upload and download management through TFTP;

Specifications

Hardware Specification

ISW2000-4T2GP-POE-IN

Model	ISW2000-4T2GP-PoE-IN
Standard	IEEE802.3、IEEE802.3u、IEEE802.3z、IEEE802.3ab、IEEE802.3x、IEEE802.3af、IEEE802.3at
Interface	410/100Mbps RJ45 Ports 21000Mbps SFP Slots
Indicator	PWR, LNK/ACT, PoE,DATA
Network Media	10BASE-T: UTP category 3,4,5 cable（≤100m） 100BASE-TX: UTP category 5, 5e cable（≤100m） 1000BASE-X: MMF, SMF
MAC Address Table	4K, Auto-learning, Auto-updating
Jumbo Frame	16KBytes
Packet Buffer	2M bit
Transfer Mode	Store-and-forward
Packet Forward Speed	3.57Mpps
Switching Capacity	4.8Gbps
Dimensions(LWH)	14510958mm
Fan Quantity	Fanless
PoE Power Budget	65W
PoE Port	Port 1~4
PoE Power On RJ45	Mode A 1/2（+），3/6（-）
PoE Power Output	30W（MAX）
Input Power Supply	DC:48-57V
Max.Power	75W
Operating Temperature	-20°C ~ 60 °C
Storage Temperature	-40 °C ~ 80 °C
Operating Humidity	5% ~ 95% non-condensing
Storage Humidity	0% ~ 95% non-condensing
Surge Protection	Differential mode ±2KV Common mode ±4KV
MTBF	>100000 hour
Electrostatic Standard	Contact ±6KV,Air ±8KV

ISW2000-8T2GP-POE-IN

Model	ISW2000-8T2GP-PoE-IN
Standard	IEEE802.3、IEEE802.3u、IEEE802.3z、IEEE802.3ab、IEEE802.3x、IEEE802.3af、IEEE802.3at
Interface	810/100Mbps RJ45 Ports 21000Mbps SFP Slots
Indicator	PWR, LNK/ACT, PoE
Network Media	10BASE-T: UTP category 3,4,5 cable（≤100m） 100BASE-TX: UTP category 5, 5e cable（≤100m） 1000BASE-X: MMF, SMF
MAC Address Table	4K, Auto-learning, Auto-updating
Jumbo Frame	16KBytes
Packet Buffer	2M bit
Transfer Mode	Store-and-forward
Packet Forward Speed	4.17Mpps
Switching Capacity	5.6Gbps
Dimensions(LWH)	14510958mm
Fan Quantity	Fanless
PoE Power Budget	120W
PoE Port	Port 1~8
PoE Power On RJ45	Mode A 1/2（+），3/6（-）
PoE Power Output	30W（MAX）
Input Power Supply	DC:48-57V
Max.Power	135W
Operating Temperature	-20°C ~ 60 °C
Storage Temperature	-40 °C ~ 80 °C
Operating Humidity	5% ~ 95% non-condensing
Storage Humidity	0% ~ 95% non-condensing
Surge Protection	Differential mode ±2KV Common mode ±4KV
MTBF	>100000 hour
Electrostatic Standard	Contact ±6KV,Air ±8KV

ISW5000-8GT4GP-POE-IN

Model	ISW5000-8GT4GP-PoE-IN
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at
Interface	810/100/1000Mbps RJ45 Ports 41000Mbps SFP Slots 1 Console Port
Indicator	PWR, LNK/ACT, PoE,SYS
Network Media	10BASE-T: UTP category 3,4,5 cable（≤100m） 100BASE-TX: UTP category 5, 5e cable（≤100m） 1000BASE-T: UTP category 5e, 5 cable（≤100m） 1000BASE-X: MMF, SMF
MAC Address Table	8K, Auto-learning, Auto-updating
Jumbo Frame	9KBytes
Packet Buffer	4.1M bit
Transfer Mode	Store-and-forward
Packet Forward Speed	17.86Mpps
Switching Capacity	24Gbps
Dimensions(LWH)	14510962.3mm ,Black iron shell
Fan Quantity	Fanless
PoE Power Budget	120W
PoE Port	Port 1~8
PoE Power On RJ45	Mode A 1/2（-），3/6（+）
PoE Power Output	30W（MAX）
Input Power Supply	DC:48-57V
Max.Power	135W
Operating Temperature	-20°C ~ 60 °C
Storage Temperature	-40 °C ~ 80 °C
Operating Humidity	5% ~ 95% non-condensing
Storage Humidity	0% ~ 95% non-condensing
Surge Protection	Differential mode ±2KV Common mode ±4KV
MTBF	>100000 hour
Electrostatic Standard	Contact ±6KV,Air ±8KV

Software Specification

ISW5000-8GT4GP-POE-IN

Layer 2	MAC	MAC Aging Time
		MAC Filter
		MAC Notification
	Basic Management	Console/Telnet/SSH
		Http/Https、SSL/TLS
		FTP/TFTP
		Syslog
		SNMP(v1/v2c/v3)、SNMP Trap
		SNTP/NTP
		CPU protect
		Software/Hardware watchdog
		Firmware Upgrade/Backup
		Ping/Traceroute
	Port Config	Bandwidth Control
		Flow Control
		EEE
		MTU
		CFM(802.1ag)
		EFM OAM(802.3ah)
		DDM
		Storm Control
		Port Isolation
		Port Security
		Virtual Cable Test
		ULDP
	Discovery	LLDP(802.1ab)
	Discovery	LLDP-MED
	Link Aggregation	Static
		LACP(802.3ad)
		Load Balance(src-mac/dst-mac/src-ip/dst-ip)
		Max groups and ports per group
	VLAN	VLAN(802.1Q 4K)
		Access/Trunk/Hybrid
		Private VLAN
		VLAN Filter
		MAC-based VLAN
		Protocol-based VLAN
		IP Subnet-based VLAN
		Voice VLAN
		GVRP/GMRP
		QinQ/Selective-QinQ/Flexible QinQ
		VLAN Translation/N:1 VLAN Translation
		Guest VLAN
	Network Loop Detection	Loopback Detection
	Network Loop Detection	ERPS
	Spanning Tree	STP/RSTP/MSTP
		MSTP Support 64 instance
		BPDU Guard/Root Guard/BPDU Tunnel
	ARP	Static ARP
		ARP Scanning Prevention
		ARP Spoofing Prevention
		ARP Guard
		Gratuitous ARP
		Dynamic ARP Inspection
		ARP Quantity Control
IPv4 Related Function	ICMP	Anti ICMP Attack
		ICMP Rate Limit
		ICMP Unreachable Drop
	IP Forward	Static Route
	IP Forward	Route Aggregation
	Multicast VALN	Multicast VALN
	IGMP	IGMP SNOOPING V1/V2/V3
		Fast Leave
		IGMP Proxy
	DHCP	DHCP Server
		DHCPv4 Client/BOOTP
		DHCPv4 Relay
		DHCPv4 Snooping
		DHCPv4 Option 82/43/60/61/67
IPv6 Related Function	IPv6 Basic	IPv6 ND Snooping
	DHCPv6	DHCPv6 Relay
		DHCPv6 Snooping
		IPv6 SAVI
		Security RA
		DHCPv6 Server
	IPv6 Unicast Routing	Static Route
	IPv6 Multicast Routing	MLD v1/V2 Snooping
	IPv6 Features	SNMP over IPv6 Support
		HTTP over IPv6 Support
		SSH over IPv6 Support
		DNS over IPv6 Support
		IPv6 ping/traceroute Support
		IPv6 Telnet Support
		IPv6 Radius+ Support
		IPv6 Tacacs+ Support
		IPv6 SNTP/NTP Support
		IPv6 FTP/TFTP Support
		IPv6 IPSec Support
		IPv6 ACL
QoS(Quality Of Service)	Basic	Trust COS/DSCP
	Basic	Trust Port
	Scheduling	SP
		WRR
		WDRR
	PolicyMap Stream	Based on VLAN
		Based on COS/DSCP
		Aggregate PolicyMap
		Ingress PolicyMap
	Policing	CAR Stream Shaping(leak algorithm)
	Policing	Ingress Policing
	Rewrite	COS/802.1p Priority
		IP Precedence
		IPv4 DSCP/IPv6 DSCP
		drop-precedence
		internal-priority
		Ingress/Egress Rewrite
	Queuing	DSCP to DSCP mapping
		DSCP to DP mapping
		DSCP to Queue mapping
		COS to DP mapping
		COS to Queue mapping
ACL	IP-ACL	SIP/DIP
		IP Protocol
		IP Priority(DSCP,TOS, Precedence)
		TCP,UDP src,dst Port
	MAC-ACL	SRC/DST MAC
		VLAN
		COS
		Tag/Untag
	IP-MAC ACL	MAC-ACL and IP-ACL
	User-defined ACL	Base on user defined profile
	ACL Features	Based on time period ACL
		ACL on VLAN
		Based on ACL Stream
Security	802.1x	Port Based Authentication
		Support EAPoR
		MAC based Authentication
		Guest VLAN
	MAB	Based on Port Authentication
	MAB	Based on MAC Authentication
	MAC Address Count Limit	Based on Port
	MAC Address Count Limit	Based on VLAN
	IP Address Count Limit	Based on Port
	IP Address Count Limit	Based on VLAN
	Access Management	Based on source mac and IP address
	Deny DoS Attack	TCP Flag
		TCP Flagment
		IP Segment
		ICMP
	TACACS+	Standard Support
	Radius	Standard Support
	Radius	Client, Support MD5
	SSL	Openssl 1.1.0
Redundancy Related Function	MRPP	Compatiable ERRP
	ULPP	Uplink Protection Protocol
	ULPP	Smart Link/Monitor Link
	ULSM	Uplink State Monitor
Flow Monitor Function	Mirror	Support one to one, multi to one
		Port based mirror, support ingress, egress, and both
		CPU based mirror
		Flow based mirror
		RSPAN
PoE	PoE Management	ON/OFF Config
		Alive Checking for PD
		7/24 On/Off Scheduling
