NSW2010 Series gigabit

Name: NSW2010 Series gigabit
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Description
Reviews

Description

Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
Supports PoE Power up to 30W for each PoE port;
Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
Line-speed forwarding, intelligent identification
Supports storage – and- forward for Data exchange;
Support RJ45 Auto-MDI/MDIX

Specifications

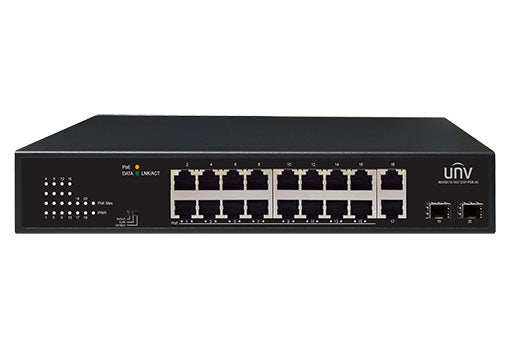

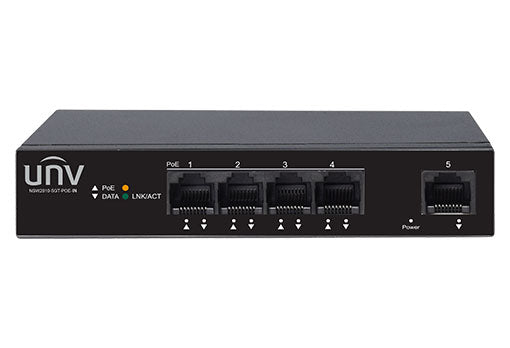

Model	NSW2010-5GT-POE-IN	NSW2010-10GT-POE-IN	NSW2010-18GT2GP-POE-IN	NSW2010-26GT2GC-POE-IN
Ports	4×1000Mbps PoE ports (RJ45)+1×1000Mbps ports(RJ45)	8×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)	16×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports（SFP）	24×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports（Combo）
Standards	IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at		IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
Switching capacity	10Gbps	20Gbps	40Gbps	56Gbps
Forwarding performance	7.44Mpps	14.88Mpps	29.76Mpps	41.7Mpps
Packet Buffer	1M bit	2Mbit	4M bit	4Mbit
MAC	2K	2K	8K	8K
Dimensions (W×D×H)	140mm x 76.7mm x 27.7mm (5.5"×3"×1.1")	220mm x 150mm x 44mm (8.7"×5.9"×1.7")	280mm x 180mm x 44mm (11"×7.1"×1.7")	440mm x 207mm x 44mm (17.3"×8.1"×1.7")
Weight	<1kg	<1.24kg	<4.2kg	<5kg
Input Voltage	AC: 100-240V, 50/60Hz
MAX. Power	65W	130W	200W	400W
PoE	802.3at/af，Mode A：1/2+，3/6-
Max. PoE Power	Max capacity: 60W Max capacity for single port: 30W	Max capacity: 120W Max capacity for single port: 30W	Max capacity: 185W Max capacity for single port: 30W	Max capacity: 370W Max capacity for single port: 30W
Cooling Fans	0	1	1	2
Operating Temperature	0°C ~ 40 °C
Storage Temperature	-40 °C ~ 70 °C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Indicator	PWR(Green), LNK/ACT(Green), PoE(Orange)
Working Mode	No	Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
