MikroTik

hEX S

5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, MicroSD, RouterOS L4, IPsec Hardware Encryption Support And The Dude Server Package
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
  • Description

Description

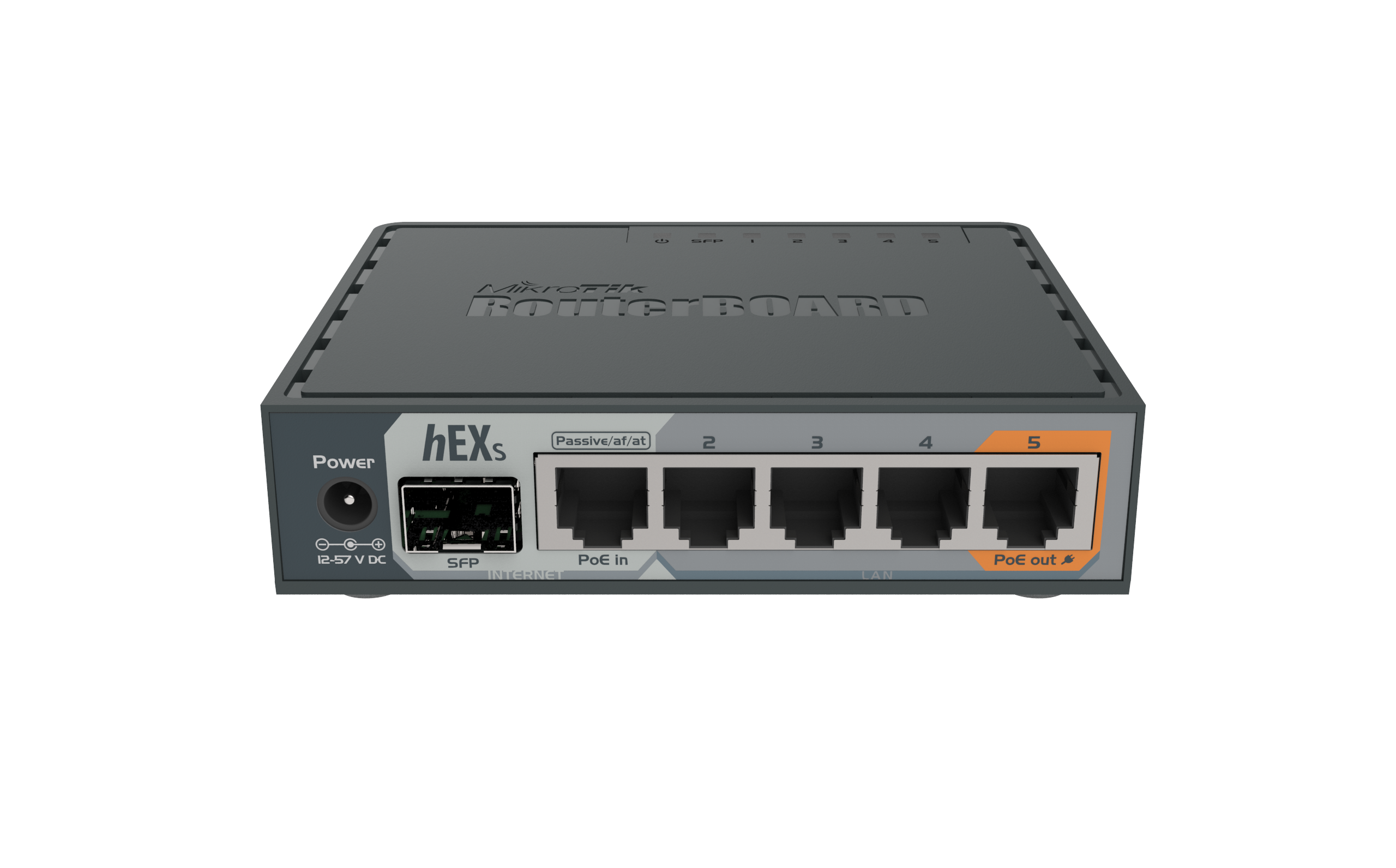

hEX S: 5-Port Gigabit Ethernet Router with SFP and PoE
  • 5 Gigabit Ethernet ports with PoE output on port #5
  • SFP port for optical fiber connectivity
  • USB 2.0 port for added functionality
  • Powerful dual-core 880 MHz CPU and 256 MB RAM
  • Supports advanced RouterOS configurations
  • Compact, affordable, and easy to use
  • Ideal for wired networks without wireless needs
A robust and versatile wired router for demanding applications, offering advanced features, PoE capabilities, and SFP connectivity.


Specifications

Details
Product code RB760iGS
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
Switch chip model MT7621A
Dimensions 113 x 89 x 28 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $79.00

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 24 W
Max power consumption without attachments 6 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V

PoE-out

Details
PoE-out ports Ether5
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 500 mA
Max out per port output (input 30-57 V) 500 mA
Max total out (A) 500 mA

Ethernet

Details
10/100/1000 Ethernet ports 5

Fiber

Details
SFP ports 1

Peripherals

Details
Memory card type microSD
Memory Cards 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20
