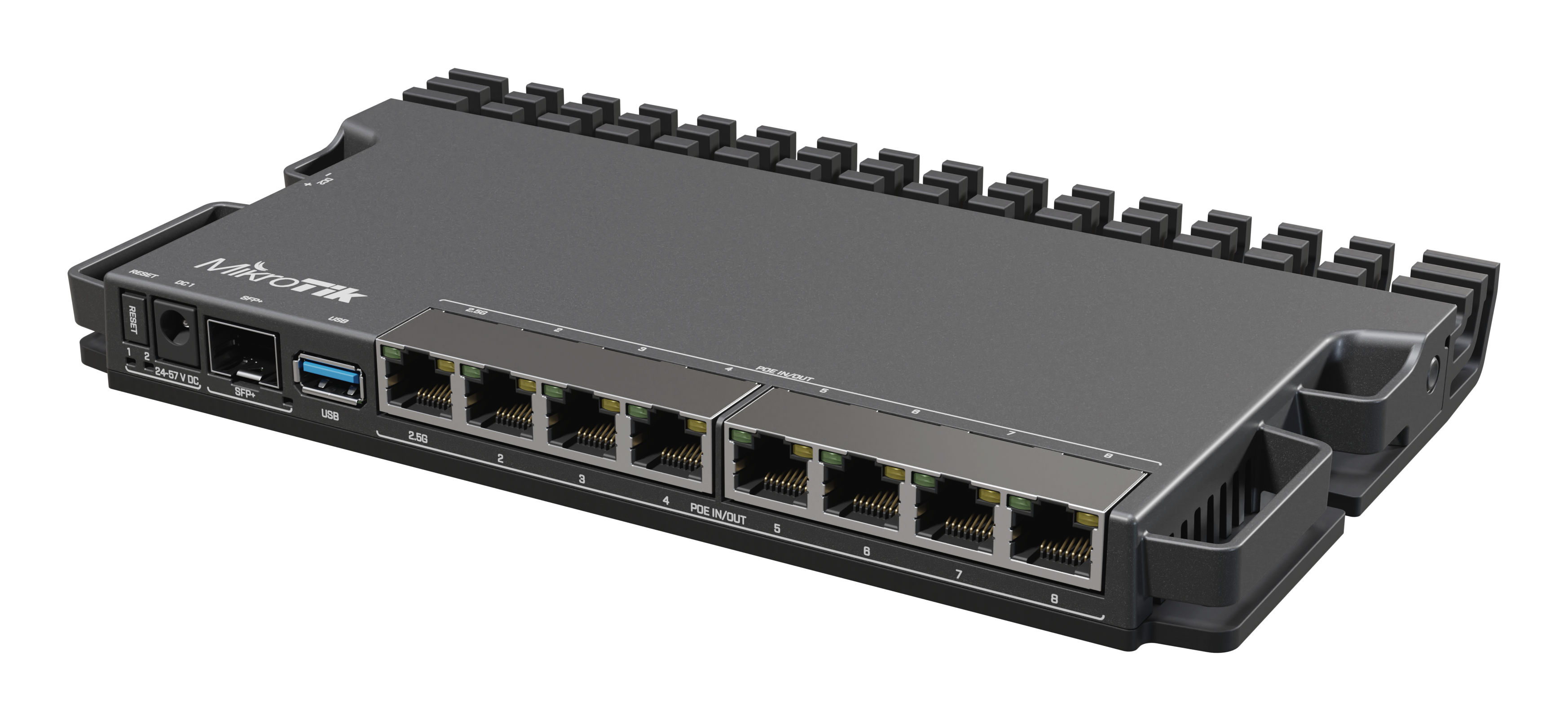

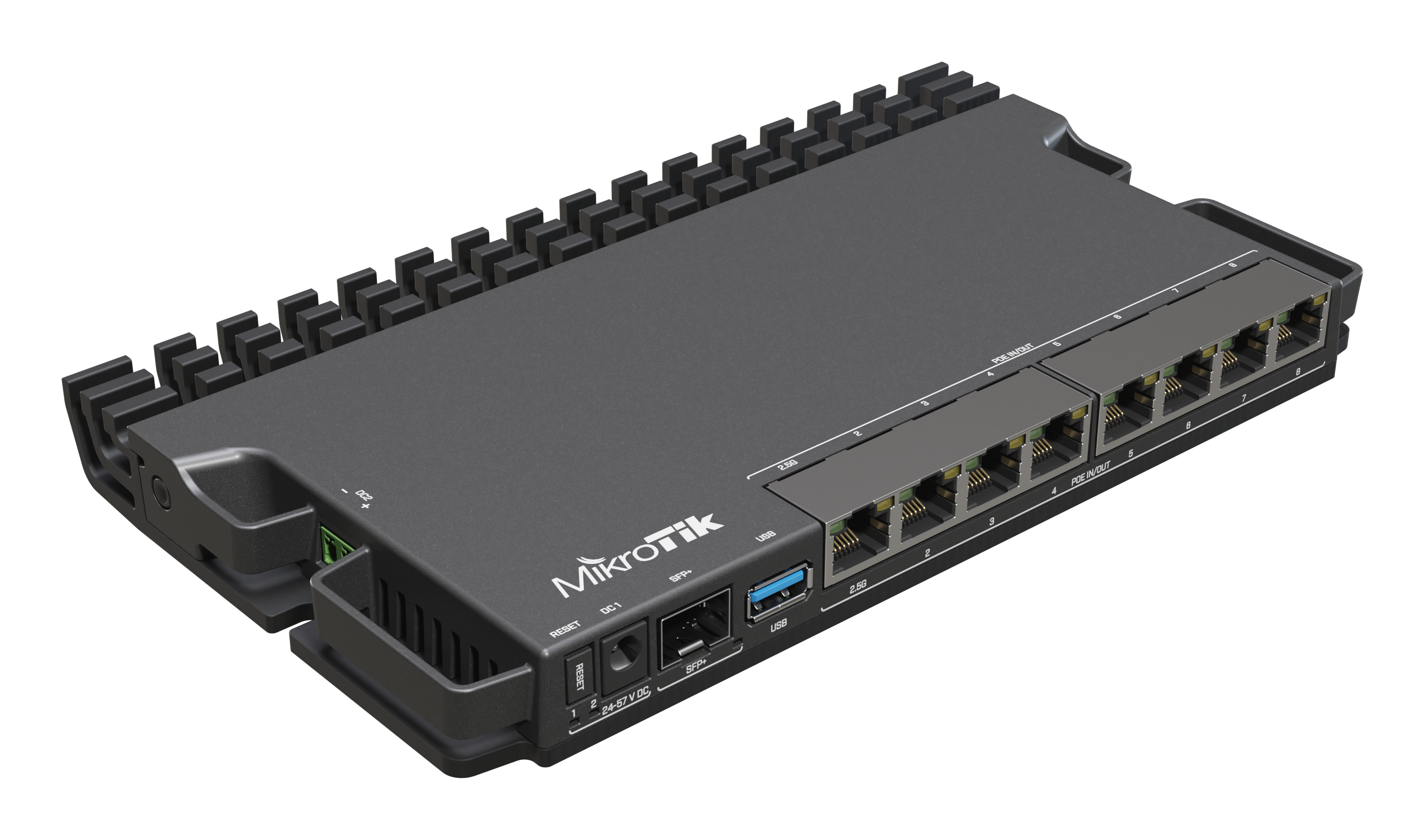

RB5009UPr+S+IN A new version of our popular heavy-duty RB5009 router with PoE-in and PoE-out on all ports. Perfect for small and medium ISPs. 2.5 Gigabit Ethernet & 10 Gigabit SFP+, numerous powering options.

MikroTik

RB5009UPr+S+IN

Name: RB5009UPr+S+IN
Brand: MikroTik
Availability: InStock
Rating: 5.0 (10 reviews)

A New Version of Our Popular Heavy-Duty RB5009 Router With PoE-In and PoE-Out on All Ports. Perfect for Small And Medium ISPs. 2.5 Gigabit Ethernet & 10 Gigabit SFP+, Numerous Powering Options

Contact Now

DataSheet PDF

Description
Reviews

Description

Unleash the Power

The RB5009 takes it to the next level with its advanced features:

Gigabit Ethernet, 2.5 Gigabit Ethernet, and 10 Gigabit SFP+ cage for fiber connectivity
PoE-in & PoE-out on all eight Ethernet ports
10 separate power options, including dual redundant power supplies
Wide voltage range of 24-57V, with automatic fallback to secondary power sources
Up to 25W of power per PoE-out port, with a combined limit of 130W
Manual power source prioritization for maximum flexibility

Reliability and Redundancy

Automatic power source failover for uninterrupted uptime
PoE-out devices draw power from the highest voltage source, with fallback options
Board reserves 20W to power itself, with manual port priority for PoE-out devices

Compact and Versatile

Tiny form-factor perfect for confined spaces or large server rooms
Mount four RB5009 routers in a single 1U rackmount space

Empowering Small and Medium ISPs

Cost-effective and robust solution for GPON replacement
Ideal addition to the GPEN device family, designed for small and medium ISPs.

Specifications

Details:

Product code	RB5009UPr+S+IN
Architecture	ARM 64bit
CPU	88F7040
CPU core count	4
CPU nominal frequency	350-1400 (auto) MHz
Switch chip model	88E6393
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	1 GB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
IPsec hardware acceleration	Yes
Suggested price	$299.00

Powering

Details:

Number of DC inputs	3 (DC jack, 2-pin terminal, PoE-IN)
DC jack input Voltage	24-57 V
2-pin terminal input Voltage	24-57 V
Max power consumption	150 W
Max power consumption without attachments	16 W
Cooling type	Passive
PoE in	802.3af/at (ether1), Mode B (ether2-ether8)
PoE in input Voltage	24-57 V

PoE-out

Details:

PoE-out ports	Ether1-Ether8
PoE out	802.3af/at
Max out per port output (input 18-30 V)	640 mA
Max out per port output (input 30-57 V)	420 mA
Max total out (A)	2.59 A
Total output current	2.28
Total output power	130

Ethernet

Details:

10/100/1000 Ethernet ports	7
Number of 1G Ethernet ports with Reverse PoE (PoE-in)	7
Number of 2.5G Ethernet ports	1
Number of 2.5G Ethernet ports with Reverse PoE (PoE-in)	1
