RB5009UPr+S+OUT An outdoor version of our best-selling heavy-duty PoE router. Extensive power redundancy for the best price! 7x Gigabit Ethernet ports, 1x 2.5 Gigabit Ethernet, 10G SFP+, 1GB of RAM, 1GB NAND, modern quad-core CPU, 9 (!) powering options, durable IP66 waterproof enclosure.

MikroTik

RB5009UPr+S+OUT

Name: RB5009UPr+S+OUT
Brand: MikroTik
Availability: InStock
Rating: 5.0 (10 reviews)

An outdoor version of our best-selling heavy-duty PoE router. Extensive power redundancy for the best price! 7x Gigabit Ethernet ports, 1x 2.5 Gigabit Ethernet, 10G SFP+, 1GB of RAM, 1GB NAND, modern quad-core CPU, 9 (!) powering options, durable IP66 waterproof enclosure

Contact Now

DataSheet PDF

Description
Reviews

Description

Protect Your Network from the Unpredictable

As a network administrator, you know that unexpected weather conditions and power outages can strike at any moment. But with the right tools, you can safeguard your network from most troubles! Our ideal solution would have:

Easy deployment
Weather resistance (ANY weather)
Extensive power redundancy
Multiple networking interface options
Strong CPU for powerful networking software (RouterOS v7)
Affordable pricing

We're excited to introduce the RB5009UPr+S+OUT, which meets all these requirements! This compact, cost-effective device is perfect for revolutionizing your network tower setups. You get one of the most powerful outdoor networking devices on the market at an unbeatable price!

Key Features:

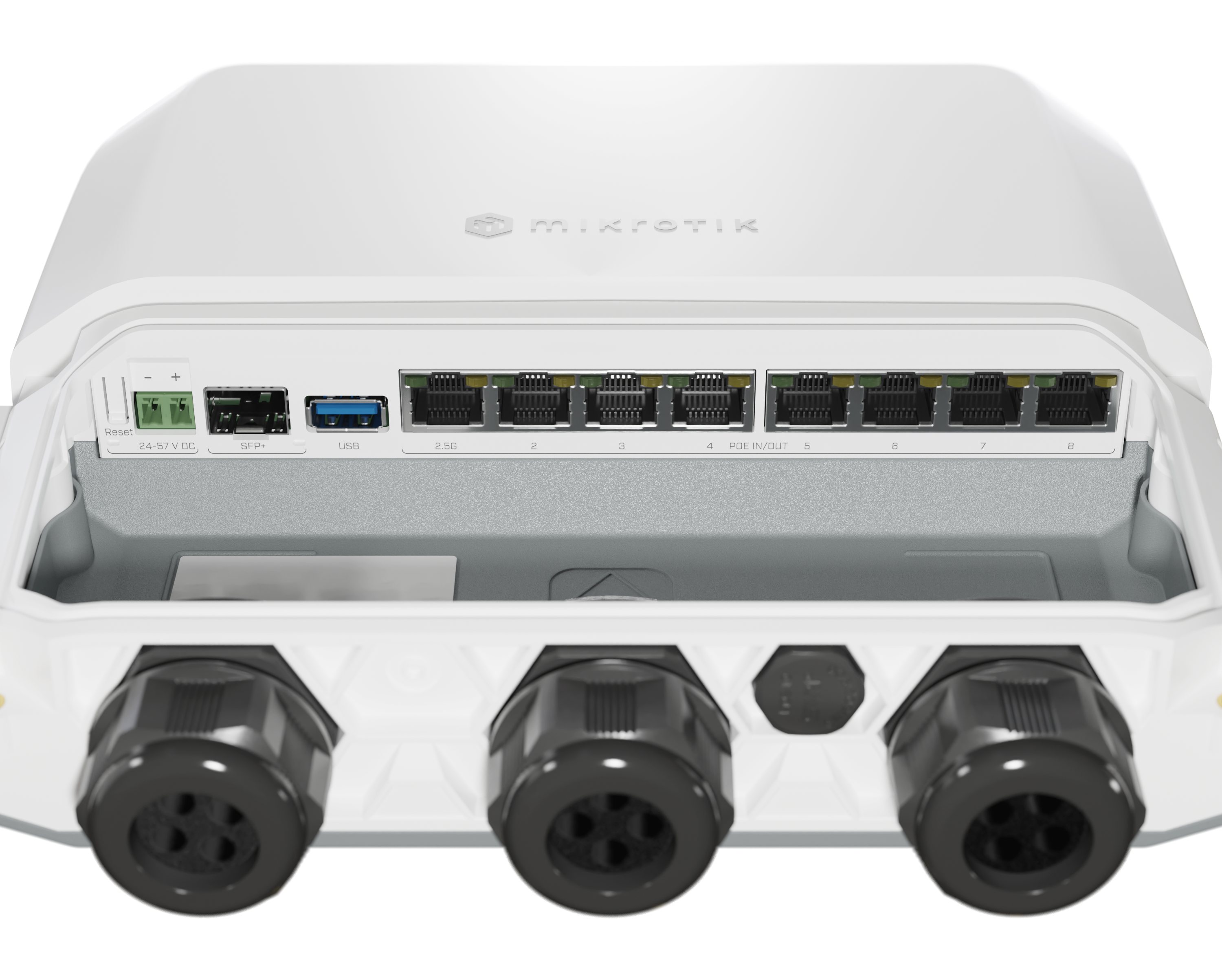

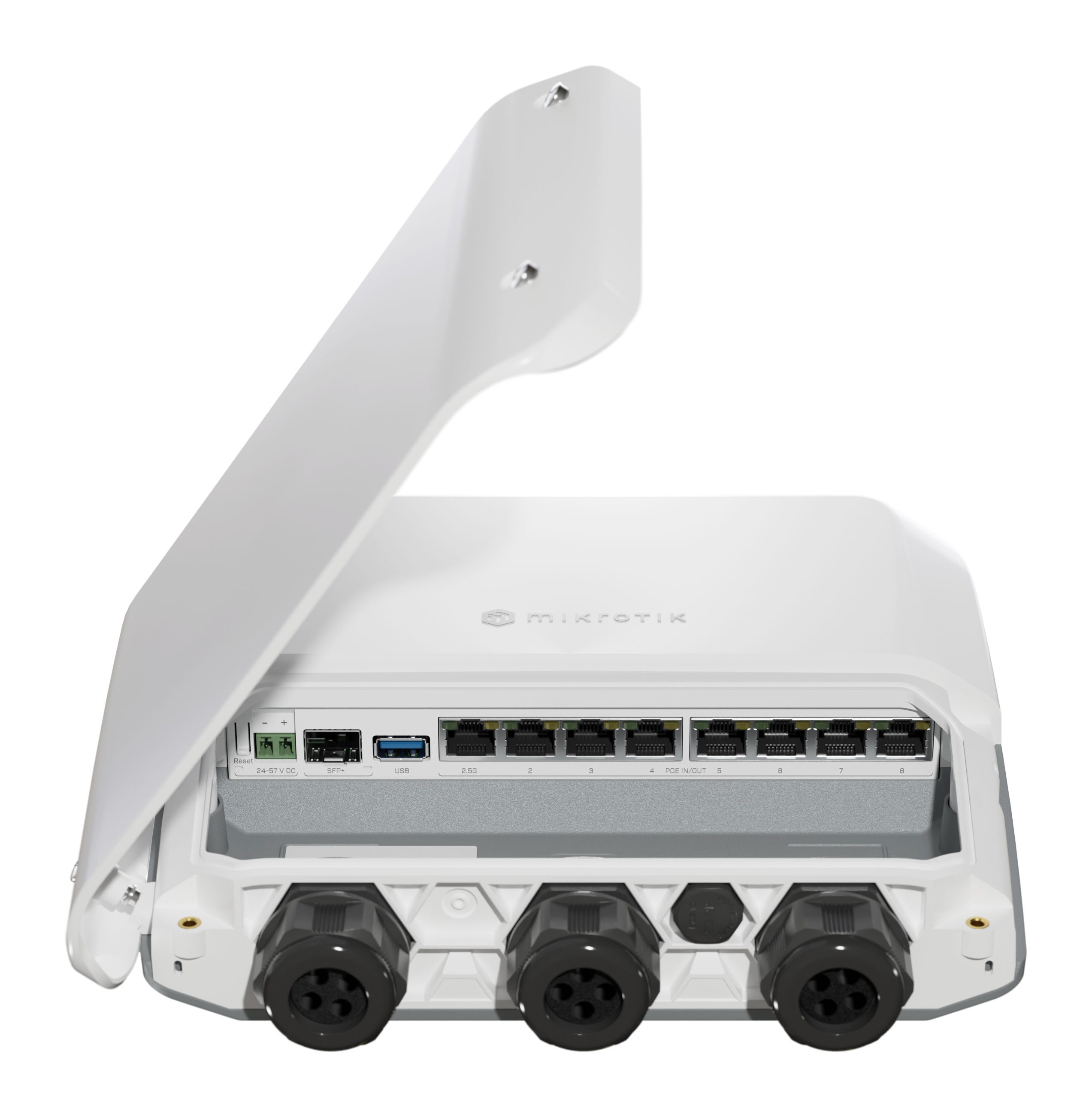

7x Gigabit Ethernet ports
1x 2.5 Gigabit Ethernet port
10G SFP+ cage
Full-sized USB3 port
9 possible power sources (2-pin connector, PoE-in, and PoE-out on all Ethernet ports)
Unprecedented power redundancy (stay online even if 8 power sources fail)
Wide voltage range support (24-57V)
PoE-out ports supply up to 25W each (total limit: 130W)
Single voltage PoE-out (802.3at/af compatible or low-voltage PoE-out)

Upgrade Your Network Today!

Specifications

Details:

Product code	RB5009UPr+S+OUT
Architecture	ARM 64bit
CPU	88F7040
CPU core count	4
CPU nominal frequency	350-1400 (auto) MHz
Switch chip model	88E6393
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	1 GB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes
Suggested price	$319.00

Powering

Details:

Number of DC inputs	2 (PoE-IN, 2-pin terminal)
2-pin terminal input Voltage	24-57 V
Max power consumption	150 W
Max power consumption without attachments	15 W

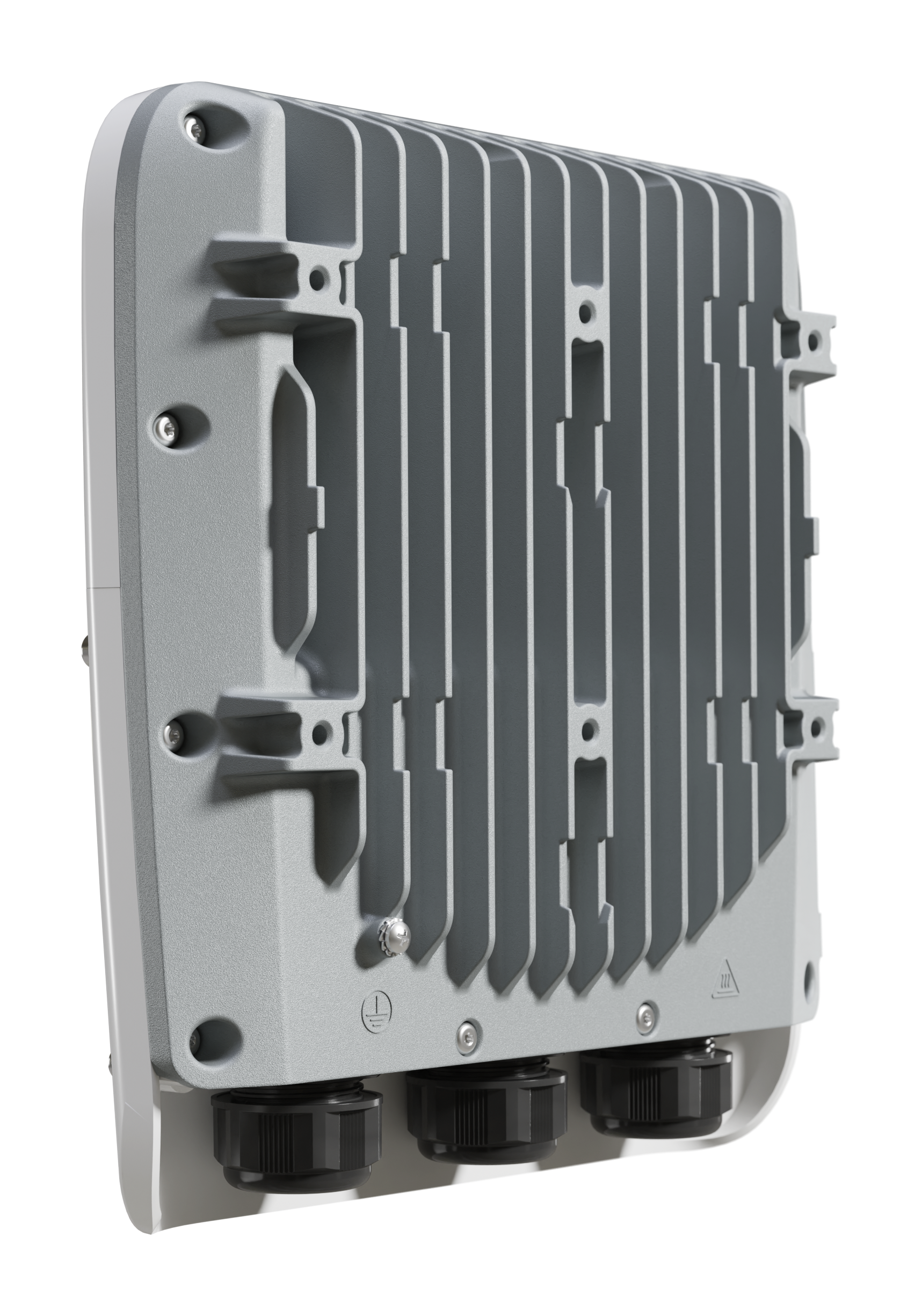

Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	24-57 V

PoE-out

Details:

PoE-out ports	Ether1-Ether8
PoE out	802.3af/at
Max out per port output (input 18-30 V)	620 mA
Max out per port output (input 30-57 V)	420 mA
Max total out (A)	2.59 A
Total output current	2.28
Total output power	120

Ethernet

Details:

10/100/1000 Ethernet ports	7
Number of 1G Ethernet ports with Reverse PoE (PoE-in)	7
Number of 2.5G Ethernet ports	1
Number of 2.5G Ethernet ports with PoE-out	1
