Uniview
IPC2324LB-ADEZK-H

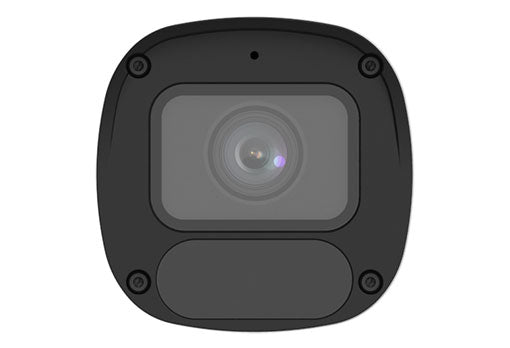

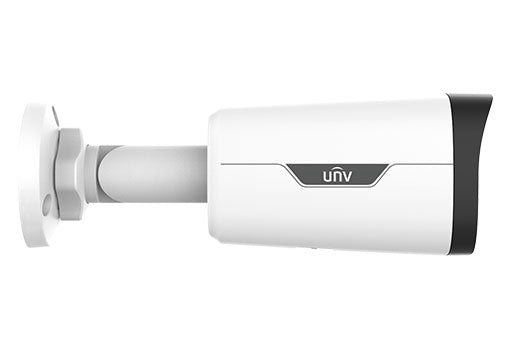

4MP HD IR VF Bullet Network Camera
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
Description
4MP HD IR VF Bullet Network Camera
High quality image with 4MP, 1/3"CMOS sensor
4MP (2688*1520) @25/20fps; 4MP (2560*1440) @25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
Ultra 265, H.265, H.264, MJPEG
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Alarm:1 in/1 out, Audio: 1 in/1 out
Smart IR, up to 50m (164ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis
Specification
| IPC2324LB-ADEZK-H | ||||||||
| Camera | ||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||
| Minimum Illumination | Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR on |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| WDR | 120dB | |||||||
| S/N | >52 dB | |||||||
| Lens | ||||||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||||
| Iris | Fixed | |||||||
| Field of View (H) | 86.3°~35.2° | |||||||
| Field of View (V) | 47.1°~17.0° | |||||||
| Field of View (D) | 91.9°~38.6° | |||||||
| DORI | ||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 63(206.7ft) | 25.2(82.7ft) | 12.6(41.3ft) | 6.3(20.7ft) | ||||
| 12 | 270.0(885.8ft) | 108.0(354.3ft) | 54.0(177.2ft) | 27.0(88.6ft) | ||||
| Illuminator | ||||||||
| IR Range | Up to 50m (164ft) | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
|||||||
| Video Bit Rate | 128 Kbps~6 Mbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Video Stream | Dual streams | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
| Dewarping | N/A | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital Defog | |||||||
| Events | ||||||||
| Basic Detection | Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio Detection | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | N/A | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 256GB | |||||||
| Network Storage | ANR, NAS(NFS) | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, RTMP,SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||||
| Client | EZStation EZView EZLive |
|||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||
| Interface | ||||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | ||||||||
| Alarm I/O | 1/1 | |||||||
| RS485 | N/A | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | N/A | |||||||
| WIFI | N/A | |||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
| Certifications | ||||||||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
|||||||
| Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 9.6W | ||||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||||
| Dimensions (L × W × H) | 206 × 73 × 73mm (8.1” × 2.9” × 2.9”) | |||||||
| Weight | 0.51kg(1.12lb) | |||||||
| Material | Graphene + Metal | |||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 6KV | |||||||
| Reset Button | Support | |||||||
