Uniview
IPC3614LE-ADF28(40)K

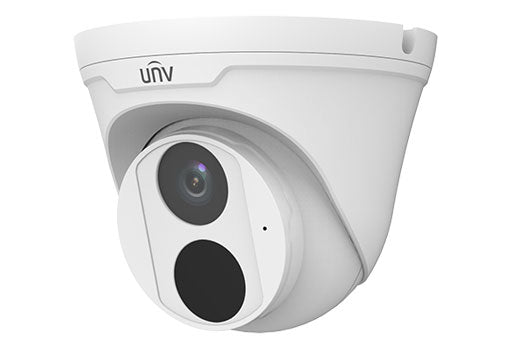

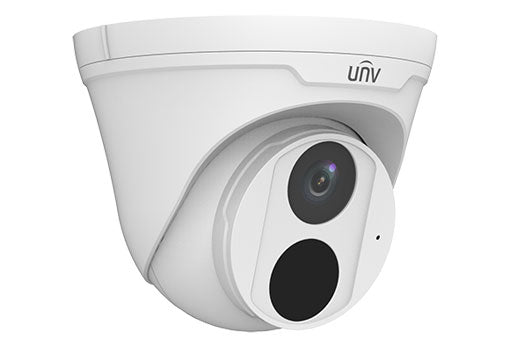

4MP EasyStar Fixed Dome Network Camera
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
- Description
- Reviews
Description
4MP EasyStar Fixed Dome Network Camera
Optics
Day/night functionality
Smart IR, up to 30m (98ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.265, H.264, MJPEG
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IP67
Specification
IPC3614LE-ADF28K | IPC3614LE-ADF40K | ||||||||
Camera | |||||||||
Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||||||
Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | |||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
2.8 | 63 | 25.2 | 12.6 | 6.3 | |||||
4.0 | 90 | 36 | 18 | 9 | |||||
Angle Of View (H) | 105.3° | 79.7° | |||||||
Angle Of View (V) | 57° | 41.6° | |||||||
Angle Of View (O) | 136.9° | 98.0° | |||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
Minimum Illumination | Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR |
||||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
Digital noise reduction | 2D/3D DNR | ||||||||
S/N | >52dB | ||||||||
IR Range | Up to 30m (98ft) IR range | ||||||||
Wavelength | 850nm | ||||||||
IR On/Off Control | Auto/Manual | ||||||||
Defog | Digital Defog | ||||||||
WDR | 120db | ||||||||
Video | |||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
H.264 Code Profile | Baseline profile, Main Profile, High Profile | ||||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 25fps |
||||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
OSD | Up to 4 OSDs | ||||||||
Privacy Mask | Up to 4 areas | ||||||||
ROI | Up to 4 areas | ||||||||
Motion Detection | Up to 4 areas | ||||||||
Image | |||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
Digital noise reduction | 2D/3D DNR | ||||||||
Smart IR | Support | ||||||||
Flip | Normal/Vertical/Horizontal/180° | ||||||||
Dewarping | Support | ||||||||
HLC | Supported | ||||||||
BLC | Supported | ||||||||
Network | |||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | ||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||||
Client | EZStation EZView EZLive |
||||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||||
Audio | |||||||||
Audio Compression | G.711 | ||||||||
Suppression | Supported | ||||||||
Sampling Rate | 8KHZ | ||||||||
Storage | |||||||||
Edge Storage | Micro SD, up to 256 GB | ||||||||
Network Storage | ANR | ||||||||
Interface | |||||||||
Network | 10/100M Base-TX Ethernet | ||||||||
Built-in Mic | Supported | ||||||||
Certifications | |||||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
||||||||
General | |||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
Power consumption: Max 3W | |||||||||
Dimensions (Ø x H) | Φ118 x 96mm (Φ4.6” x 3.8”) | ||||||||
Net Weight | 0.35kg (0.77lb) | ||||||||
Material | Front cover:metal Rear cover:plastic Bracket:plastic Bottom plate:metal |
||||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Surge Protection | 2KV | ||||||||
Ingress Protection | IP67 |
