Uniview
IPC328LE-ADF28(40)K-G

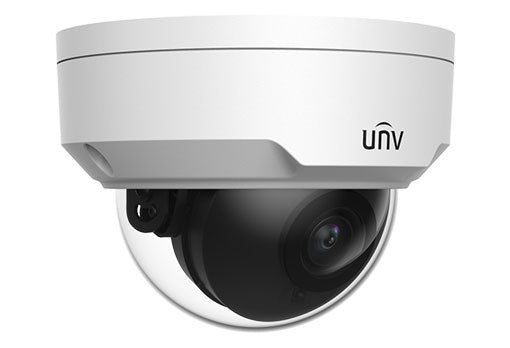

4K HD Vandal-resistant IR Fixed Dome Network Camera
Available:
Only 20 items in stock
20 items in stock
In stock
Out of stock
Back in stock
Description
4K HD Vandal-resistant IR Fixed Dome Network Camera
• High quality image with 8MP, 1/2.7"CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Easystar technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply
• 3-Axis
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Easystar technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply
• 3-Axis
Specification
| IPC328LE-ADF28K-G | IPC328LE-ADF40K-G | |||||||||
| Camera | ||||||||||
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS | |||||||||
| Minimum Illumination | Support Easystar: Colour: 0.005 lux ( F1.6, AGC ON) 0Lux with IR on |
|||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||||
| Adjustment angle | Pan: 8°~360° | Tilt: 0° ~ 68° | Rotate: 10° ~360° | |||||||
| S/N | >56dB | |||||||||
| WDR | 120dB | |||||||||
| Lens | ||||||||||
| Lens Type | 2.8mm @F1.6 | 4.0mm @F1.6 | ||||||||
| Iris | Fixed | |||||||||
| Field of View (H) | 112.9° | 91.2° | ||||||||
| Field of View (V) | 59.1° | 47.9° | ||||||||
| Field of View (D) | 121.2° | 95.9° | ||||||||
| DORI | ||||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||
| 2.8mm | 84 | 33.6 | 16.8 | 8.4 | ||||||
| 4.0mm | 120 | 48 | 24 | 12 | ||||||
| Illuminator | ||||||||||
| IR Range | Up to 30m (98ft) IR range | |||||||||
| Wavelength | 850nm | |||||||||
| IR On/Off Control | Auto/Manual | |||||||||
| Video | ||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||||
| U-code | Supported | |||||||||
| OSD | Up to 4 OSDs | |||||||||
| Privacy Mask | Up to 4 areas | |||||||||
| ROI | Up to 8 areas | |||||||||
| Video stream | Dual streams | |||||||||
| Image | ||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| Smart IR | Support | |||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||||
| HLC | Support | |||||||||
| BLC | Support | |||||||||
| Defog | Digital Defog | |||||||||
| Events | ||||||||||
| Basic Detection | Cross line, intrusion(based on human body detection) | |||||||||
| motion detection, Ultra motion detection, tampering alarm, audio detection | ||||||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | |||||||||
| Audio | ||||||||||
| Audio Compression | G.711U, G.711A | |||||||||
| Audio Bitrate | 64 Kbps | |||||||||
| Two-way Audio | N/A | |||||||||
| Suppression | Support | |||||||||
| Sampling Rate | 8KHZ | |||||||||
| Storage | ||||||||||
| Edge Storage | Micro SD, up to 256 GB | |||||||||
| Network Storage | ANR,NAS(NFS) | |||||||||
| Network | ||||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP | |||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||||||
| Client | EZStation EZView EZLive |
|||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||||
| Interface | ||||||||||
| Audio I/O | N/A | |||||||||
| Alarm I/O | N/A | |||||||||
| Serial Port | N/A | |||||||||
| Built-in Mic | Support | |||||||||
| Built-in Speaker | N/A | |||||||||
| WIFI | N/A | |||||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||||
| Video Output | N/A | |||||||||
| Certification | ||||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
|||||||||
| General | ||||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||
| Power consumption: Max 4.5W | ||||||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||||||
| Dimensions (Ø x H) | Φ109 x 83mm (Ø4.3” x 3.3”) | |||||||||
| Weight | 0.37kg (0.82lb) | |||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Surge Protection | 4KV | |||||||||
| Reset Button | Support | |||||||||
