Ultratech

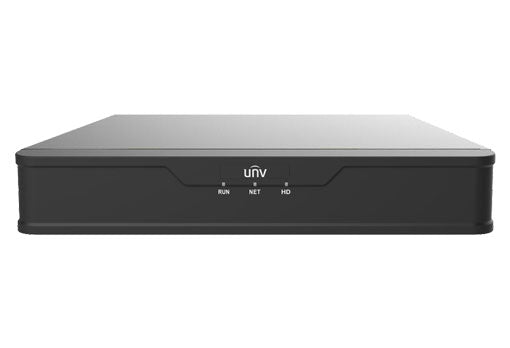

NVR301-S3 Series

Name: NVR301-S3 Series
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Description
Reviews

Specification

Decoding	Description
DecodingFormat	Ultra 265, H.265, H.264
DecodingCapability	NVR301‑04S3:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25 NVR301‑08S3:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30 NVR301‑16S3:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30, 16 x D1@25
AudioCompression	G.711A, G.711U
Network	Description
IncomingBandwidth	64Mbps
OutgoingBandwidth	48Mbps
RemoteUsers	128
Protocols	TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SMTP;RTSP
Browser(Plugin)	Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInput	Description
IPVideoInput	NVR301‑04S3:4‑ch NVR301‑08S3:8‑ch NVR301‑16S3:16‑ch
Video/AudioOutput	Description
HDMIOutput	HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGAOutput	VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
3.5mmAudioOutput	1‑ch
LiveviewDisplay	NVR301‑04S3:1/4 NVR301‑08S3:1/4/6/8/9 NVR301‑16S3:1/4/6/8/9/16
CorridorModeScreen	NVR301‑04S3:3/4 NVR301‑08S3:3/4/5/7/9 NVR301‑16S3:3/4/5/7/9/10/12/16
Snapshot	Description
FTP/Schedule/EventSnapshot	1‑ch snapshot, up to D1 resolution
Recording	Description
RecordingResolution	8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocal	NVR301‑04S3:4‑ch NVR301‑08S3:8‑ch NVR301‑16S3:16‑ch
Smart	Description
VCADetectionbyIPC	Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD)
VCASearch	Behavior Search
SmartbyIPC	Total 4‑ch(Face Detection, SIP, UMD)
CapacityofSnapshotRecords	2 millions records for face snapshot
Alarm	Description
GeneralAlarm	Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarm	IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
GUILanguage	Description
GUILanguage	21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
HardDisk	Description
SATA	1 SATA Interface
Capacity	Up to 10TB for each HDD(The maximum HDD capacity varies with environment temperature and hard disk size)
ExternalInterface	Description
NetworkInterface	1 RJ45 10M/100M self‑adaptive Ethernet Interface
USB	Rear panel: 2 x USB2.0
RS485	N/A
RS232	N/A
AlarmIn	N/A
AlarmOut	N/A
PowerSupply	DC 12V/2A
WorkingEnvironment	Description
WorkingTemperature	‑10 °C ~ 55 °C (14 °F ~ 131 °F)
WorkingHumidity	≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD)	≤ 5W
Dimensions	Description
Weight(withoutHDD)	≤ 0.98Kg (2.16lb)
Dimensions	260mm × 240mm × 46mm (10.2"×9.4"×1.8")
Certification	Description
Certification	CE;FCC;UL;RoHS;WEEE
CE	EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC	Part15 Subpart B
