Ultratech

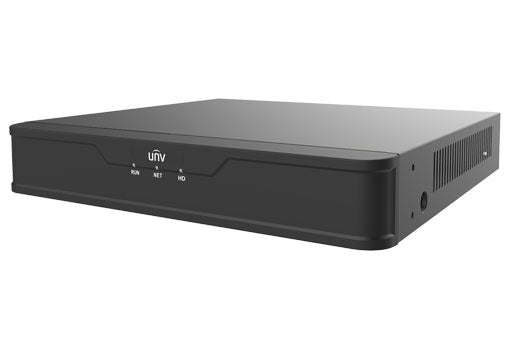

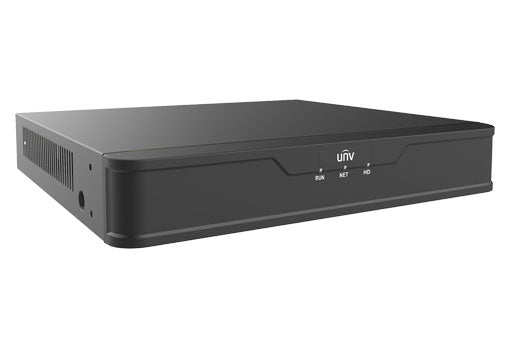

NVR301-X-P Series

Name: NVR301-X-P Series
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Description
Reviews

Specification

Decoding	Description
DecodingFormat	Ultra 265, H.265, H.264
DecodingCapability	NVR301‑04X‑P4:2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30 NVR301‑08X‑P8:2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080P@30
AudioCompression	G.711A, G.711U
Network	Description
IncomingBandwidth	80Mbps
OutgoingBandwidth	64Mbps
RemoteUsers	128
Protocols	TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP
Browser(Plugin)	Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInput	Description
IPVideoInput	NVR301‑04X‑P4:4‑ch NVR301‑08X‑P8:8‑ch
RCAAudioInput	1‑ch
Video/AudioOutput	Description
HDMIOutput	HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGAOutput	VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCAAudioOutput	1‑ch
LiveviewDisplay	NVR301‑04X‑P4:1/4 NVR301‑08X‑P8:1/4/6/8/9
CorridorModeScreen	NVR301‑04X‑P4:3/4 NVR301‑08X‑P8:3/4/5/7/9
Two-wayAudio	Description
Two-wayAudio	1‑ch, RCA(Using the audio input and output)
Snapshot	Description
FTP/Schedule/EventSnapshot	4‑ch snapshot, up to D1 resolution
Recording	Description
RecordingResolution	8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocal	NVR301‑04X‑P4:4‑ch NVR301‑08X‑P8:8‑ch
Smart	Description
VCADetectionbyIPC	Face Detection;People Counting(People Flow Counting, Crowd Density Monitoring);SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD)
VCASearch	Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report
SmartbyIPC	NVR301‑04X‑P4:Total 4‑ch(Face Detection, SIP, UMD) NVR301‑08X‑P8:Total 8‑ch(Face Detection, SIP, UMD)
Alarm	Description
GeneralAlarm	Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarm	IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
GUILanguage	Description
GUILanguage	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
HardDisk	Description
SATA	1 SATA Interface
Capacity	Up to 10TB for each HDD(The maximum HDD capacity varies with environment temperature and hard disk size)
ExternalInterface	Description
NetworkInterface	1 RJ45 10M/100M self‑adaptive Ethernet Interface
USB	Rear panel: 1 x USB3.0, 1 x USB2.0
RS485	N/A
RS232	N/A
AlarmIn	N/A
AlarmOut	N/A
PowerSupply	NVR301‑04X‑P4:DC 48V/1.35A NVR301‑08X‑P8:DC 52V/1.8A
PoE	Description
Interface	NVR301‑04X‑P4:4 RJ45 10M/100M self‑adaptive Ethernet Interface NVR301‑08X‑P8:8 RJ45 10M/100M self‑adaptive Ethernet Interface
MaxPower	NVR301‑04X‑P4:Max 30W for single port, Max 54W in total NVR301‑08X‑P8:Max 30W for single port, Max 75W in total
SupportedStandard	IEEE 802.3at, IEEE 802.3af
WorkingEnvironment	Description
WorkingTemperature	‑10 °C ~ 55 °C (14 °F ~ 131 °F)
WorkingHumidity	≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD)	≤ 9W
Dimensions	Description
Weight(withoutHDD)	≤ 1.1Kg (2.43lb)
Dimensions	260mm × 240mm × 47mm (10.2"×9.4"×1.9")
Certification	Description
Certification	CE;FCC;UL;RoHS;WEEE
CE	EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC	Part15 Subpart B
