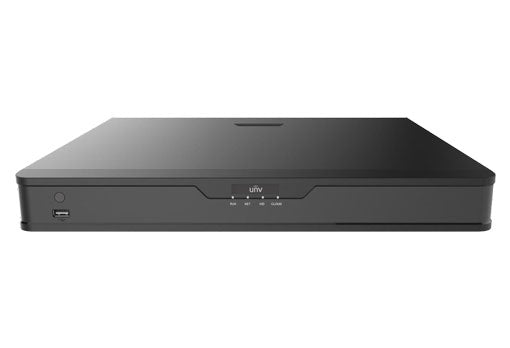

NVR302-S2-P Series

Name: NVR302-S2-P Series
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Description
Reviews

Specification

Decoding	Description
DecodingFormat	Ultra 265, H.265, H.264
DecodingCapability	NVR302‑08S2‑P8:2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30 NVR302‑16S2‑P16:2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30
AudioCompression	G.711A, G.711U
Network	Description
IncomingBandwidth	NVR302‑08S2‑P8:80Mbps NVR302‑16S2‑P16:160Mbps
OutgoingBandwidth	64Mbps
RemoteUsers	128
Protocols	TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP
Browser(Plugin)	Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInput	Description
IPVideoInput	NVR302‑08S2‑P8:8‑ch NVR302‑16S2‑P16:16‑ch
RCAAudioInput	1‑ch
Video/AudioOutput	Description
HDMIOutput	HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGAOutput	VGA:1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCAAudioOutput	1‑ch
LiveviewDisplay	NVR302‑08S2‑P8:1/4/6/8/9 NVR302‑16S2‑P16:1/4/6/8/9/16
CorridorModeScreen	NVR302‑08S2‑P8:3/4/5/7/9 NVR302‑16S2‑P16:3/4/5/7/9/10/12/16
Two-wayAudio	Description
Two-wayAudio	1‑ch, RCA(Using the audio input and output)
Snapshot	Description
FTP/Schedule/EventSnapshot	4‑ch snapshot, up to D1 resolution
Recording	Description
RecordingResolution	8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocal	NVR302‑08S2‑P8:8‑ch NVR302‑16S2‑P16:16‑ch
Smart	Description
VCADetectionbyIPC	Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);People Counting(People Flow Counting, Crowd Density Monitoring)
VCASearch	Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report
SmartbyIPC	Total 8‑ch(Face Detection, SIP, UMD)
Alarm	Description
GeneralAlarm	Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarm	IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
GUILanguage	Description
GUILanguage	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
HardDisk	Description
SATA	2 SATA Interfaces
Capacity	Up to 10TB for each HDD(The maximum HDD capacity varies with environment temperature)
ExternalInterface	Description
NetworkInterface	1 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USB	Rear panel: 1 x USB3.0;Front panel: 1 x USB2.0
RS485	N/A
RS232	N/A
AlarmIn	4‑ch
AlarmOut	1‑ch
PowerSupply	AC 100 ～ 240 V
PowerSwitch	Support
PoE	Description
Interface	NVR302‑08S2‑P8:8 RJ45 10M/100M self‑adaptive Ethernet Interface NVR302‑16S2‑P16:16 RJ45 10M/100M self‑adaptive Ethernet Interface
MaxPower	NVR302‑08S2‑P8:Max 30W for single port, Max 130W in total NVR302‑16S2‑P16:Max 30W for single port, Max 240W in total
SupportedStandard	IEEE 802.3at, IEEE 802.3af
WorkingEnvironment	Description
WorkingTemperature	‑10 °C ~ 55 °C (14 °F ~ 131 °F)
WorkingHumidity	≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD)	≤ 10W
Dimensions	Description
Weight(withoutHDD)	≤2.6kg (5.73lb)
Dimensions	NVR302‑08S2‑P8:380mm × 315mm ×53mm (15.0"× 12.4"×2.1" ) NVR302‑16S2‑P16:380mm × 315mm ×53mm (15.0"×12.4"×2.1" )
Certification	Description
Certification	CE;FCC;UL;RoHS;WEEE
CE	EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC	Part15 Subpart B
