Ultratech

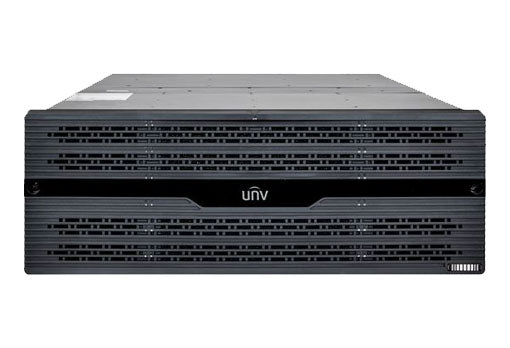

VX1600-C@V3 Series

Name: VX1600-C@V3 Series
Brand: Ultratech
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Contact Now

Description
Reviews

Specification

Item		VX1612-C@V3	VX1616-C@V3	VX1624-C@V3	VX1636-C@V3	VX1648-C@V3
performance	Video Mode	320-channel(640Mbps) recording, 160-channel(640Mbps) forwording, 32-channel(64Mbps)playback
	IPSAN Mode	192-channel(384Mbps) recording, 19-channel(38Mbps)playback
Storage controller		Intel 64-bit multi-core processor
Memory		4 GB
Front-end Service Interface		3 10/100/1000 Mbps Ethernet interface 4 port 2.5Gbps Ethernet interface module（optional）
HDD		12 SATA interfaces	16 SATA interfaces	24 SATA interfaces	36 SATA interfaces	48 SATA interfaces
Disk Capacity		1 TB, 2 TB, 3 TB, 4 TB , 5 TB, 6 TB,8TB,10TB,12TB,14TB,16TB,18TB,20TB
Video Management		Direct-to-iSCSI data block storage Video resource management Manual, scheduled, alarm-triggered recording Video download
Video Retrieval & Playback		Video retrieval Playback control (start, pause, stop, drag, single frame forward, multi-speed forward, and multi-speed back) Playback stream via UDP,TCP Playback video tag setting
RAID		JBOD and RAID 0,1, 5, 6 Dedicated hot-spare disk and global hot-spare disk
Maximum Number of Logic Resources		1024
Protocol Supported		iSCSI
Alarm Feature		Indicator alarm, mail alarm, SNMP Trap alarm, and short message alarm
Operating System		Windows and Linux
Power Supply		1 default, 1 optional
Battery		1default				1 default, 1 optional
Dimension (H ×W×D)		Controller enclosure: 89mm X 480m X583mm	Controller enclosure: 131mm X 482mm X583mm	Controller enclosure: 175mm X 482mm X583m	Controller enclosure: 175mm X 482mm X583m	Controller enclosure: 178mm X 482mm X801m
Power Consumption		Controller enclosure: < 186W(fully configured)	Controller enclosure :< 231W(fully configured)	Controller enclosure: < 331W(fully configured)	Controller enclosure :< 506W(fully configured)	Controller enclosure :< 700W(fully configured)
Power Supply		100 V – 127 V/ 200 V – 240 V AC, 60 Hz/50 Hz
Weight		Controller enclosure : Fully configured：< 23kg	Controller enclosure : Fully configured：<27kg	Controller enclosure : Fully configured：<35kg	Controller enclosure : Fully configured：<45kg	Controller enclosure : Fully configured：<67kg
Authentication certificate		CE, FCC, RoHS, WEEE
Operating temperature		5 °C~40°C / 41 °F ~ 104 °F,(10°C~ 35°C / 50 °F ~ 95°F Recommended)
