MikroTik

CRS354-48P-4S+2Q+RM

Name: CRS354-48P-4S+2Q+RM
Brand: MikroTik
Availability: InStock
Rating: 5.0 (10 reviews)

The 48 Port Champion You’ve Been Waiting For - Now With PoE-out

Contact Now

DataSheet PDF

Description
Reviews

Description

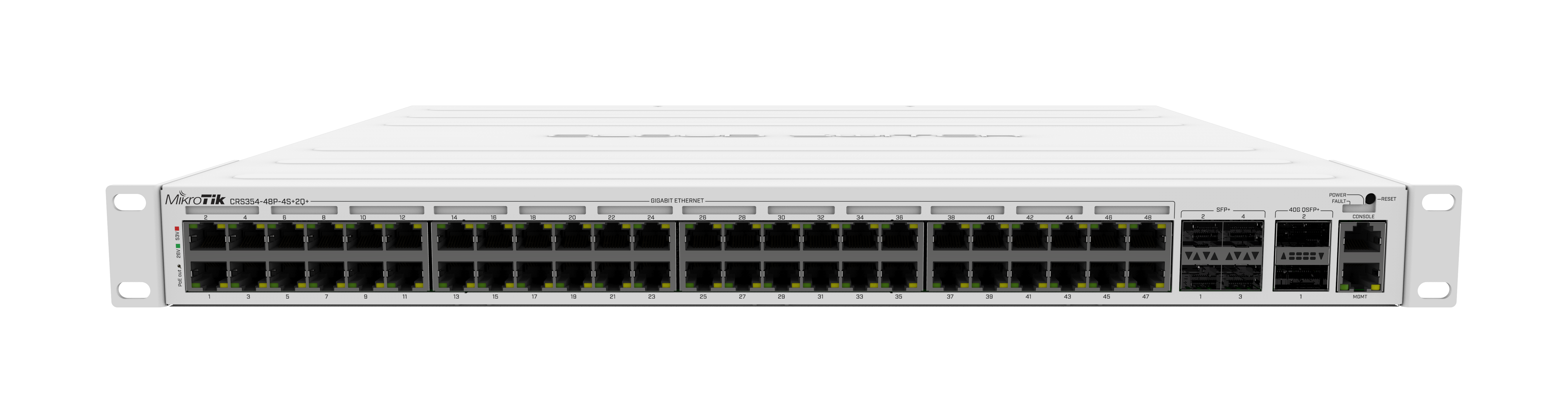

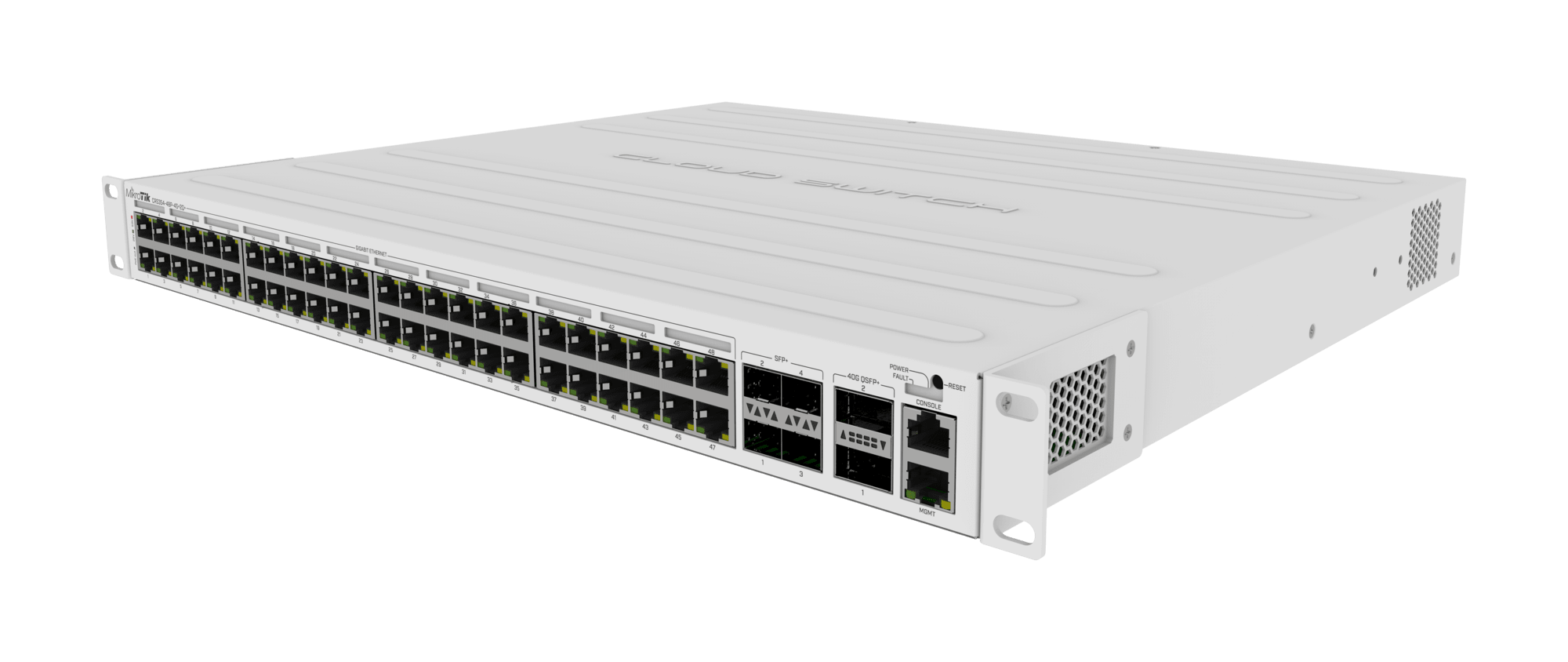

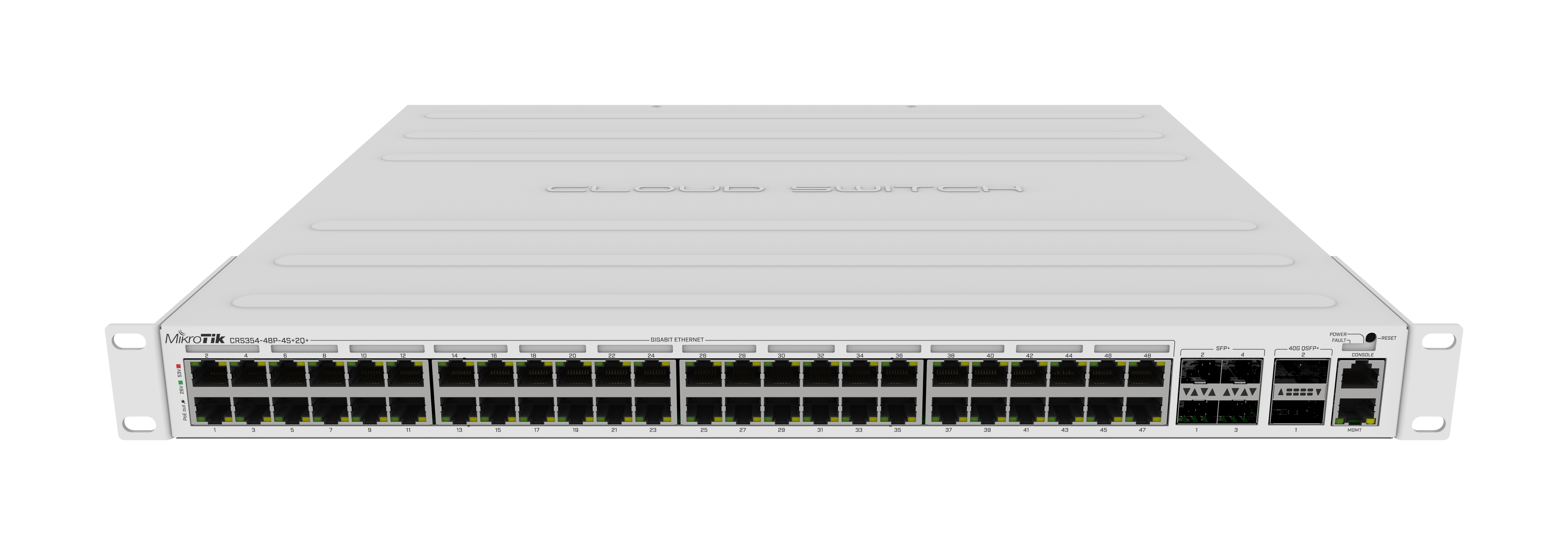

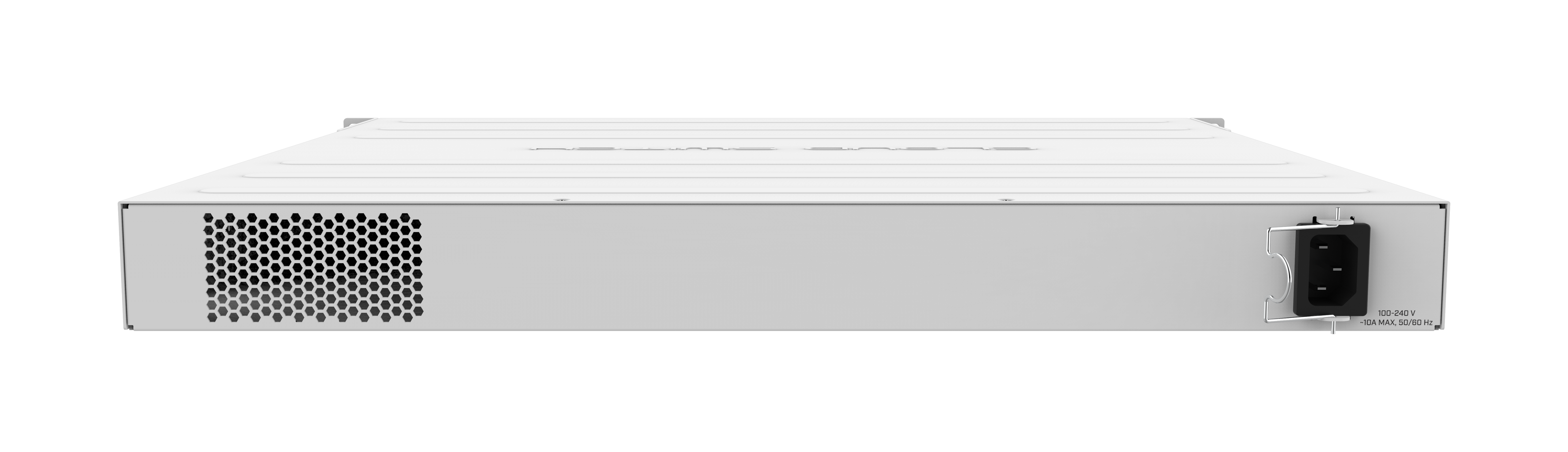

CRS354-48P-4S+2Q+RM: Future-Proof Rackmount Switch for Demanding Networks

Take your network to the next level with the CRS354-48P-4S+2Q+RM, a powerful and adaptable rackmount switch designed with system administrators in mind. This switch is perfect for managing networks in demanding environments, offering:

48 x 1G RJ45 ports with flexible power output options (Passive PoE, low voltage PoE, 802.3af/at)
4 x 10G SFP+ ports for high-speed connections
2 x 40G QSFP+ ports for extremely fast fiber connections and device linking
750W power supply for reliable and efficient power distribution

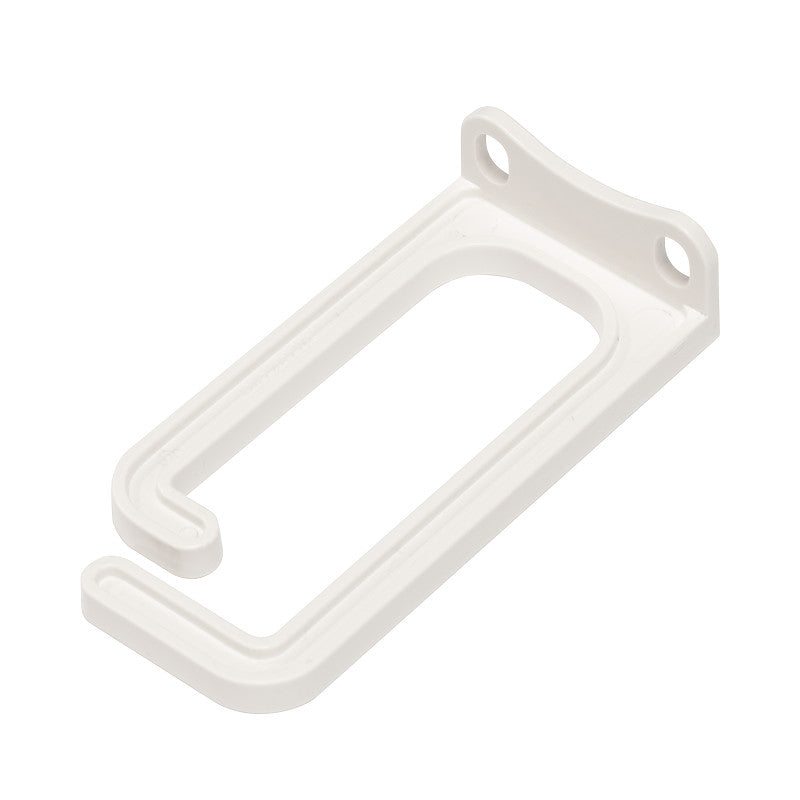

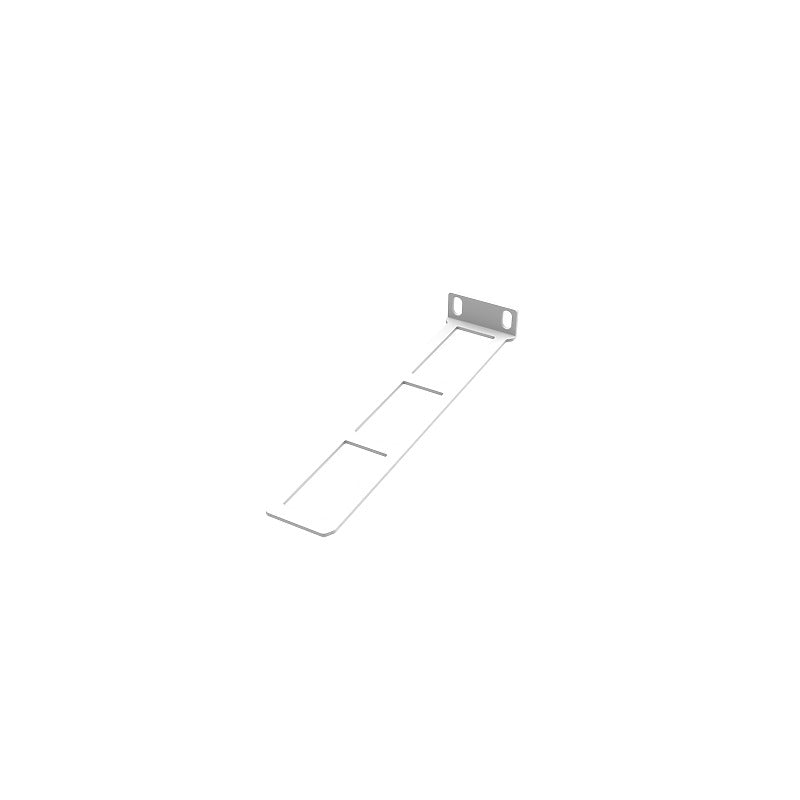

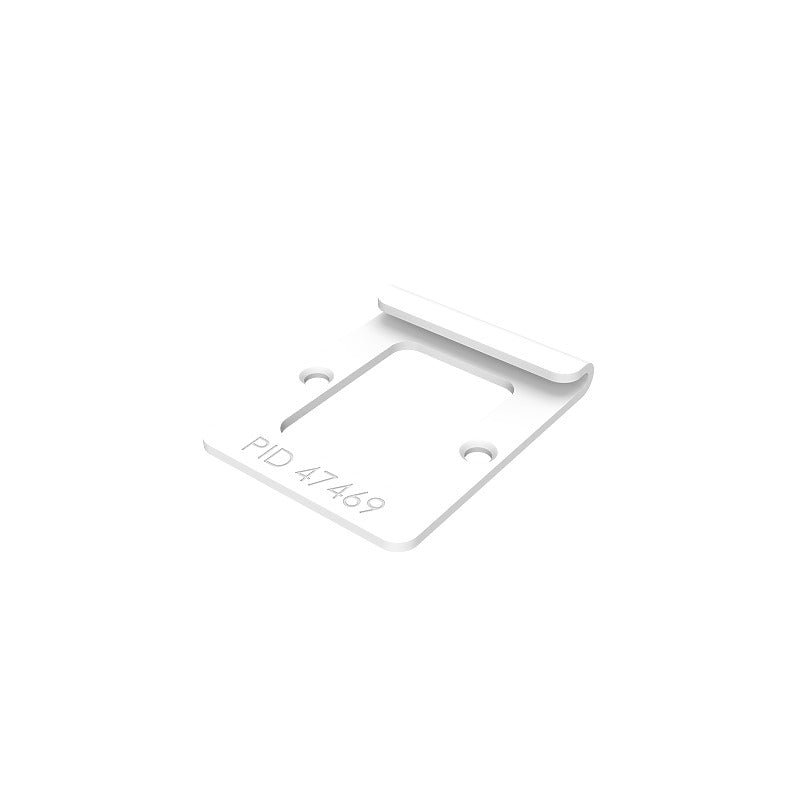

Easy cable management with a special bracket

With a total non-blocking throughput of 168 Gbps, switching capacity of 336 Gbps, and forwarding rate of 235 Mpps, this switch is built to handle even the most demanding networks. And with its competitive pricing, it's the perfect addition to any professional setup.

Upgrade your network today and experience the power of a future-proof switch!

Specifications

Details
Product code	CRS354-48P-4S+2Q+RM
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	98DX3257
Dimensions	443 x 382 x 44 mm
RouterOS license	5
Operating System	RouterOS v7 / SwitchOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C
Suggested price	$999.00

Powering

Details
Number of AC inputs	1
AC input range	100-240
Frequency (Hz)	47-63
Max power consumption	800 W
Max power consumption without attachments	85 W
Cooling type	4 fans

PoE-out

Details
PoE-out ports	Ether1-Ether48
PoE out	802.3af/at
Max out per port output (input 18-30 V)	1000 mA
Max out per port output (input 30-57 V)	570 mA
Total output current	27A at 26V OR 13.2A at 53V
Total output power	700W
