netPower 16P: The Ultimate Outdoor PoE Switch for Tower and Mast Installations Powering multiple access points, IP cameras, and uplinks on a tower or mast has never been easier or more efficient. The netPower 16P outdoor PoE switch offers: 16 Gigabit Ethernet ports with PoE-out for reliable and fast connectivity 2 SFP+ ports for 10G fiber uplinks, ensuring high-speed data transfer

MikroTik

netPower 16P

Name: netPower 16P
Brand: MikroTik
Availability: InStock
Rating: 5.0 (10 reviews)

An Outdoor 18 Port Switch With 16 Gigabit PoE-Out Ports And 2 SFP+. Power All Your Access Points Anywhere

Contact Now

DataSheet PDF

Description
Reviews

Description

netPower 16P: The Ultimate Outdoor PoE Switch for Tower and Mast Installations

Powering multiple access points, IP cameras, and uplinks on a tower or mast has never been easier or more efficient. The netPower 16P outdoor PoE switch offers:

16 Gigabit Ethernet ports with PoE-out for reliable and fast connectivity
2 SFP+ ports for 10G fiber uplinks, ensuring high-speed data transfer

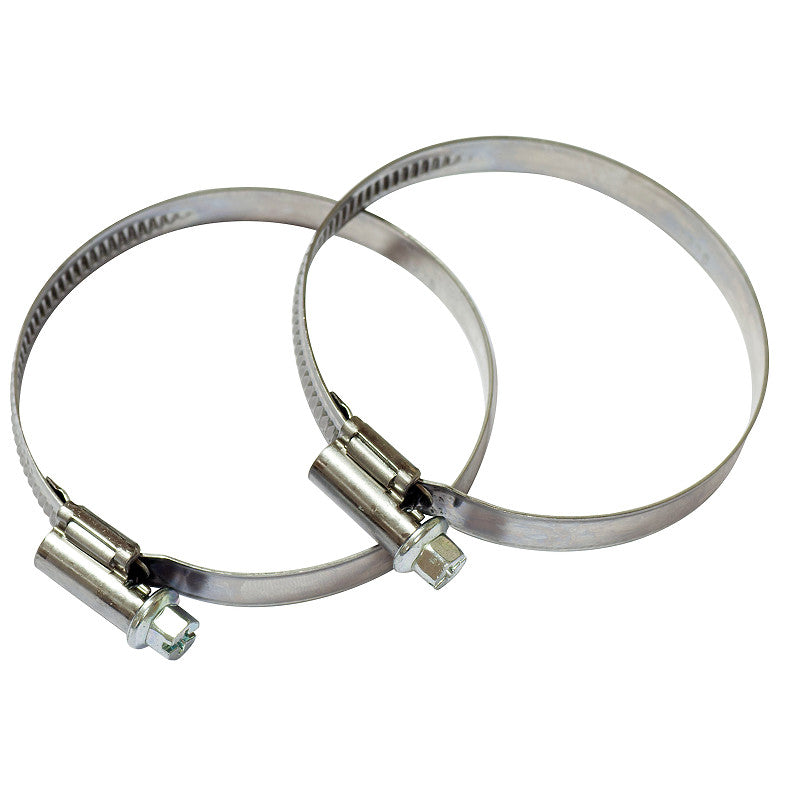

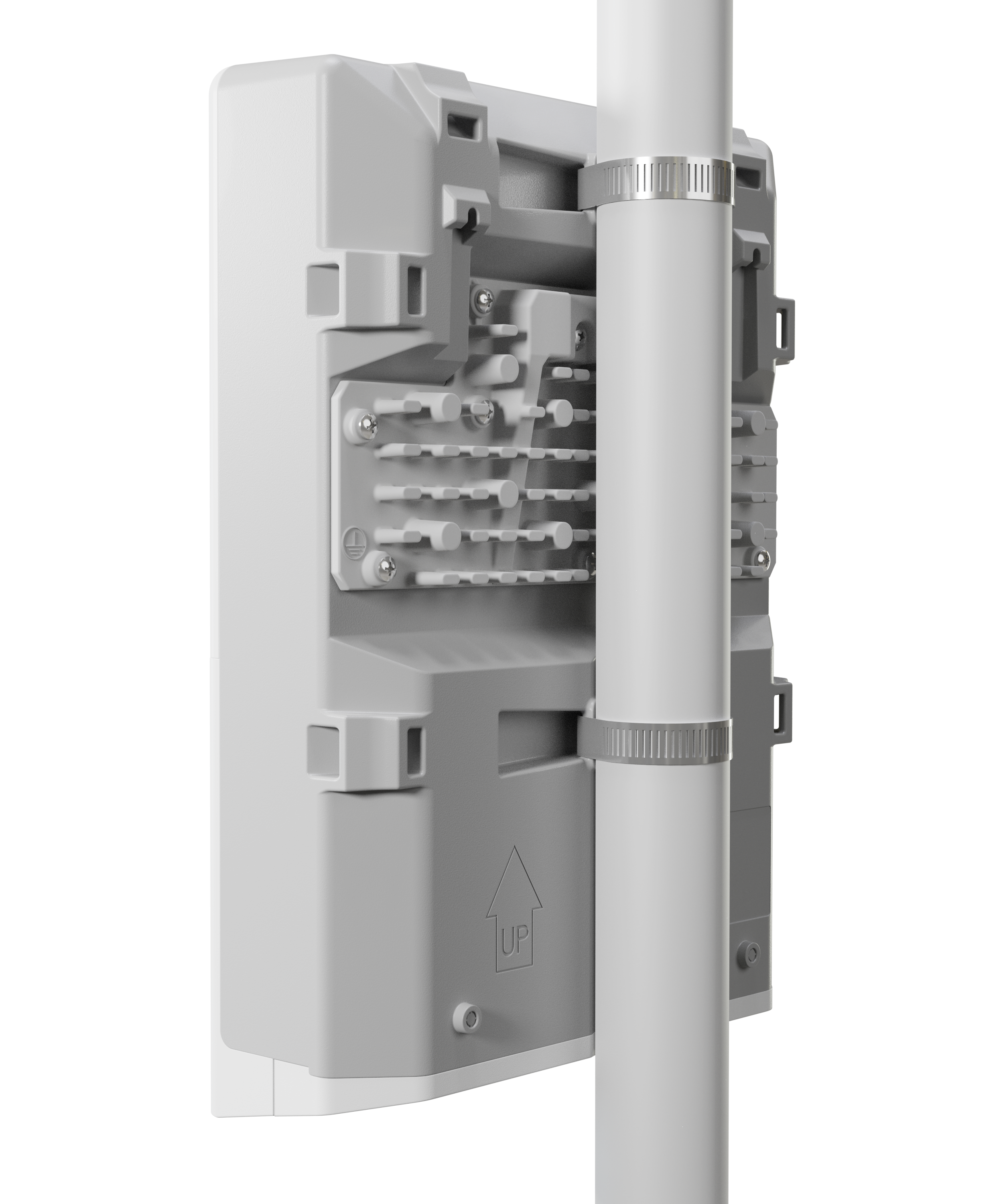

Compact and sturdy outdoor enclosure for mounting in various environments, including damp attics, shafts, towers, masts, and poles with hose clamps

With a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps, and forwarding rate of 53.6 Mpps, the netPower 16P is designed for demanding applications.

Important Notes:

The device requires a 24V PSU for 24V PoE out or 48V PSU for 48V PoE out (IEEE 802.3 at/af)
Power supply is not included, allowing you to choose your preferred option, such as a battery pack or compatible MikroTik power supplies (24HPOW, 48POW, and 48V2A96W)

Upgrade your outdoor network infrastructure with the netPower 16P, the ultimate PoE switch for tower and mast installations!

Keywords: netPower 16P, outdoor PoE switch, tower installation, mast installation, Gigabit Ethernet, SFP+ ports, PoE-out, 10G fiber uplinks, non-blocking throughput, switching capacity, forwarding rate.

Specifications

Details
Product code	CRS318-16P-2S+OUT
Architecture	ARM 32bit
CPU	98DX226S
CPU core count	1
CPU nominal frequency	800 MHz
Switch chip model	98DX226S
Dimensions	303 x 212 x 78 mm
RouterOS license	5
Operating System	RouterOS / SwitchOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$279.00

Powering

Details
Number of DC inputs	2 (DC jack)
DC jack input Voltage	18-30 V / 48-57 V
Max power consumption	316 W
Max power consumption without attachments	16 W
Cooling type	Passive

PoE-out

Details
PoE-out ports	Ether1-Ether16
PoE out	802.3af/at
Max out per port output (input 18-30 V)	1.1 A
Max out per port output (input 30-57 V)	0.6 A
Max total out (A)	2.8A (18V-30V) & 1.4A (48V-57V) x2
