MikroTik

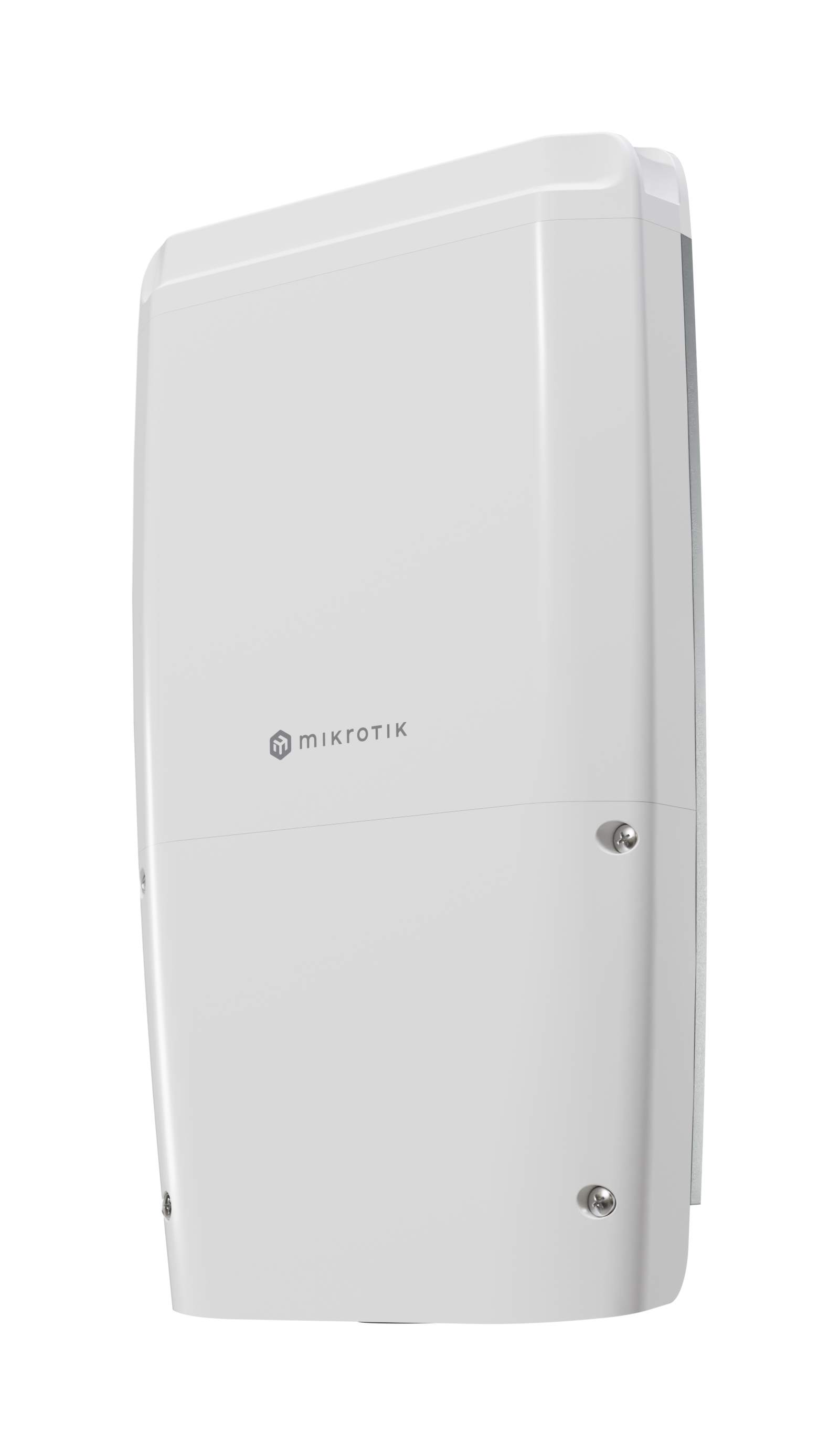

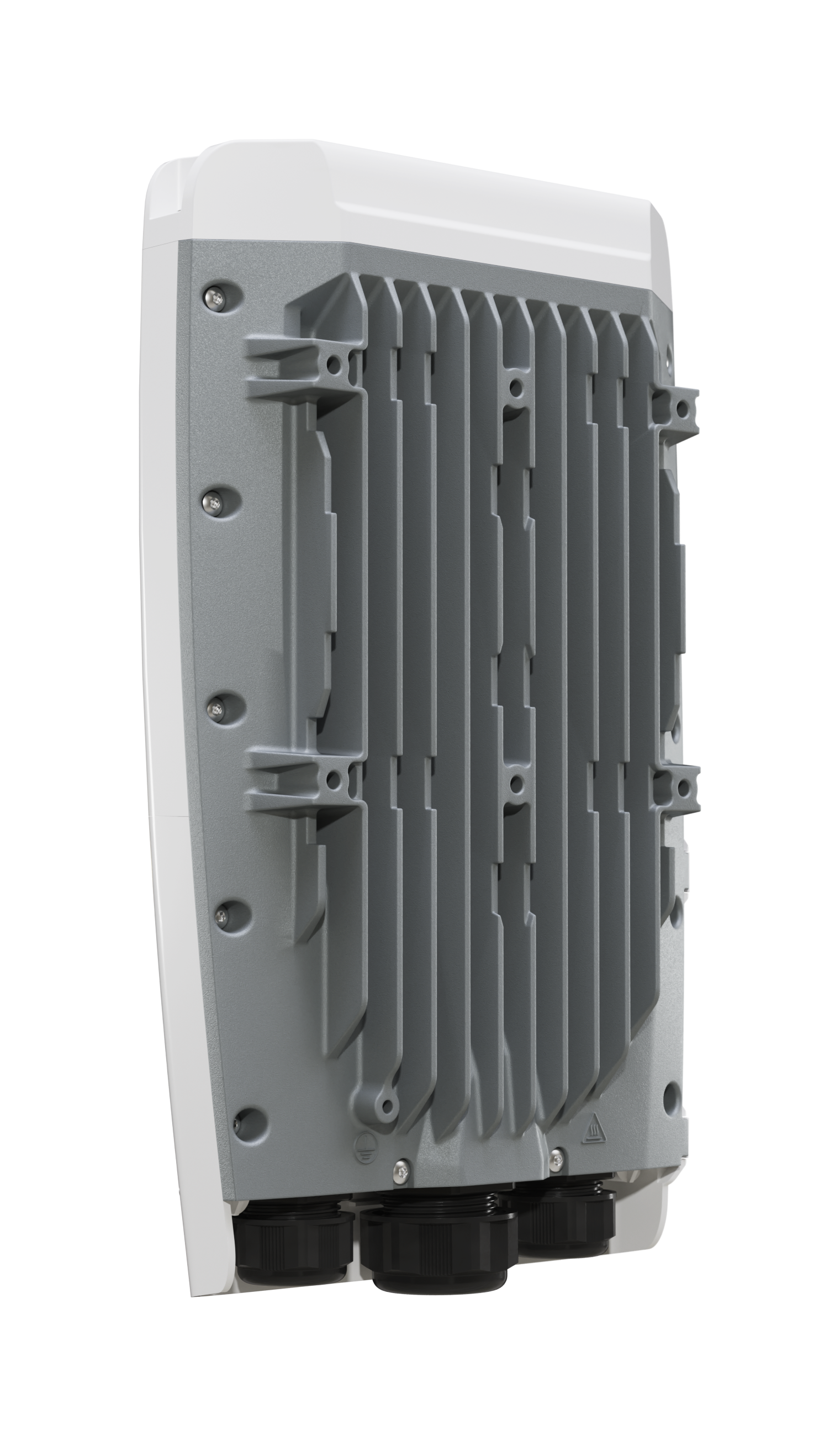

CRS504-4XQ-OUT

Affordable, Compact, Energy-Efficient 100 Gbps Networking Anytime, ANYWHERE! IP66 Weatherproof Enclosure, 4x 100 Gigabit Ports, Multiple Powering Options
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
  • Description

Description

 Introducing the CRS504-4XQ-OUT: Weatherproof 100 Gigabit Switch for Outdoor Connectivity
Experience ultra-fast and versatile outdoor connectivity with the CRS504-4XQ-OUT, a weatherproof switch designed for demanding outdoor environments. Powered by the Marvell Prestera switch chip, this switch features:

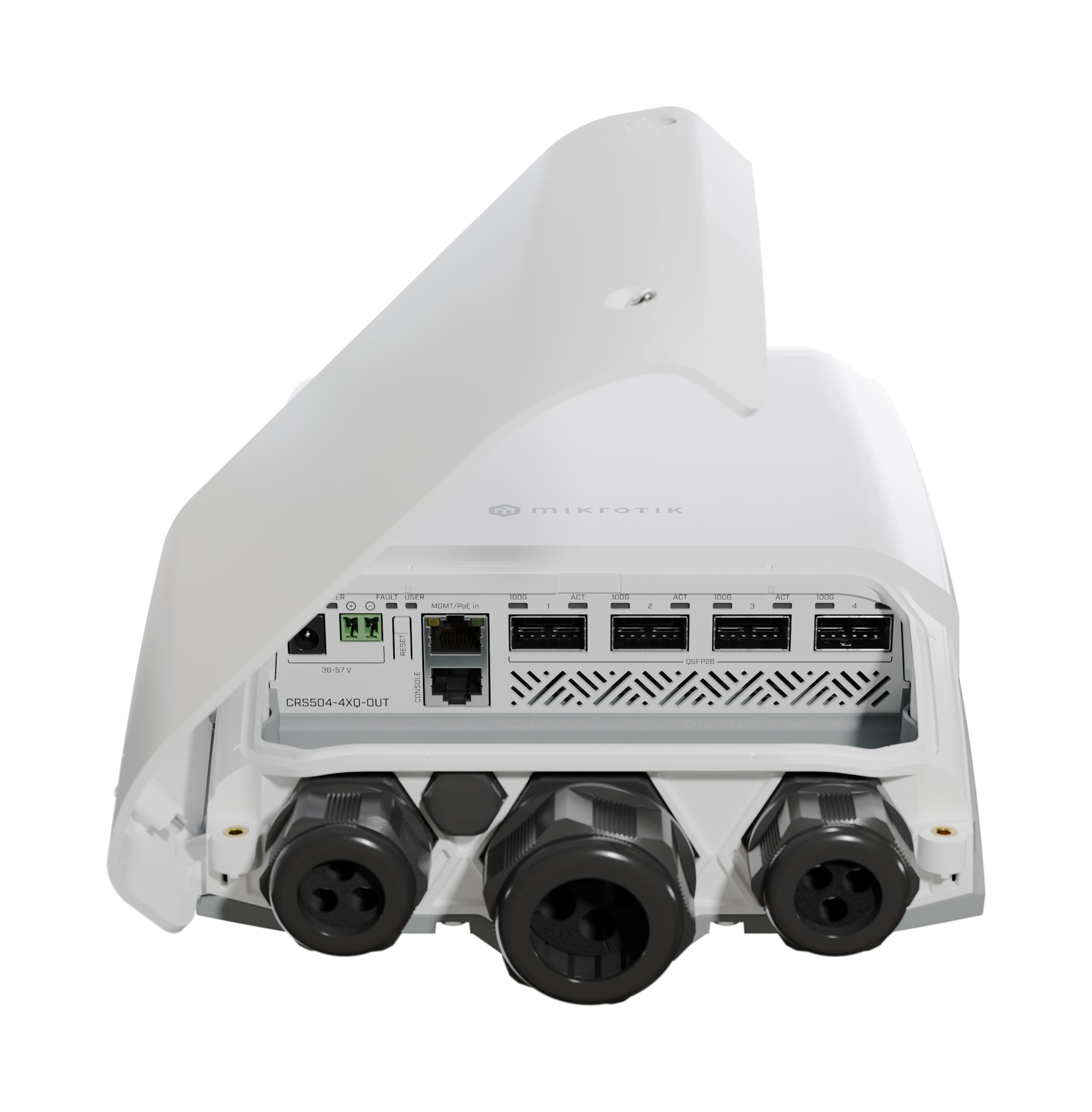

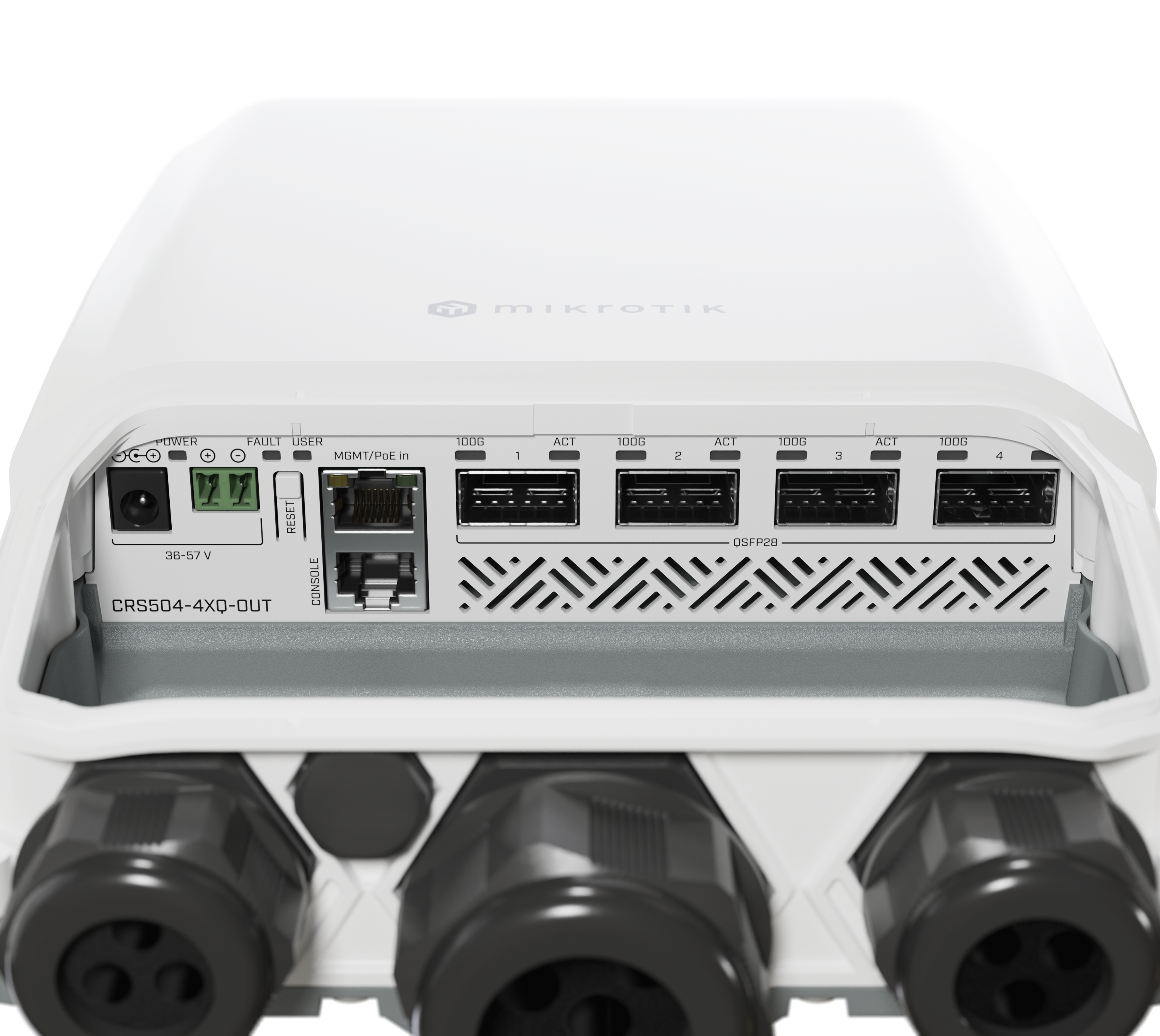

  • 4x 100 Gigabit QSFP28 ports
  • Breakout cable support for multiple 25 Gigabit devices
  • Up to 16 high-speed fiber interfaces
  • Mix-and-match connectivity options (100G, 40G, 25G, 10G, 1G)

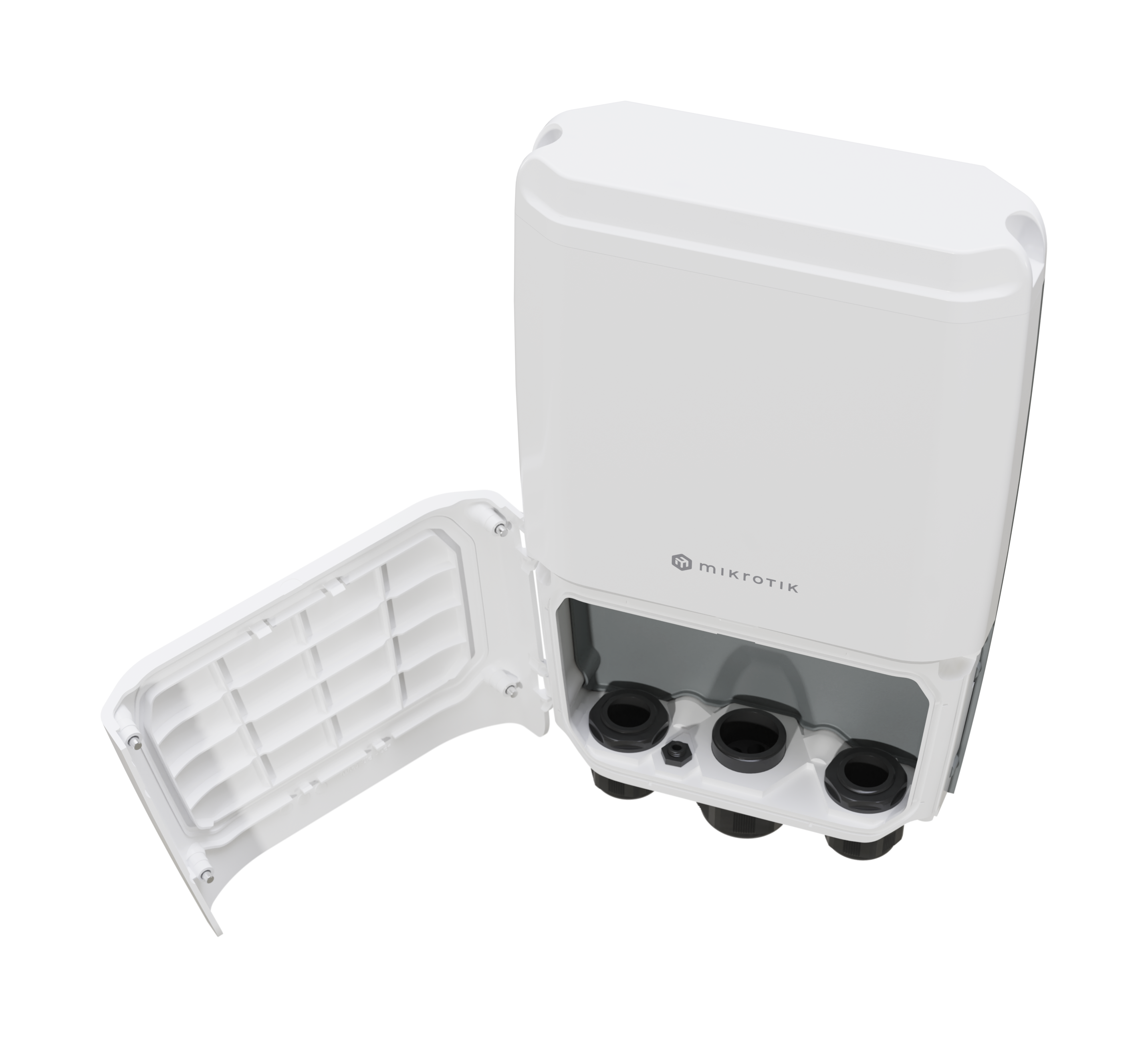

  • IP66-rated weatherproof enclosure for durability
  • Multiple powering options (DC jack, 2-pin terminal, 802.3bt PoE-in)
  • Management and console ports for easy troubleshooting
Perfect for outdoor events, remote installations, and harsh environments, the CRS504-4XQ-OUT ensures reliable and high-speed connectivity wherever you need it.

Specifications

Details
Product code CRS504-4XQ-OUT
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model 98DX4310
RouterOS license 5
Operating System RouterOS v7
Size of RAM 128 MB
Storage size 32 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $899.00

Powering

Details
Number of DC inputs 3 (PoE-IN, 2-pin terminal, DC jack)
DC jack input Voltage 36-57 V
2-pin terminal input Voltage 36-57 V
Max power consumption 44 W
Max power consumption without attachments 25 W
Cooling type Passive
PoE in 802.3 bt
PoE in input Voltage 43-57 V

Ethernet

Details
10/100 Ethernet ports 1

Fiber

Details
Number of 100G QSFP28 ports 4

Peripherals

Details
Serial console port RJ45

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 66
