FiberBox Plus Ultimate value pick for 10 Gigabit outdoor networking. High masts, poles, or towers – your connection will be safe! A powerful budget version of the netFiber 9.

MikroTik

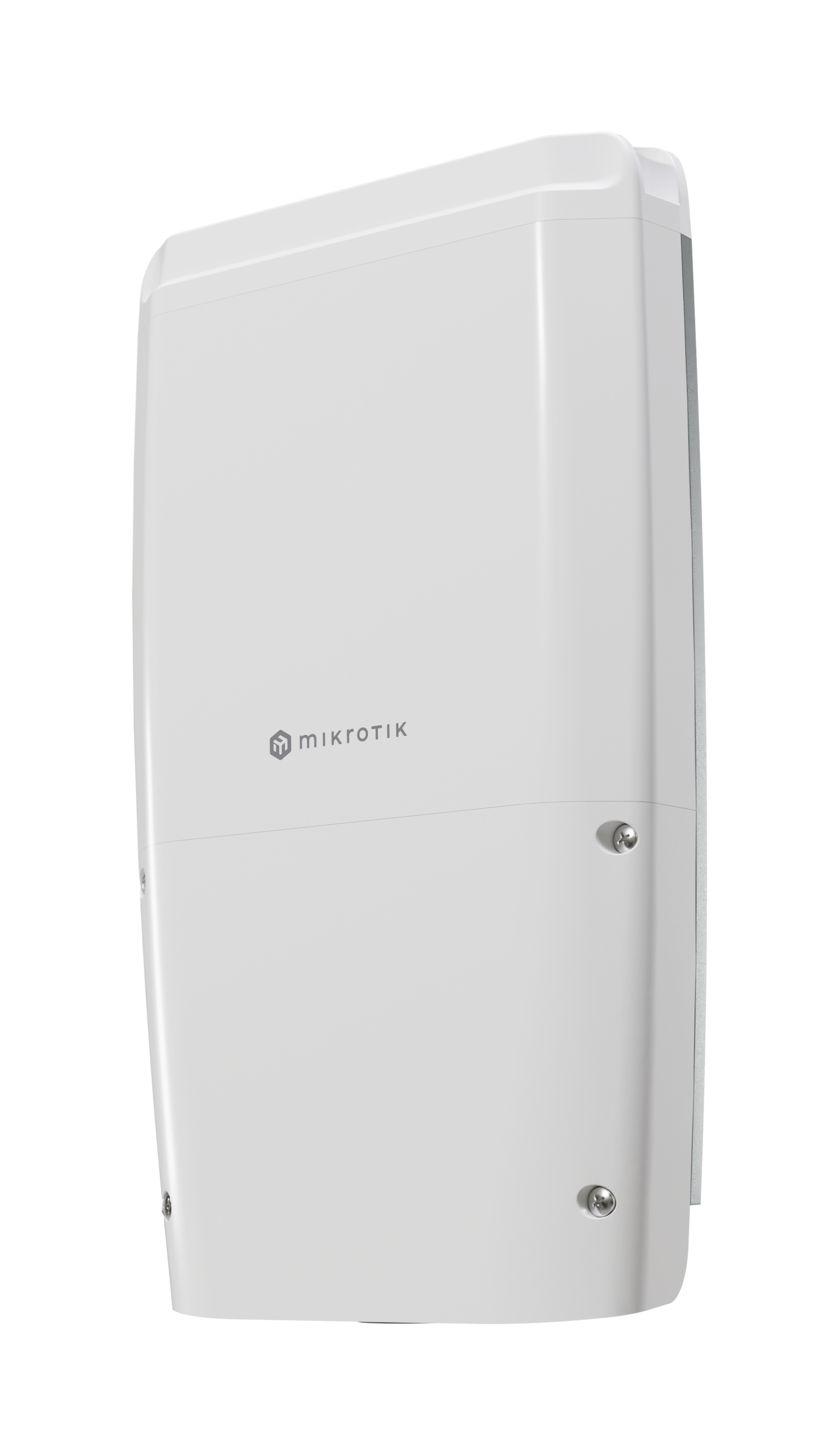

FiberBox Plus

Name: FiberBox Plus
Brand: MikroTik
Availability: InStock
Rating: 5.0 (10 reviews)

Ultimate Value Pick For 10 Gigabit Outdoor Networking. High Masts, Poles, or Towers – Your Connection Will Be Safe! A Powerful Budget Version of the netFiber 9

Contact Now

DataSheet PDF

Description
Reviews

Description

Fiber Box Plus: High-Performance Outdoor Switch for Reliable Connectivity

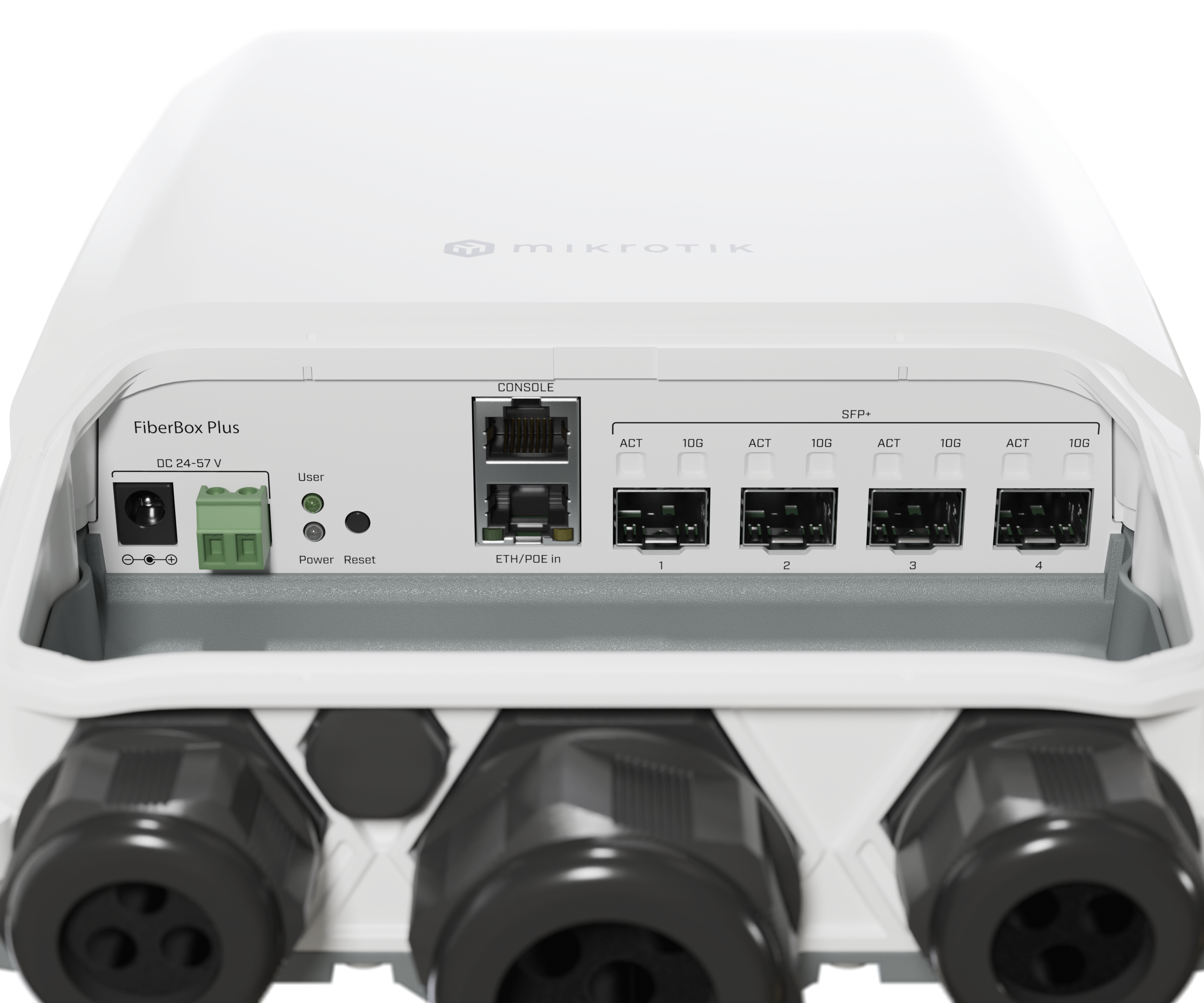

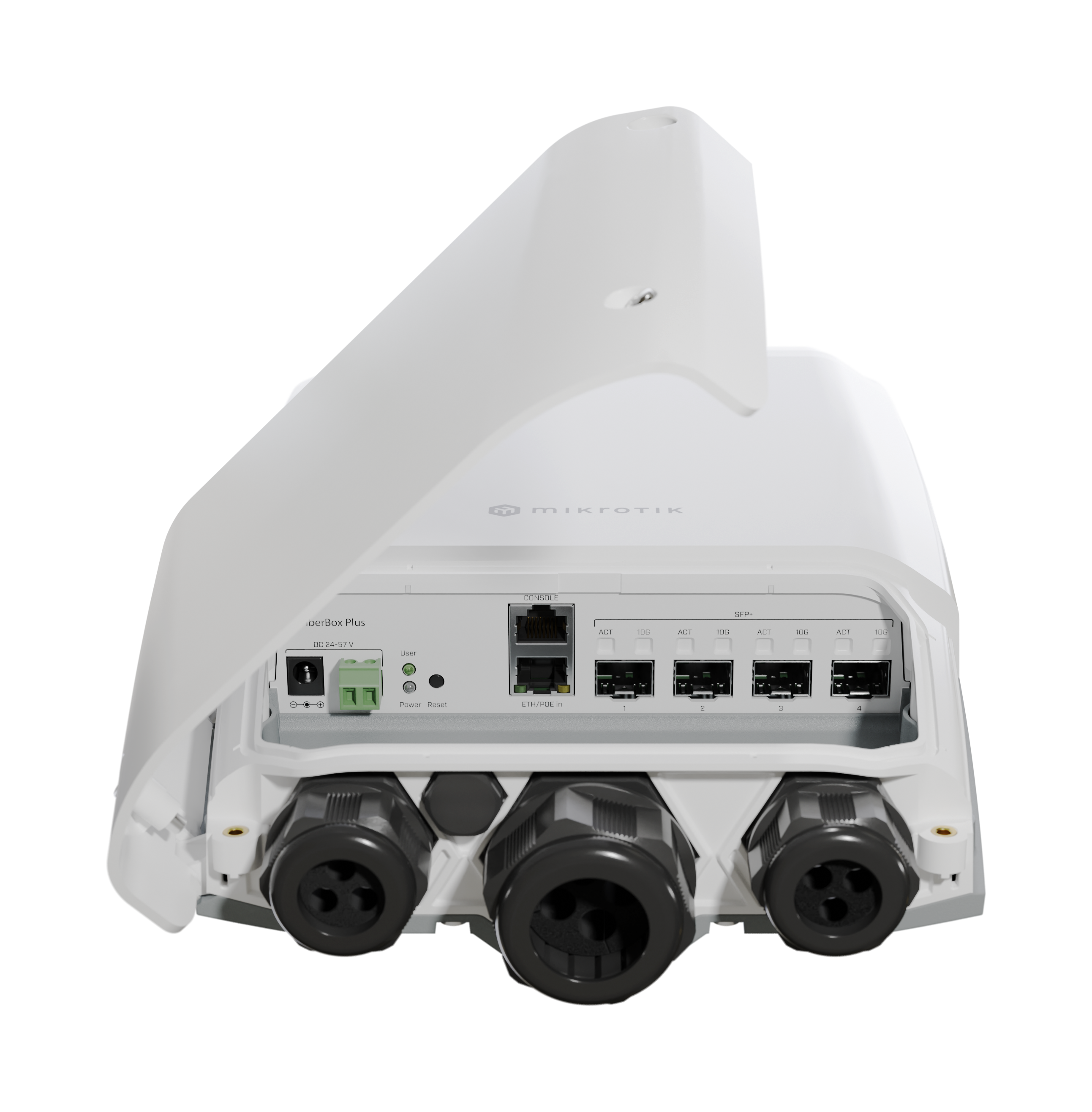

The Fiber Box Plus is a game-changer in outdoor networking, offering a massive upgrade to our previous FiberBox devices. With its modern ARM CPU, increased RAM, and four 10-Gigabit SFP+ ports, this switch provides fast and reliable connectivity on a budget, without the distance limitations of Ethernet. Additionally, it features a Gigabit Ethernet port for management purposes or PoE-in powering, as well as a 2-pin terminal and standard DC jack for flexible power options.

Unbeatable Performance and Efficiency

The Fiber Box Plus supports a wide input voltage range of 24-57V and is remarkably efficient, with maximum power consumption (without attachments) of only 7W. It's also a budget-friendly alternative to the netFiber 9, offering similar performance with the same impressive Marvell 98DX226S switch-chip.

Rugged Outdoor Durability

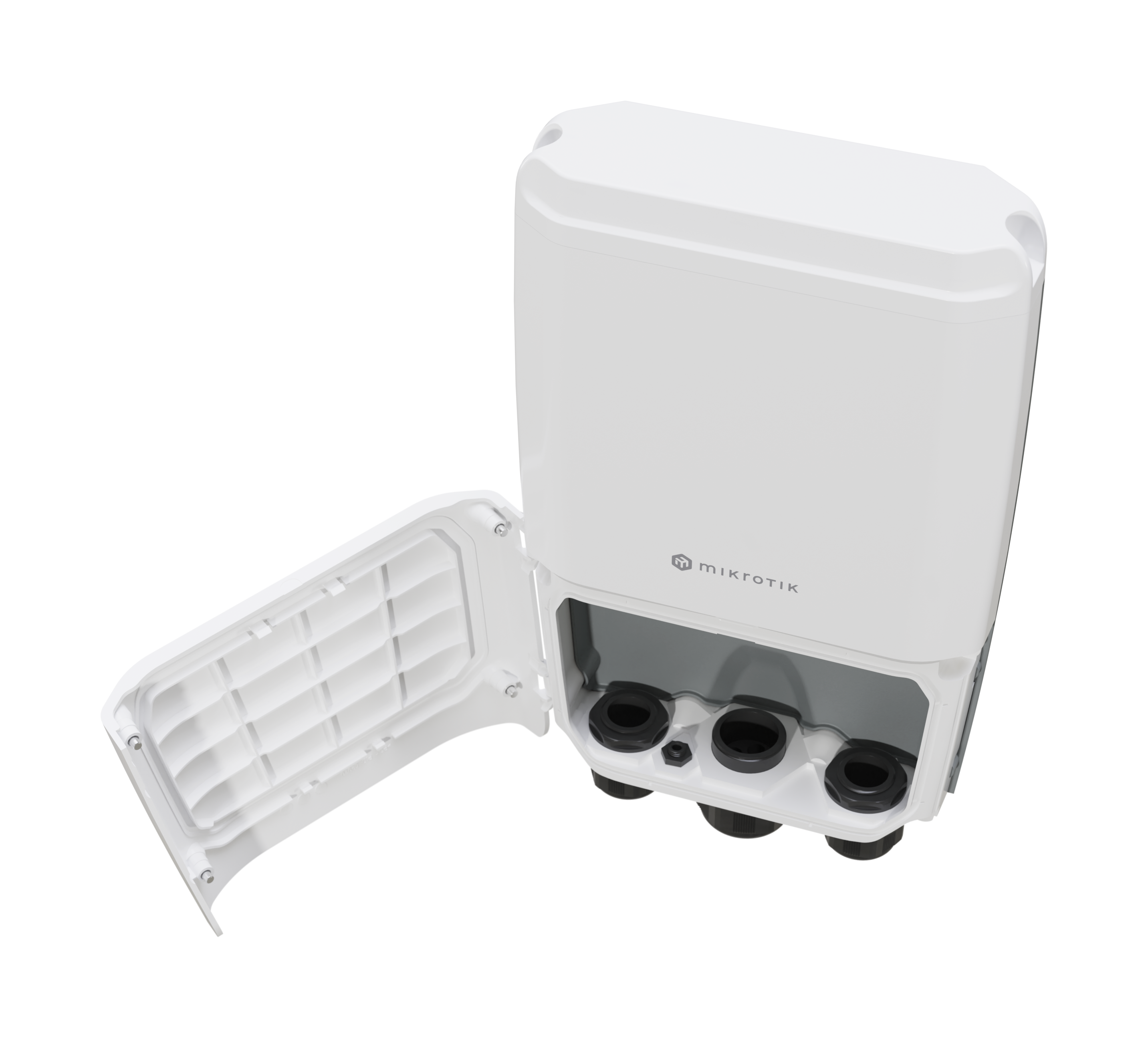

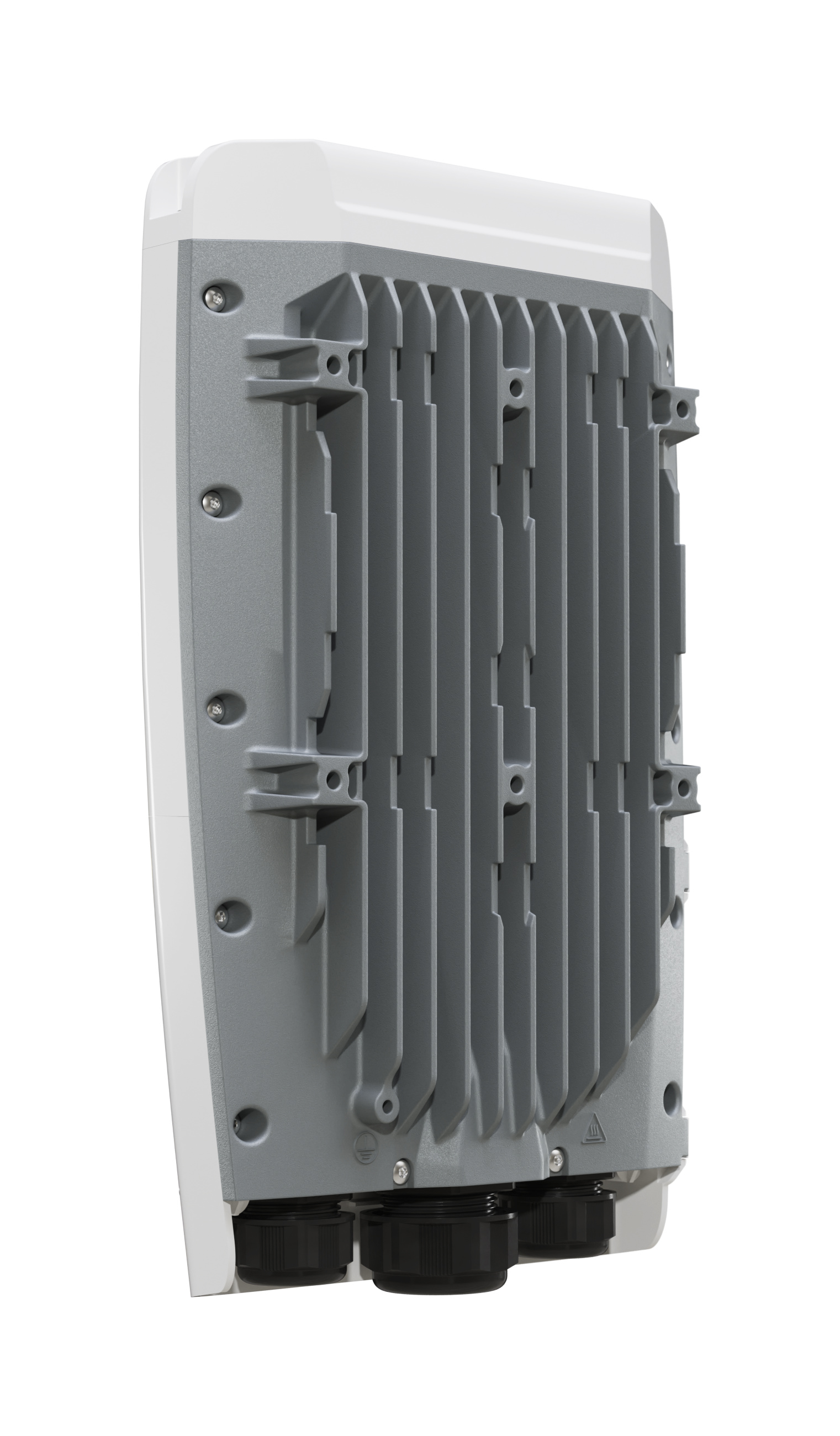

This switch is designed for outdoor use, with a solid water resistance rating of IP66, protecting against powerful water jets from any direction. It's perfect for connecting mast devices like the mANTBox 52 or LHG XL 52, and can withstand harsh weather conditions, damp environments, and even intentional water exposure.

Ideal for Various Scenarios

The Fiber Box Plus is perfect for:

Campsites and outdoor events
Seaport infrastructure and coastal areas
Damp basements and elevator shafts
Harsh industrial environments
Remote and outdoor networking applications

Upgrade Your Outdoor Network Today

Experience the power of reliable and fast connectivity with the Fiber Box Plus. Order now and take your outdoor network to the next level!

Specifications

Details
Product code	CRS305-1G-4S+OUT
Architecture	ARM 32bit
CPU	98DX226S
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	98DX226S
RouterOS license	5
Operating System	RouterOS v7 / SwOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$229.00

Powering

Details
Number of DC inputs	3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage	24-57 V
2-pin terminal input Voltage	24-57 V
Max power consumption	17 W
Max power consumption without attachments	7 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	42-57 V
