Uniview
IPC2122LB-SF28(40)K-A

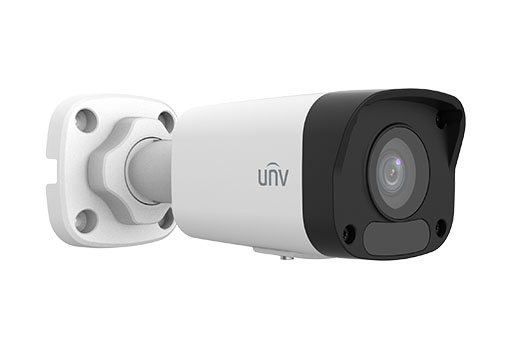

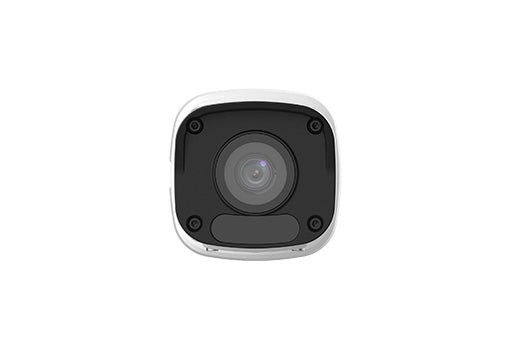

2MP HD IR Fixed Mini Bullet Network Camera
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
Description
2MP HD IR Fixed Mini Bullet Network Camera
• High quality image with 2MP, 1/2.9"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra H.265,H.265, H.264
• Smart IR, up to 30m (98ft) IR distance
• Day/night functionality
• 2D/3D DNR (Digital Noise Reduction)
• Supports Micro SD card
• DC12V or PoE(IEEE 802.3af) power supply
• IP67 protection
• 3-Axis
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra H.265,H.265, H.264
• Smart IR, up to 30m (98ft) IR distance
• Day/night functionality
• 2D/3D DNR (Digital Noise Reduction)
• Supports Micro SD card
• DC12V or PoE(IEEE 802.3af) power supply
• IP67 protection
• 3-Axis
| IPC2122LB-SF28K-A | IPC2122LB-SF40K-A | |||||
| Camera | ||||||
| Sensor | 1/2.9", 2.0 megapixel, progressive scan, CMOS | |||||
| Min. Illumination | Colour:0.01 lux (F2.0, AGC ON) 0 lux with IR |
|||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| WDR | DWDR | |||||
| S/N | >55dB | |||||
| Lens | ||||||
| Lens type | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||
| Iris | Fixed | |||||
| Field of View (H) | 101.1 | 83.7 | ||||
| Field of View (V) | 55.0° | 44.6 | ||||
| Field of View (D) | 111.0° | 89.1 | ||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 45.0(147.6ft) | 18.0(59.1ft) | 9.0(29.5ft) | 4.5(14.8ft) | ||
| 4.0 | 64.3(210.9ft) | 25.7(84.4ft) | 12.9(42.2ft) | 6.4(21,1ft) | ||
| Illuminator | ||||||
| IR Range | Up to 30m (98 ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra H.265,H.265, H.264 | |||||
| Frame Rate | Main Stream: 2MP (1920*1080),Max 30fps; 720P (1280*720),Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
|||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Video Bit Rate | 128 Kbps~6144Kbps | |||||
| U-code | Support | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas per scene | |||||
| ROI | Up to 8 areas | |||||
| Video stream | Dual streams | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | |||||
| Dewarping | N/A | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Digital Defog | |||||
| Events | ||||||
| Basic Detection | Motion detection | |||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 128 GB | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP,RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, Qos, ,SSL/TLS | |||||
| Compatible Integration | ONVIF (Profile S, Profile T, Profile G),API,SDK | |||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF | |||||
| Client | EZStation EZLive EZView |
|||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | ||||||
| Interface | ||||||
| Audio I/O | N/A | |||||
| Alarm I/O | N/A | |||||
| Serial Port | N/A | |||||
| Built-in Mic | N/A | |||||
| Built-in Speaker | N/A | |||||
| WIFI | N/A | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Video Output | N/A | |||||
| Certification | ||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||
| General | ||||||
| Power | DC12V(±25%) , PoE(IEEE 802.3af) | |||||
| Power consumption: Max 5W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (L x W x H) | 161 × 62 ×63mm (6.4”× 2.4” × 2.5”) | |||||
| Weight | 0.207kg(0.46lb) | |||||
| Material | Plastic | |||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge protection | 4KV | |||||
| Reset button | N/A | |||||
