Description

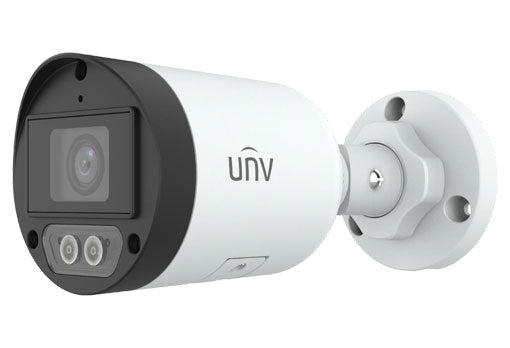

4MP HD ColorHunter Mini Fixed Bullet Network Camera
• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra H.265,H.265, H.264
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Warm Light, up to 30m (98ft) warm light distance
• 2D/3D DNR (Digital Noise Reduction)
• Support 128GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
• 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra H.265,H.265, H.264
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Warm Light, up to 30m (98ft) warm light distance
• 2D/3D DNR (Digital Noise Reduction)
• Support 128GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
Specifications
| IPC2124LB-AF28K-DL | IPC2124LB-AF40K-DL | |||||||
| Camera | ||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||
| Minimum Illumination | Colour: 0.005 lux ( F1.6, AGC ON) 0 Lux with light |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| WDR | DWDR | |||||||
| S/N | >52dB | |||||||
| Lens | ||||||||
| Lens type | 2.8mm@F1.6 | 4.0mm@F1.6 | ||||||
| Iris | Fixed | |||||||
| Field of View (H) | 97.0° | 79.0° | ||||||
| Field of View (V) | 52.2° | 42.3° | ||||||
| Field of View (D) | 107.5° | 85.1° | ||||||
| DORI | ||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 63(206.7ft) | 25.2(82.7ft) | 12.6(41.3ft) | 6.3(20.7ft) | ||||
| 4.0 | 90.0(295.3ft) | 36.0(118.1ft) | 18.0(59.1ft) | 9.0(29.5ft) | ||||
| Illuminator | ||||||||
| IR Range | Up to 30m (98ft) | |||||||
| Warm Light Range | Up to 30m (98ft) | |||||||
| Light On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | Ultra H.265,H.265, H.264 | |||||||
| Frame Rate | Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||||
| Video Bit Rate | 128 Kbps~6144Kbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Video stream | Dual streams | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart Illumination | Support | |||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
| Dewarping | N/A | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital Defog | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio Detection | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | N/A | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8KHz | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 128 GB | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, Qos, SMTP, SSL/TLS, SNMP | |||||||
| Compatible Integration | ONVIF (Profile S, Profile T, Profile G),API,SDK | |||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF | |||||||
| Client | EZStation EZLive EZView |
|||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||
| Interface | ||||||||
| Audio I/O | N/A | |||||||
| Alarm I/O | N/A | |||||||
| Serial Port | N/A | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | N/A | |||||||
| WIFI | N/A | |||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130) FCC (FCC 47 CFR part15 B) |
|||||||
| Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) | |||||||
| General | ||||||||
| Power | DC12V(±25%) , PoE(IEEE 802.3af) | |||||||
| Power consumption: Max 2.8W | ||||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||||
| Dimensions (L x W x H) | 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) | |||||||
| Weight | 0.24kg(0.53lb) | |||||||
| Material | Metal + Plastic | |||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge protection | 4KV | |||||||
| Reset button | N/A | |||||||
