Ultratech
IPC6424SR-X25-VF
Available:
Only 20 items in stock
20 items in stock
In stock
Out of stock
Back in stock
Description

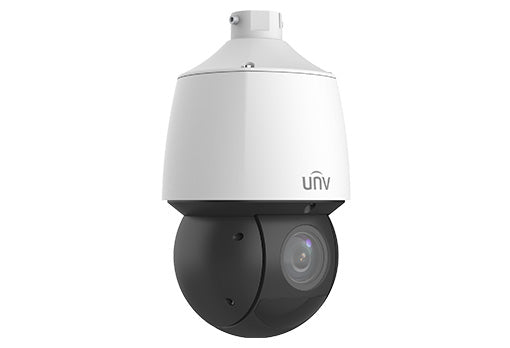

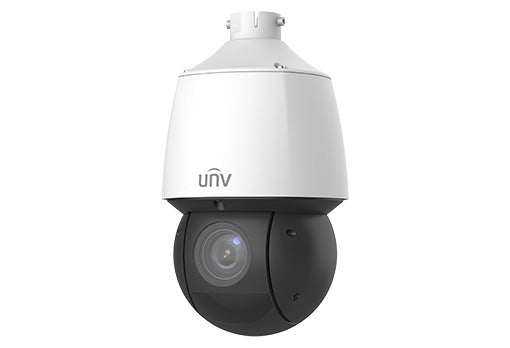

4MP 25x Lighthunter Network PTZ Dome Camera
• High quality image with 4MP,1/2.8’’ CMOS sensor
• 2688*1520@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• 25X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 100m (328ft) IR distance
• DC 12V±25% or PoE+ (IEEE 802.3at)
• Alarm 2 in and 1 out, Audio 1 in and 1 out
• IP67 ingress protection
• IK10 vandal resistant
• 2688*1520@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• 25X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 100m (328ft) IR distance
• DC 12V±25% or PoE+ (IEEE 802.3at)
• Alarm 2 in and 1 out, Audio 1 in and 1 out
• IP67 ingress protection
• IK10 vandal resistant
Specification
| IPC6424SR-X25-VF | |||||
| Camera | |||||
| Sensor | 1/2.8", 4.0 megapixel, progressive scan, CMOS | ||||
| Min. Illumination | Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| WDR | 120dB | ||||
| S/N | >56dB | ||||
| Lens | |||||
| Lens type | 4.8 ~ 120mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 25 | ||||
| Iris | Auto; F1.5 ~ F3.8 | ||||
| Field of View (H) | 52.20°~2.74° | ||||
| Field of View (V) | 30.81°~1.54° | ||||
| Field of View (D) | 64.20°~3.23° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.8 | 119.3(391.2ft) | 47.7(156.5ft) | 23.9(78.2ft) | 11.9(39.1ft) | |
| 120 | 2475.0(8120.1ft) | 990.0(3248.0ft) | 495.0(1624.0ft) | 247.5(812.0ft) | |
| Illuminator | |||||
| IR Range | Up to 100m (328 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Support | ||||
| ROI | Support | ||||
| Video Stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | 24 areas, up to 4 areas per scene | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Intelligent | |||||
| Smart Intrusion Prevention | Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
| People Counting | Support people flow counting and crowd density monitoring | ||||
| Events | |||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | ||||
| Auto Tracking | Support | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8 kHz | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZLive EZView |
||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Pan & Tilt | |||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 0.1°/s ~ 200°/s | ||||
| Preset speed: 240°/s | |||||
| Tilt Range | –15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1°/s ~ 120°/s | ||||
| Preset speed: 200°/s | |||||
| Number of Presets | 1024 | ||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | ||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | ||||
| Patrol Stay Time | 15s~1800s | ||||
| Preset Image Freeze | Support | ||||
| Home Position | Support | ||||
| Interface | |||||
| Audio I/O | 1/1 | ||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Built-in Mic | N/A | ||||
| Built-in Speaker | N/A | ||||
| WIFI | N/A | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | 1 BNC | ||||
| Certification | |||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863) | ||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
||||
| General | |||||
| Power |
DC12V(±25%,3A), PoE+(IEEE 802.3at) | ||||
| Power consumption: MAX 21W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø x H) | Ø166 x 295mm (Ø6.5” x 11.6”) | ||||
| Weight | 3.05kg(6.72lb) | ||||
| Working Environment | -40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 6KV | ||||
| Reset Button | Support | ||||
