Ultratech
IPC6622SR-X25-VF
Available:
Only 20 items in stock
20 items in stock
In stock
Out of stock
Back in stock
Description

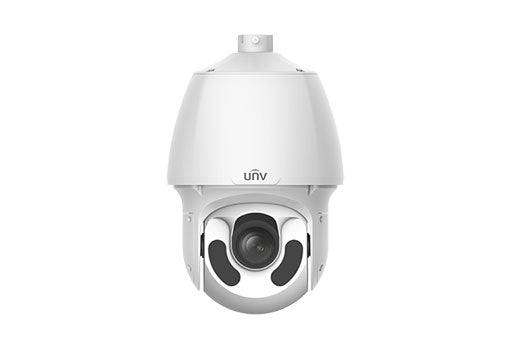

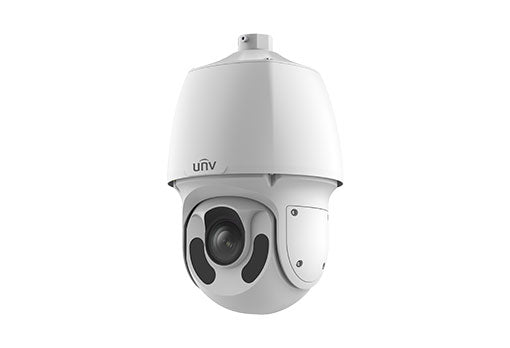

2MP 25x Lighthunter Network PTZ Dome Camera
• High quality image with 2MP,1/2.8" CMOS sensor
• 1920*1080@60fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• 25X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 150m (492 ft) IR distance
• AC 24V±25%, DC 24V±25% or PoE+(IEEE 802.3at) power supply
• Alarm 2 in and 1 out, Audio 1 in and 1 out
• IP66 ingress protection
• 1920*1080@60fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• 25X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 150m (492 ft) IR distance
• AC 24V±25%, DC 24V±25% or PoE+(IEEE 802.3at) power supply
• Alarm 2 in and 1 out, Audio 1 in and 1 out
• IP66 ingress protection
Specification
| IPC6622SR-X25-VF | ||||||
| Camera | ||||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||||
| Min. Illumination | Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR |
|||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto, 1 ~ 1/100000s | |||||
| WDR | 120dB | |||||
| S/N | >52dB | |||||
| Lens | ||||||
| Lens | 5.0 ~ 125.0mm, AF automatic focusing and motorized zoom lens | |||||
| Digital Zoom | 16 | |||||
| Optical Zoom | 25 | |||||
| Iris | Auto; F1.5 ~ F4.0 | |||||
| Field of View (H) | 54.37° ~ 2.68° | |||||
| Field of View (V) | 32.23° ~ 1.51° | |||||
| Field of View (D) | 66.88° ~ 3.16° | |||||
| DORI | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 5.0 | 85.3(280.0ft) | 34.1(112.0ft) | 17.1(56.0ft) | 8.5(28.0ft) | ||
| 125.0 | 1706.9 (5600.1ft) | 682.8(2240.0ft) | 341.4(1120.0ft) | 170.7(560.0ft) | ||
| Illuminator | ||||||
| IR Range | Up to 150m (492 ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| Frame Rate | Main Stream: 2MP(1920*1080),Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps; |
|||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| U-code | Support | |||||
| ROI | Up to 8 areas | |||||
| Video stream | Triple streams | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | 24 areas, up to 4 areas per scene | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Digital Defog | |||||
| Intelligent | ||||||
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | |||||
| People Counting | Support people flow counting and crowd density monitoring | |||||
| Events | ||||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | |||||
| Auto Tracking | Support | |||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U,G.711A | |||||
| Audio Bitrate | 64 Kbps | |||||
| Two-way Audio | Support | |||||
| Suppression | Support | |||||
| Sampling Rate | 8 kHz | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256 GB | |||||
| Network Storage | ANR,NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||||
| Client | EZStation EZLive EZView |
|||||
| Web Browser | Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||
| Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
| Pan & Tilt | ||||||
| Pan Range | 360° (endless) | |||||
| Pan Speed | 0.1°/s ~ 200°/s | |||||
| Preset speed: 300°/s | ||||||
| Tilt Range | –15° ~ 90° (auto reverse) | |||||
| Tilt Speed | 0.1°/s ~ 200°/s | |||||
| Preset speed: 240°/s | ||||||
| Number of Presets | 1024 | |||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||
| Patrol Stay Time | 15s~1800s | |||||
| Preset Image Freeze | Support | |||||
| Home Position | Support | |||||
| Interface | ||||||
| Audio I/O | 1/1 | |||||
| Alarm I/O | 2/1 | |||||
| Serial Port | 1 RS485 | |||||
| Built-in Mic | N/A | |||||
| Built-in Speaker | N/A | |||||
| WIFI | N/A | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Video Output | 1 BNC | |||||
| Certification | ||||||
| EMC | CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||
| General | ||||||
| Power | AC 24V±25%, DC 24V±25%, PoE+ (IEEE802.3 at) | |||||
| Power consumption: Max 25W | ||||||
| Power Interface | Wires with cold-pressed terminal | |||||
| Dimensions (Ø x H) | Ø227 x 384.8mm (Ø8.9” x 15.1”) | |||||
| Weight | 5.28kg(11.64lb) | |||||
| Working Environment | -40°C ~70°C (-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -40°C ~70°C (-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) | |||||
| Surge protection | 6KV | |||||
| Reset button | Support | |||||
