Ultratech
IPC6624SR-X33-VF
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
Description

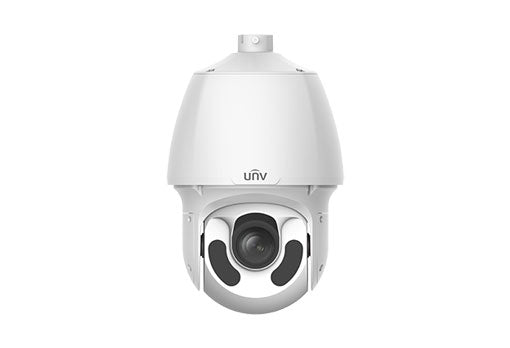

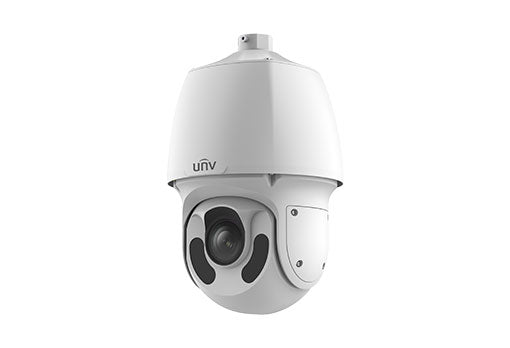

4MP 33X LightHunter Network PTZ Dome Camera
High quality image with 4MP,1/2.8’’ CMOS sensor
2688*1520@30fps in the main stream
Ultra 265, H.265, H.264, MJPEG
33X Optical Zoom
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
Lighthunter technology ensures ultra‑high image quality in low illumination environment
Smart IR, up to 150m (492 ft) IR distance
AC 24V±25%, DC 24V±25% or PoE+(IEEE 802.3at) power supply
Alarm 2 in and 1 out, Audio 1 in and 1 out
IP66 ingress protection
Specification
| Camera | Description |
| Sensor | 1/2.8''CMOS |
| Min. Illumination | Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR |
| Day/Night | IR‑cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >56dB |
| Lens | Description |
| Lens type | 4.5~148.5mm |
| Digital Zoom | 16X |
| Optical Zoom | 33X |
| Iris | F1.5 ~ F4.0 |
| Field of View (H) | 51.4° ~ 2.5° |
| Field of View (V) | 30.3° ~ 1.4° |
| Field of View (D) | 63.2° ~ 3.0° |
| DORI | Description |
| DORI Distance（Lens） | 4.5~148.5(mm) |
| DORI Distance（Detect） | 105.8m~3172.5m(346.9ft~10408.5ft) |
| DORI Distance（Observe） | 42.3m~1269.0m(138.8ft~4163.4ft) |
| DORI Distance（Recognize） | 21.2m~634.5m(69.4ft~2081.7ft) |
| DORI Distance（Identify） | 10.6m~317.3m(34.7ft~1040.8ft) |
| Illuminator | Description |
| Illumination Distance(IR) | 150m |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850nm |
| Image | Description |
| Smart IR | Support |
| White Balance | Auto;Outdoor;Fine Tune;Sodium Lamp;Locked;Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Flip | Normal;Flip Vertical;Flip Horizontal;180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent | Description |
| Exception Detection | Object Removed;Object Left Behind |
| Smart intrusion prevention | Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection |
| People Counting | Support people flow counting and crowd density monitoring |
| Video | Description |
| Video Compression | Ultra 265;H.265;H.264;MJPEG |
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps Sub Stream: 2MP (1920*1080), Max 30fps Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Events | Description |
| Auto Tracking | Support |
| Basic Detection | Motion detection;Audio detection;Tampering alarm |
| General Function | Watermark;IP Address Filtering;Access Policy;ARP Protection;RTSP Authentication;User Authentication;Alarm input;Alarm output |
| Audio | Description |
| Audio Compression | G.711U;G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | Description |
| Edge Storage | Micro SD，up to 256 GB |
| Network Storage | ANR;NAS(NFS) |
| Network | Description |
| Protocols | IPv4;IPv6;IGMP;RTP;SMTP;ARP;TCP;UDP;DHCP;PPPoE;RTSP;RTCP;RTMP;DNS;DDNS;NTP;FTP;UPnP;HTTP;HTTPS;802.1x;SNMP;QoS;SSL/TLS;ICMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T);API;SDK |
| User/Host | Up to 32 users. 3 user levels: administrator,common user and operator |
| Security | Password protection;Strong password;HTTPS encryption;Export operation logs;Basic and digest authentication for RTSP;Digest authentication for HTTP;TLS 1.2;WSSE and digest authentication for ONVIF |
| Client | EZStation; EZLive;EZView |
| Web Browser | Plug‑in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above |
| Pan/Tilt | Description |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 200°/s |
| Tilt Range | –15° ~ 90° (auto reverse) |
| Tilt Speed | 0.1°/s ~ 200°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s~1800s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Interface | Description |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 * RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base‑TX Ethernet |
| Video Output | 1 BNC |
| Certification | Description |
| EMC | CE‑EMC (EN 55032:2015+A11:2020; EN IEC 61000‑3‑2:2019; EN 61000‑3‑3:2013+A1:2019; EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4‑2014) |
| Safety | CE LVD (EN 62368‑1:2014+A11:2017) UL (UL 62368‑1, 2nd Ed., Issue Date: 2014‑12‑01) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | Description |
| Power | AC 24V±25%, DC 24V±25%, PoE+ (IEEE802.3 at) |
| Power Consumption | Max 25W |
| Power Interface | Wires with cold‑pressed terminal |
| Dimensions | Ø 227 x 384.8 mm(Ø 8.9" x 15.1") |
| Weight | 5.28kg(11.64lb) |
| Working Environment | ‑40℃ ~ 70℃ (‑40°F ~ 158°F), Humidity: ≤95% RH (non‑condensing) |
| Storage Environment | ‑40℃ ~ 70℃ (‑40°F ~ 158°F), Humidity: ≤95% RH (non‑condensing) |
| Surge protection | 6KV |
| Reset button | Support |
