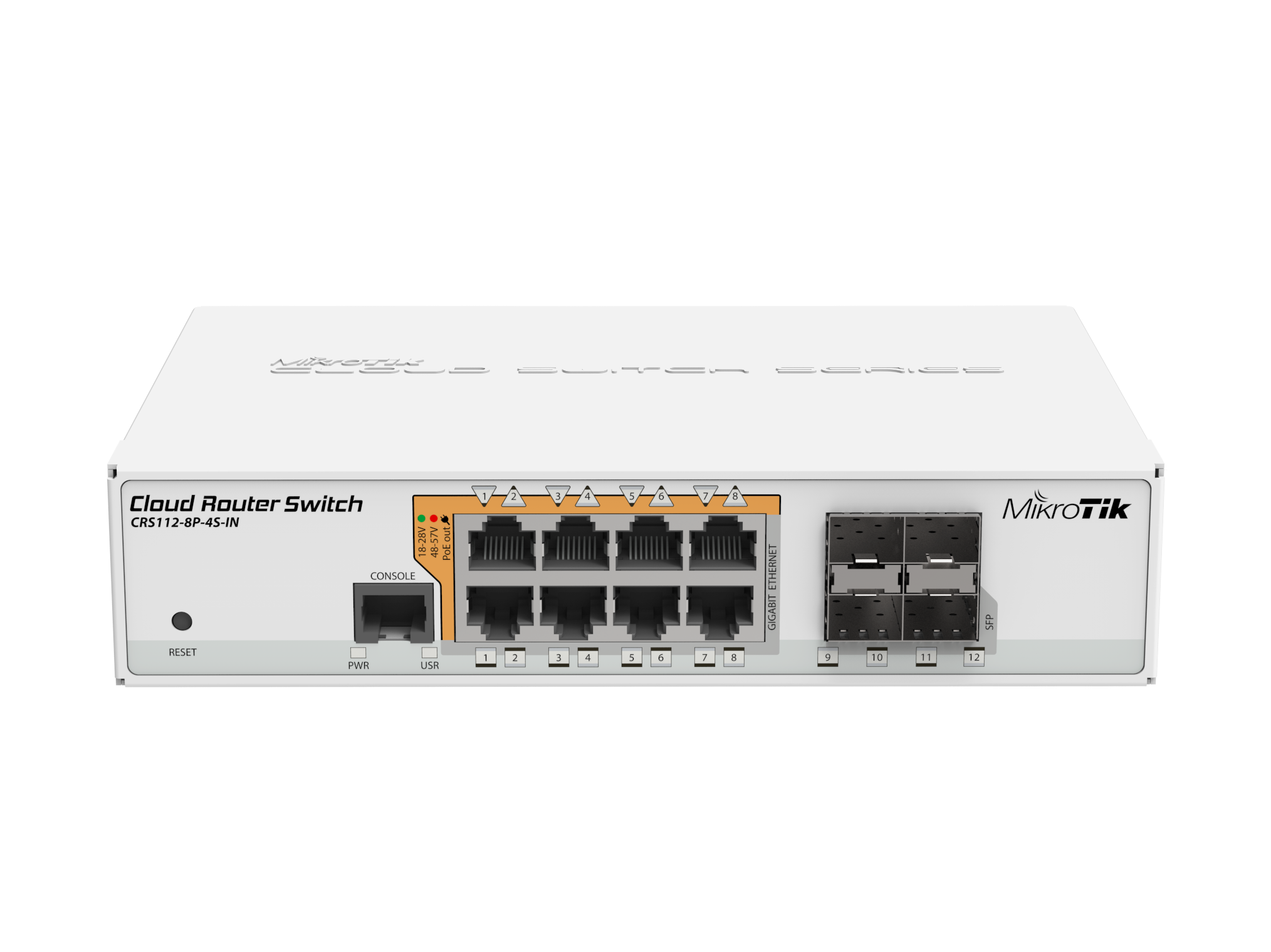

CRS112-8P-4S-IN

Name: CRS112-8P-4S-IN
Brand: MikroTik
Availability: InStock
Rating: 5.0 (10 reviews)

8x Gigabit Ethernet Smart Switch with PoE-out, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5

Contact Now

Description

CRS112-8P-4S-IN: Versatile PoE Switch for Flexible Networking

Unlock Efficient Networking with CRS112-8P-4S-IN

The CRS112-8P-4S-IN is a powerful and flexible switch, offering:

8x Gigabit RJ45 ports with autosensing 802.3af/at PoE/PoE+ and Passive PoE
4x SFP ports for optical fiber connectivity up to 1 Gbps
12 independent switching ports for efficient network management

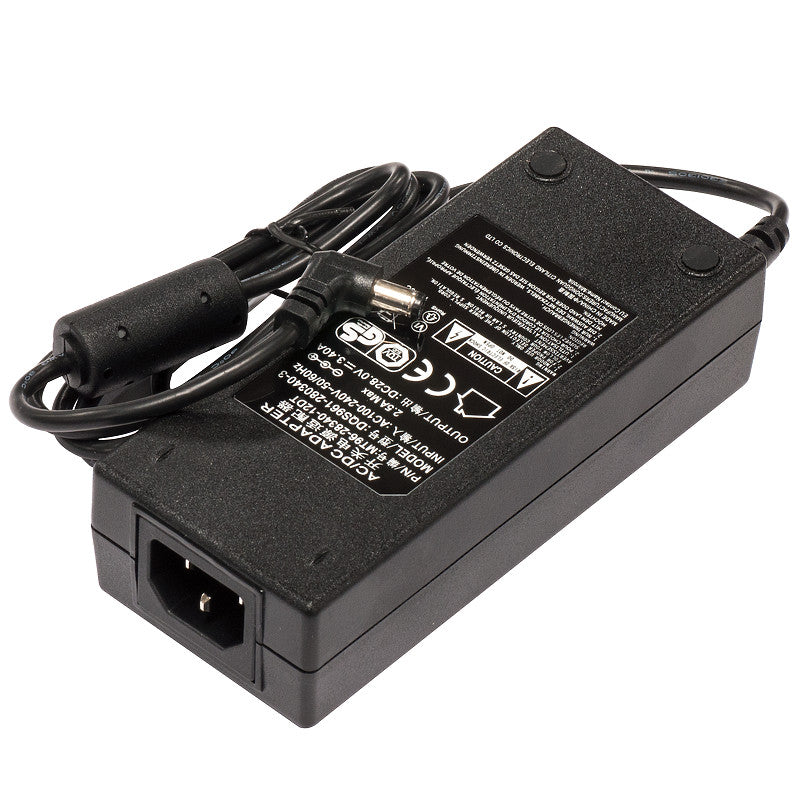

28 V 3.4 A power supply included, with secondary DC jack for 48-57 V power supply (sold separately)
Automatic detection and power supply for 802.3af/at devices with 48-57 V DC input
Max current per port: 1 A (18-28 V), 450 mA (48-57 V); total limit: 2.8A@24V, 1.4A@48-57V
PoE-Out passed over mode B 4,5 (+) and 7,8 (-) pins

Benefits:

Details

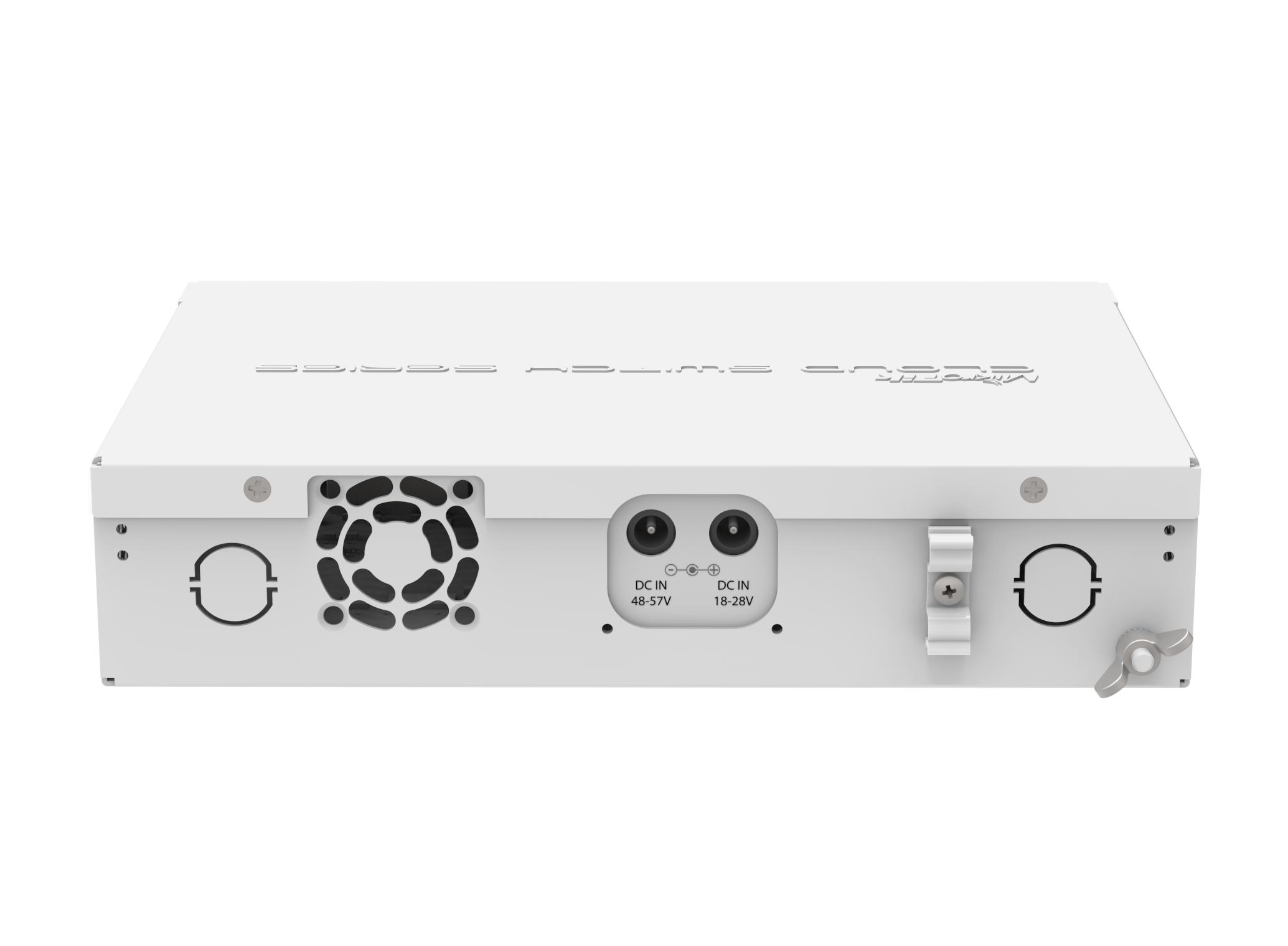

Number of DC inputs	2 (DC jack)
DC jack input Voltage	18-28 V / 48-57 V
Max power consumption	160 W
Max power consumption without attachments	10 W
Cooling type	Passive

Details
PoE-out ports	Ether1-Ether8
PoE out	802.3af/at
Max out per port output (input 18-30 V)	1 A
Max out per port output (input 30-57 V)	450 mA
Max total out (A)	2.8A (18V-28V) & 1.4A (48V-57V) A
