MikroTik

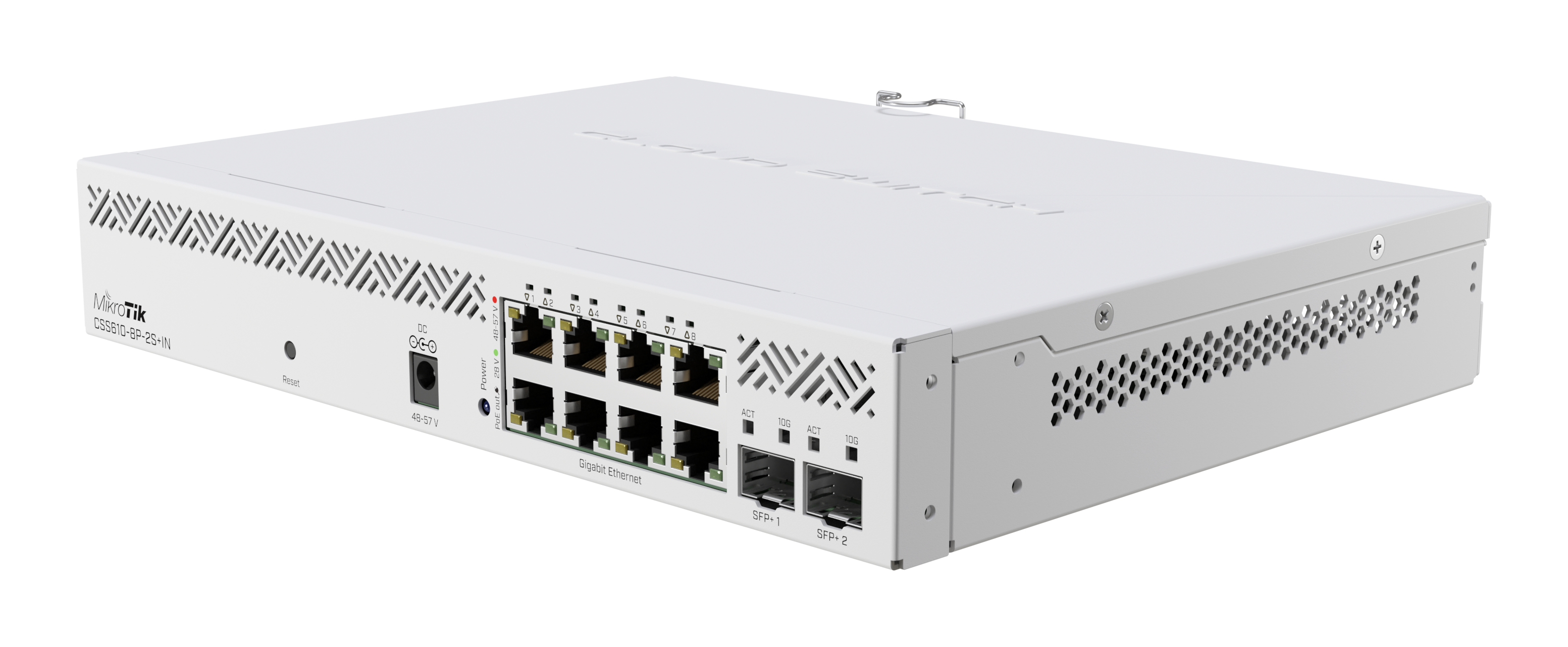

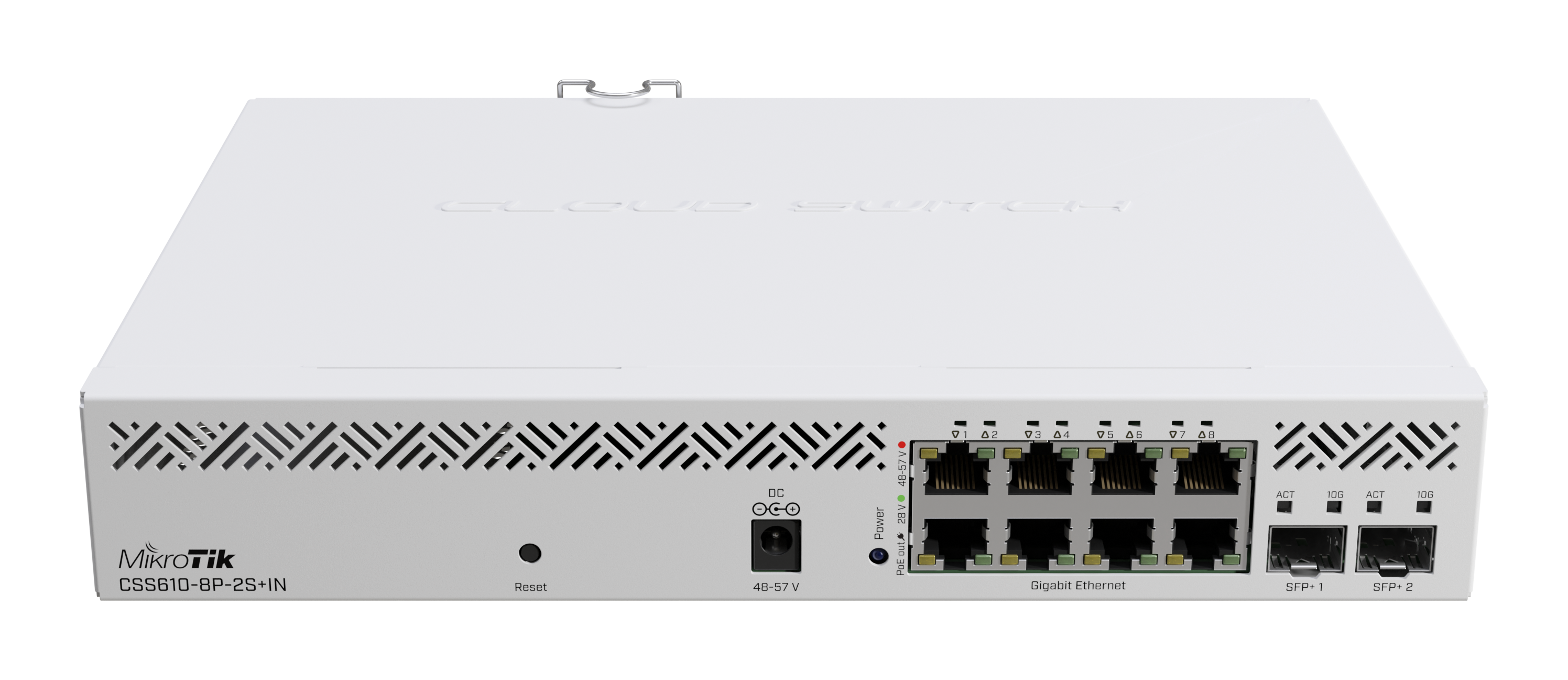

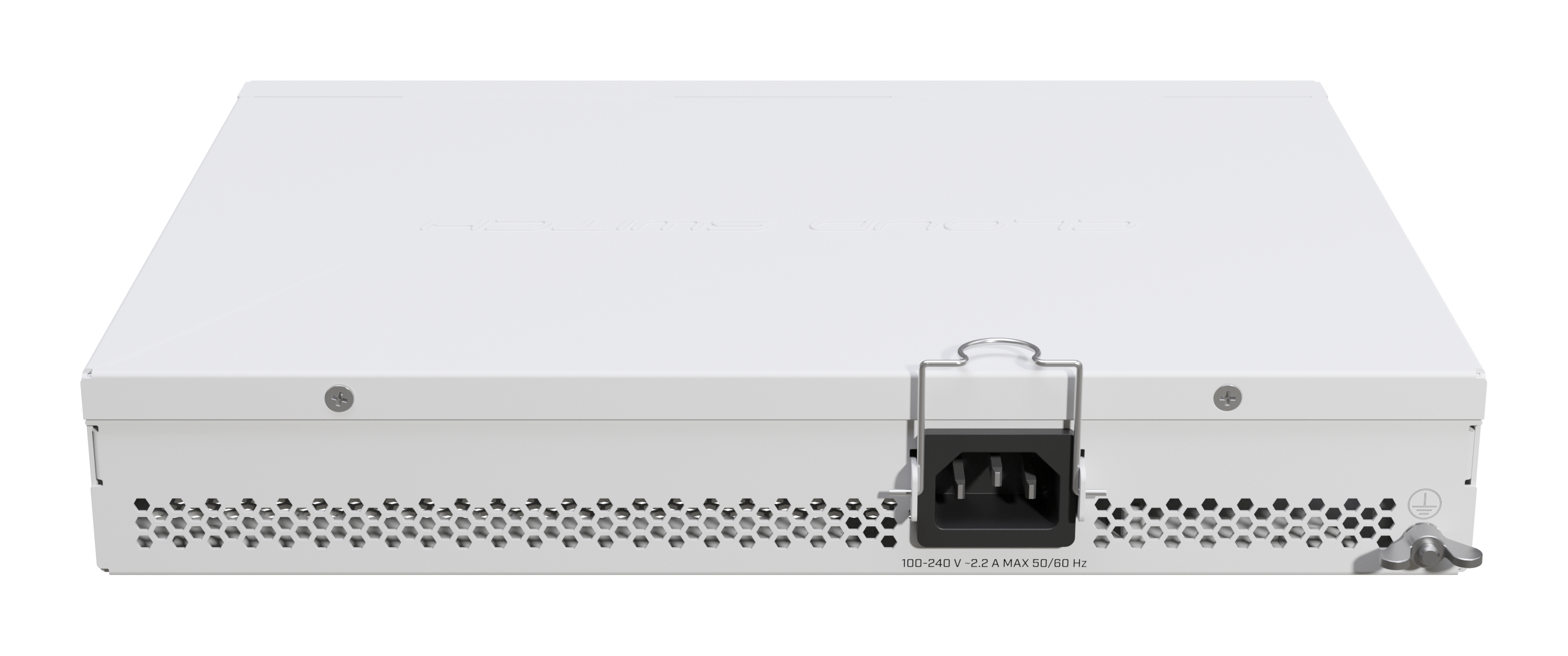

CSS610-8P-2S+IN

Your compact, affordable PoE powerhouse with 8x Gigabit PoE-out ports and 2x 10 Gigabit SFP+ ports
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
  • Description

Description

CSS610-8P-2S+IN: Versatile Switch for Diverse Setups
Unleash Unbelievable Scalability with CSS610-8P-2S+IN
The CSS610-8P-2S+IN switch is a game-changer for various setups, from home networks and small offices to hotels, call centers, and beyond. Its unique combination of size, features, and price offers unparalleled scalability potential.
Key Features:
  • 2x SFP+ ports for 10 Gigabit fiber connectivity
  • 8x Gigabit Ethernet ports with 802.3af/at and passive PoE-out
  • Compact form-factor for easy shipping and handling
  • Lightweight SwOS for effortless configuration
  • Web browser configuration for ease of use
  • Managed switch functionality with advanced features:
    • Port-to-port forwarding
    • Broadcast storm control
    • MAC filtering
    • VLAN configuration
    • Traffic mirroring
    • Bandwidth limitation
    • MAC and IP header field adjustment
PoE-out and SFP+ Combination for Ultimate Flexibility
The CSS610-8P-2S+IN offers a total PoE-out budget of 140 W, making it perfect for demanding scenarios like hotels, conference halls, or call centers. Use PoE-out ports to connect IP phones, network cameras, and wireless access points, while SFP+ ports connect your primary server to the ISP.
Benefits:
  • Unbelievable scalability potential
  • Versatile setup options
  • Easy configuration and management
  • Cost-effective solution
  • Perfect for diverse setups, from home networks to large enterprises

Specifications

Details
Product code CSS610-8P-2S+IN
Switch chip model 88E6193X
Dimensions 272x208x44mm
Operating System SwitchOS Lite
Storage size 64 KB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $229.00

Powering

Details
Number of AC inputs 1
AC input range 100-240
Number of DC inputs 1 (DC jack)
DC jack input Voltage 48-57 V
Frequency (Hz) 47-63
Max power consumption 162 W
Max power consumption without attachments 12 W
Cooling type Passive

PoE-out

Details
PoE-out ports Ether1-Ether8
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1000 mA
Max out per port output (input 30-57 V) 625 mA
Total output power 140

Ethernet

Details
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with PoE-out 8

Fiber

Details
SFP+ ports 2

Other

Details
CPU temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
